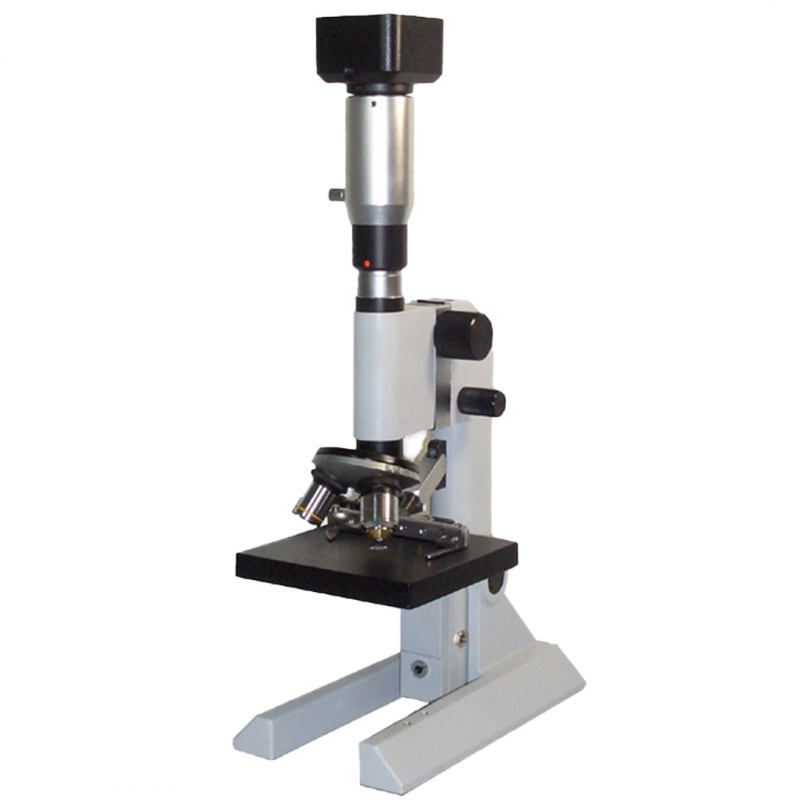

Hydac Measuring Microscope MM-S5-M/M and M-S5-M-U

The HYDAC Measuring Microscope MM-S5-M/M and M-S5-M-U is a robust and user-friendly optical microscope designed for precise particle analysis on filter membranes, particularly in oil sample inspections. Ideal for laboratory and on-site use, it offers high-resolution magnification and stable performance, ensuring accurate measurement and easy operation.

Key Features:

  • Clear Imaging: Achromatic lenses and 10x eyepiece for 40x–200x magnification
  • Easy Adjustment: Coarse/fine focus and LED illumination for sharp viewing
  • Complete Kit: Includes USB camera, software, and transport case

Description
Downloads

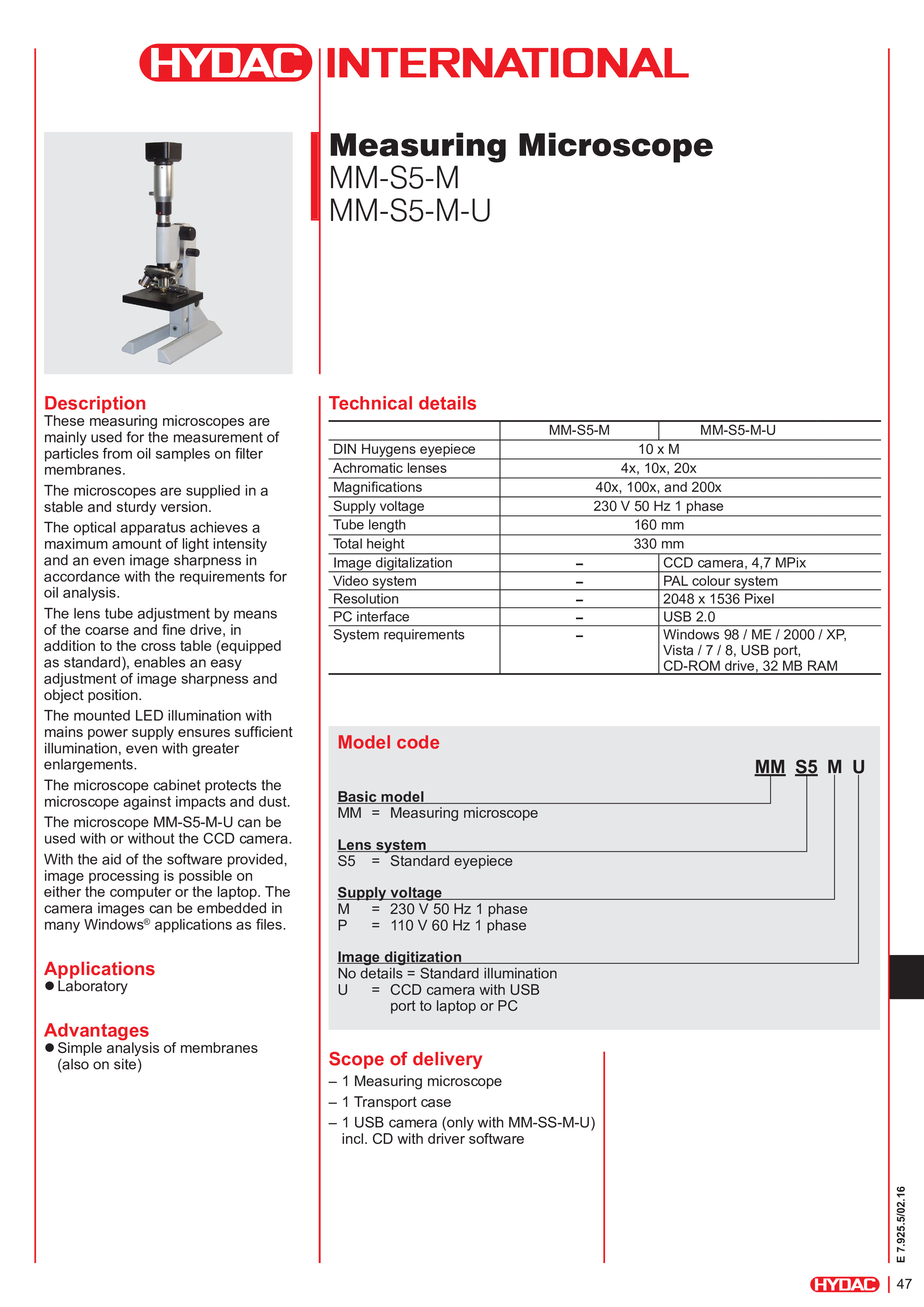

HYDAC Measuring Microscope MM-S5-M/M and M-S5-M-U

  • Huygens eyepiece: 10 x M
  • Achromatic lenses: 4x, 10x, 20x
  • Magnifications: 40x, 100x, and 200x
  • Tube length: 160 mm
  • Total height: 330 mm

Applications:

  • Laboratories

Advantages:

  • Simple inspection of diaphragms (including onsite)

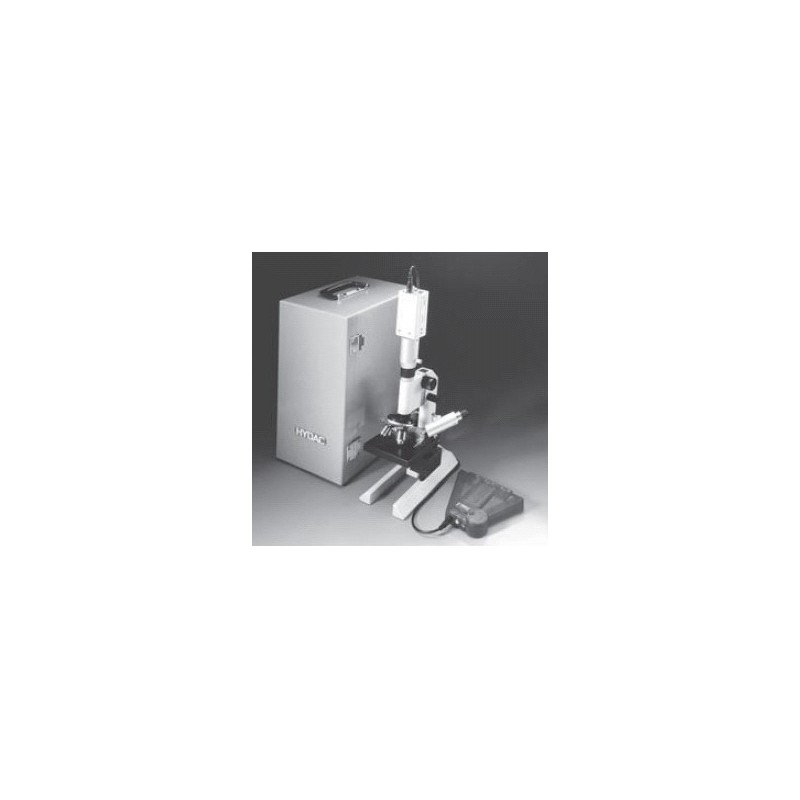

Items supplied:

  • 1 Measuring microscope
  • 1 USB camera incl. CD with driver software
  • 1 Transport case

General Function:

This measurement microscope is used mainly for the measurement of particles from oil samples on filter membranes. The microscope is stable and robust in design and is convenient to use. The lens tube adjustment is accomplished by means of a gentle coarse drive movement and a fine drive, in order that optimum sharpness can be guaranteed at maximum enlargement.
The mounted LED illumination with mains power supply ensures sufficient illumination, even with 200x enlargements. The tripod is equipped with a 3-part Knurled object lens revolver and attachable cross table.
