Fluid Service Products

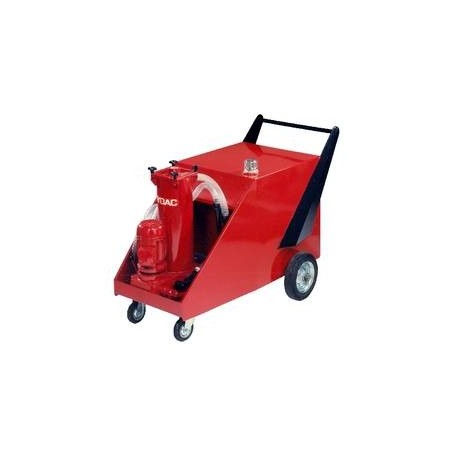

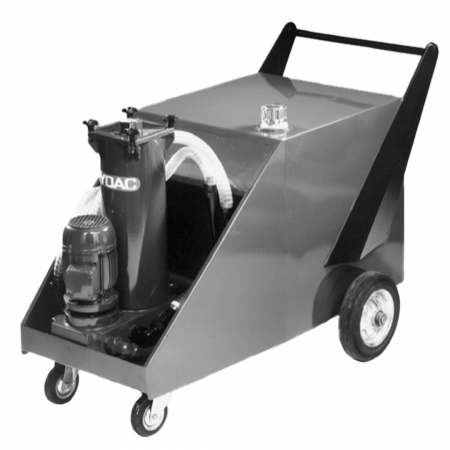

The HYDAC Mobile Oil Transport and Filtration Unit TW 5 is a compact, mobile solution for safe oil transport and efficient filtration during filling or repumping operations. With a 200 L integrated tank and flow rates up to 40 L/min, it supports clean, reliable servicing of hydraulic and lubrication systems across various industries.

Key Features:

• Tank size: 200 l
• Flow rate: max. 30 l/min / 40 l/min
• Operating pressure: max. 4.5 bar
• Pump type: Vane pump

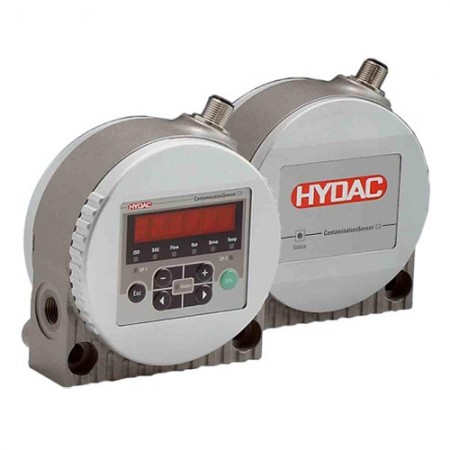

The HYDAC Contamination Sensor CS 1000 Series offers continuous monitoring of particle contamination in hydraulic and lubrication fluids, with selectable ISO, SAE, or NAS cleanliness codes. Compact and robust, it supports condition-based maintenance and features a FREEZE function to display the last 20 readings, ideal for industrial and mobile applications.

Key Features:

• Operating pressure: max. 300 bar
• Viscosity range: 1 ... 1000 mm²/s
• Media temperature range: 0 ... +85°C, +32 ... +185°F
• Measurement flow rate: 30 ... 300 ml/min

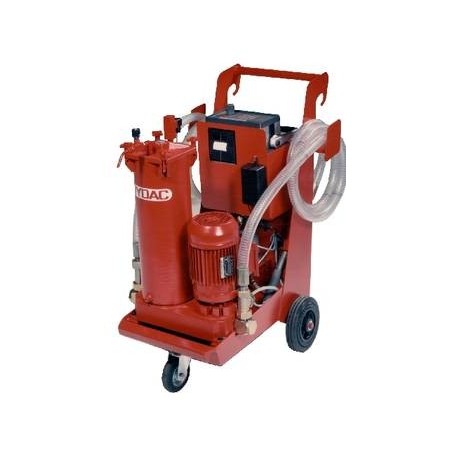

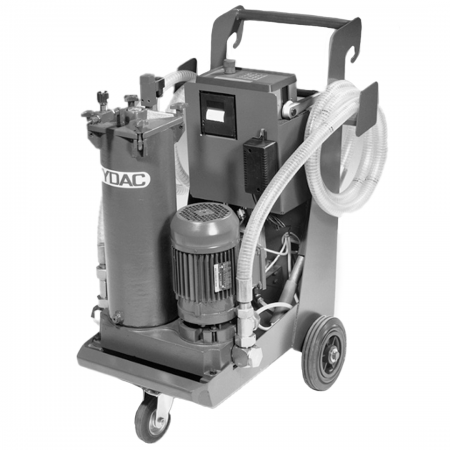

The HYDAC Filtromat OF 5 with integrated FCU is a mobile filtration unit designed for filling, emptying, and offline filtration of hydraulic and lubrication oils. With a flow rate of up to 40 L/min, it ensures effective particle removal while simultaneously monitoring contamination levels via the built-in FluidControl Unit FCU 2000.

Key Features:

• Flow rate: max. 40 l/min
• Operating pressure: 4.5 bar

The HYDAC Contamination Sensor CS 2000 Series is a high-precision stationary sensor designed for continuous monitoring of particle contamination in hydraulic and lubrication systems. With a fluid temperature range of 0 to +70 °C and flow rates from 10 to 200 ml/min, it offers advanced electronic and hydraulic compensation for pressure and viscosity fluctuations, making it ideal for critical applications requiring reliable, real-time contamination trend analysis.

Key Features:

• Fluid temperature range: 0 ... +70 °C, +32 ... +185°F
• Measurement flow rate: 10 ... 200 ml/min
• Supply voltage: 24 V DC, ± 25%

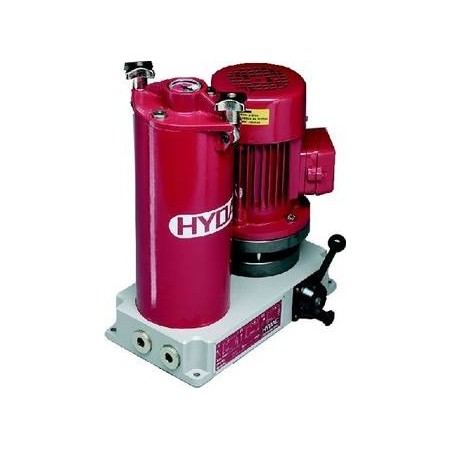

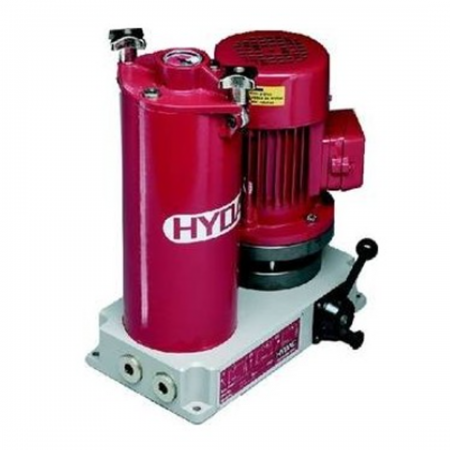

The HYDAC Filtromat OF 5 mini is a compact, stationary fluid care unit for bypass filtration, ideal for filling, repumping, and emptying hydraulic and lubrication systems. With a flow rate of up to 15 L/min, it delivers reliable oil cleanliness in a space-saving design.

Key Features:

• Flow rate: max. 15 l/min
• Operating pressure: max. 4.5 bar
• Convenient filtration in bypass flow

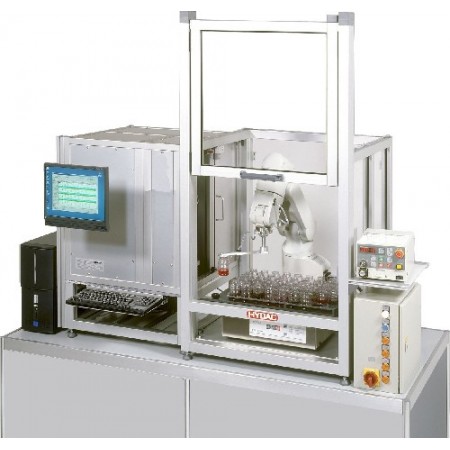

The HYDAC ALPC 9000 is a fully automatic particle counter for hydraulic and lubrication oils, offering fast, accurate analysis with minimal sample volume. Designed for labs, it supports up to 500 samples per day with ISO-calibrated precision and optional robotic automation.

Key Features:

• Sensor flow rate: 30 ml/min
• Permitted viscosity range: 1 ... 320 mm2 / s
• Measurement range (calibrated): ISO 0/0/0 ... 23/21/18

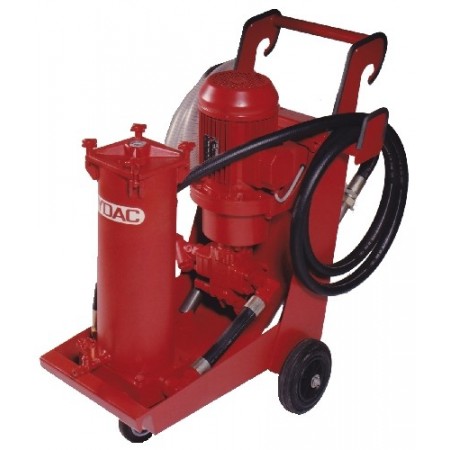

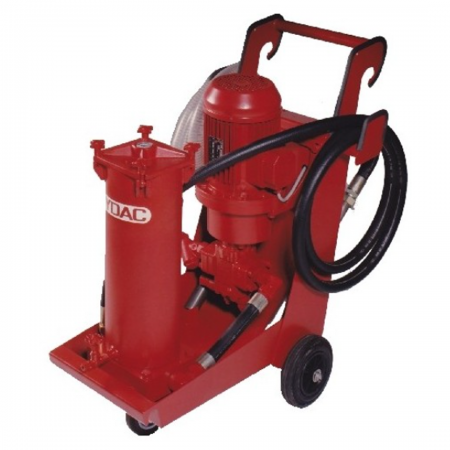

The HYDAC Filter Pump Transfer Unit OFU is a powerful mobile oil servicing unit designed for efficient filtration during filling and repumping of hydraulic and lubrication oils. With a flow rate of up to 100 L/min and operating pressure up to 10 bar, it ensures high-performance fluid care across various industrial applications.

Key Features:

• Flow rate: max. 100 l/min
• Operating pressure: max. 10 bar

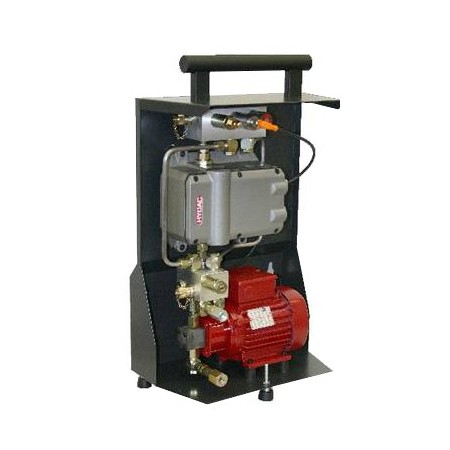

The HYDAC CSM 2000 Series is a compact online condition monitoring system for real-time detection of solid particle contamination in hydraulic and lubrication fluids. With integrated air bubble suppression and optional AquaSensor, it ensures accurate, reliable monitoring for proactive maintenance and system diagnostics.

Key Features:

• Total flow rate (standard pump) ≈ 100 ml/min
• Total flow rate (pump, primary pressure stability ) ≈ 180 ml/min
• Permitted pressure at output 5 bar max

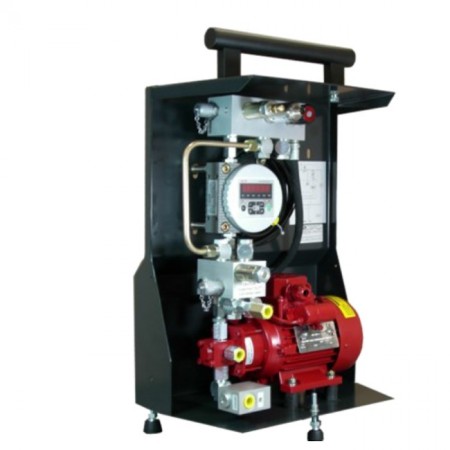

The HYDAC CSM1320-2-1-W/N/X60/O60/-AS is a compact online sensor module for continuous monitoring of particle and water contamination in hydraulic and lubrication fluids. With a built-in gear pump and AquaSensor AS 1000, it’s ideal for proactive maintenance in industrial systems.

Key Features:

• Total flow rate: ≈ 180 ml/min
• Permitted outlet pressure: 5 bar max
• AS = with AquaSensor AS 1000
• Pump type: Gear pump

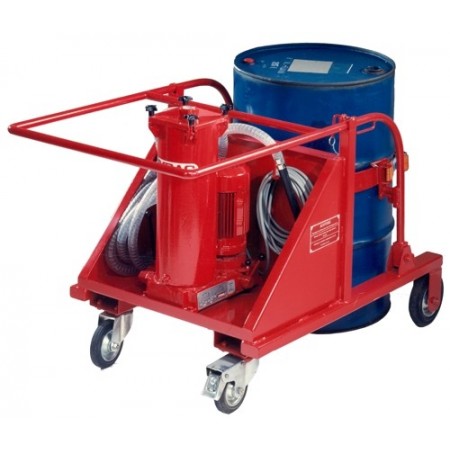

The HYDAC FT 5 is a mobile unit for transporting 200 L oil barrels and filtering hydraulic or lubrication oils at up to 40 l/min. It ensures clean filling, easy handling, and reduced system downtime.

Key Features:

• Flow rate: max. 30 l/min / 40 l/min
• Operating pressure: 4.5 bar
• Convenient filtration in bypass flow

The HYDAC CSM1320-2-1-W/N/X60/O60/ is a compact, online monitoring system for continuous measurement of particle contamination in hydraulic and lubrication fluids. Featuring a gear pump, rotatable display, and air bubble suppression, it enables reliable oil cleanliness monitoring for proactive maintenance in industrial applications.

Key Features:

• Total flow rate: ≈ 180 ml/min
• Permitted outlet pressure: 5 bar max

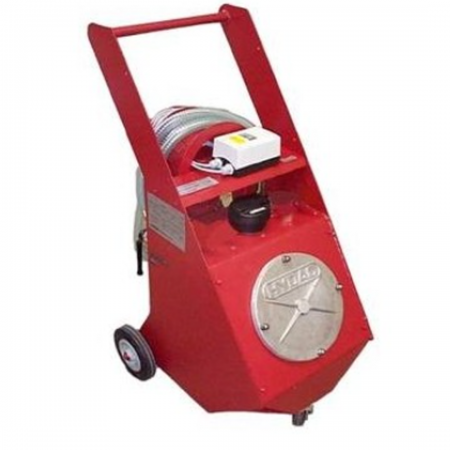

The HYDAC Fluid Carrier Compact (FCC) is a mobile unit for safe, filtered filling and transport of up to 70 L of oil, ideal for servicing smaller systems. With a flow rate of up to 15 l/min and optional monitoring tools, it ensures clean oil top-ups, reduces downtime, and supports TPM practices.

Key Features:

• Flow rate: max. 15 l/min
• Operating pressure: 3.5 bar
• Viscosity range: 15 ...1000 mm²/s
