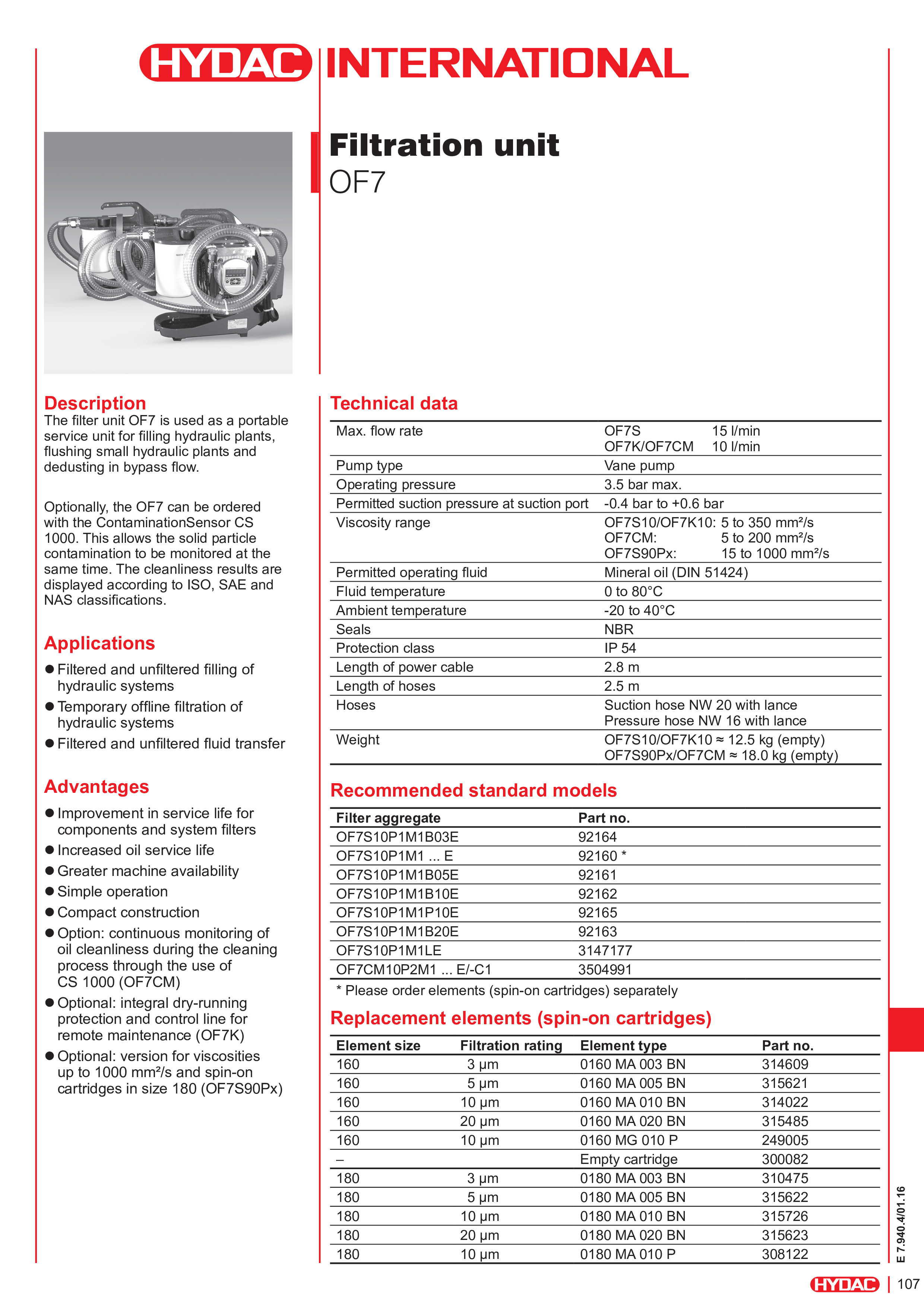

Hydac Portable Filtration Unit OF 7
The filter unit OF7 has now been replaced by the Hydac Mobile Filter Unit MFU-15
- Filter fineness: 3 µm to 20 µm
- Flow rate: OF7S 15 l/min - OF7K/OF7CM 10 l/min
- Operating pressure: 3.5 bar max.
Description
Downloads
Hydac Portable Filtration Unit OF 7
- Filter fineness: 3 µm to 20 µm
- Flow rate: OF7S 15 l/min - OF7K/OF7CM 10 l/min
- Operating pressure: 3.5 bar max.
Features
- Alternating current, direct current or compressed air drive
- Improvement of component and filter service life
- Increased oil service life
- Simple element replacement through Spin-On cartridges
- Greater machine availability
- Simple handling
- Compact construction
- Option: continuous monitoring of oil cleanliness during dedusting by means of CS 1000
Applications:
- Filtered and unfiltered filling of hydraulic systems
- Temporary offline filtration of hydraulic systems
- Filtered and unfiltered fluid transfer
Advantages:
- Improvement in service life for components and system filters
- Increased oil service life
- Greater machine availability
- Simple operation
- Compact construction
- Option: continuous monitoring of oil cleanliness during the cleaning process through the use of CS 1000 (OF7CM)
- Optional: integral dry-running protection and control line for remote maintenance (OF7K)
- Optional: version for viscosities up to 1000 mm²/s and spin-on cartridges in size 180 (OF7S90Px)
General Function:
The filter unit OF7 is used as a portable service unit for filling hydraulic plants, flushing small hydraulic plants and dedusting in bypass flow.
Optionally, the OF7 can be ordered with the ContaminationSensor CS 1000. This allows the solid particle contamination to be monitored at the same time. The cleanliness results are displayed according to ISO, SAE and NAS classifications.
