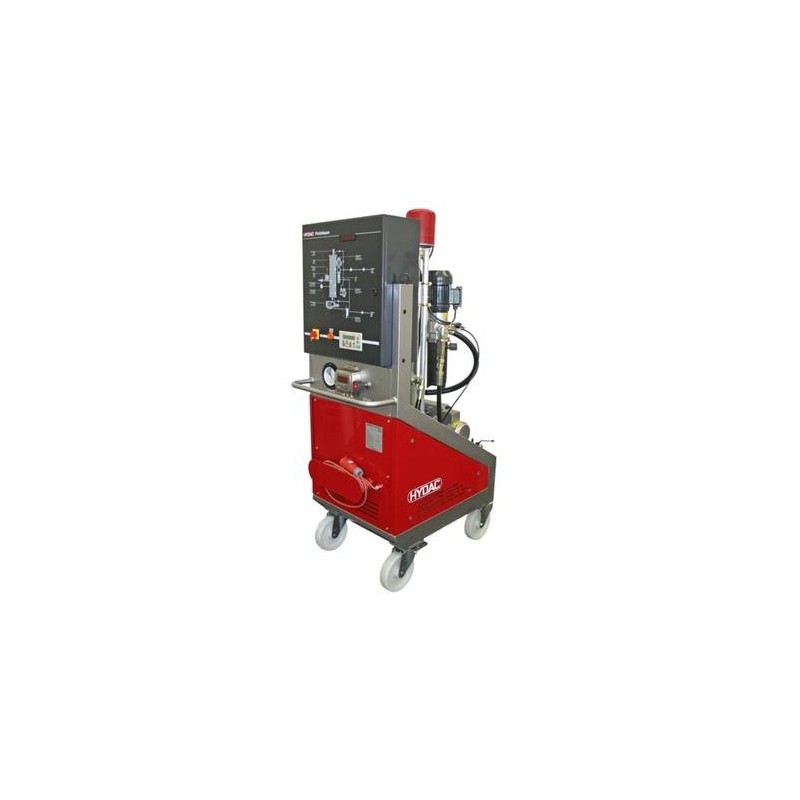

Hydac Dewatering and Filtration Unit FluidAqua Mobil FAM 10
The units of the FluidAqua Mobil FAM 10 series work in accordance with the principle of vacuum dewatering for the separation of free and released water and of free and dissolved gases from hydraulic and lubrication fluids
- Viscosity range: 15 ... 800 mm²/s
- Flow rates at 50 Hz ≈ 10 l/min (FAM-10), ≈ 15 l/min (FAM-10/15)
- Flow rates at 60 Hz ≈ 12 l/min (FAM-10), ≈ 18 l/min (FAM-10/15)
Hydac Dewatering and Filtration Unit FluidAqua Mobil FAM 10
- Viscosity range: 15 ... 800 mm²/s
- Contamination retention capacity in accordance with ISO 4572: 200 g
- Flow rates at 50 Hz ≈ 10 l/min (FAM-10), ≈ 15 l/min (FAM-10/15)
- Flow rates at 60 Hz ≈ 12 l/min (FAM-10), ≈ 18 l/min (FAM-10/15)
- The lowest or residual water contents, gas contents and particulate contamination of the operating fluid lead to:
- Longer oil replacement intervals
- Improved component service life duration
- Higher machine availability
- Reduction of Life Cycle Cost (LCC)
Items supplied:
- FluidAqua Mobil, ready-for-connection
- Suction and pressure hoses supplied with mobile version
- Key, square 8 mm (for cover panel)
- Pass key for switch cabinet
- Vacuum pump oil (1 litre) for initial filling of vacuum pump
- Technical documentation consisting of:
- Operating and Maintenance Manual
- Electrical circuit diagram
- Test certificate
- CE conformity declaration
General Function:
The units of the FluidAqua Mobil FAM 10 series work in accordance with the principle of vacuum dewatering for the separation of free and released water and of free and dissolved gases from hydraulic and lubrication fluids. Thanks to the HYDAC bypass filter element technology with high contamination retention capacity and separation capacity, the units achieve a very high economic efficiency.
All of the units can be optionally furnished and also controlled with measuring technology for continuous monitoring of the water content and the solid particle contamination. An integrated heater for increasing the dewatering performance is available as an option.
Simple and safe handling is ensured, thanks to the programmable-memory control (PLC) of the Siemens S7 series which is used in combination with a Siemens operating panel in various national languages.
