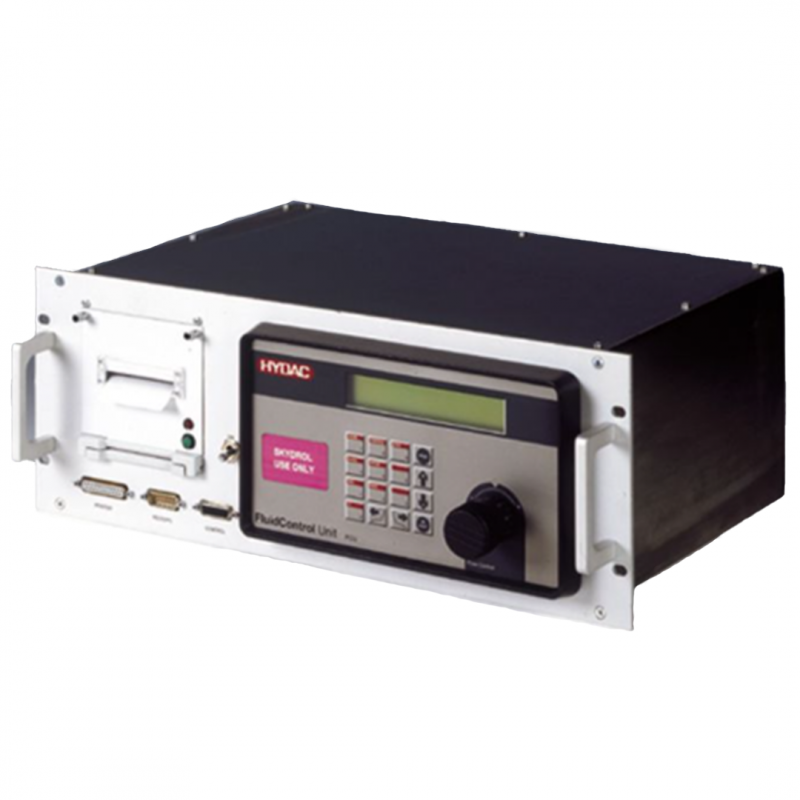

Hydac Fluid Control Units FCU 2000 Series 19"
The HYDAC FCU 2000 Series 19" Fluid Control Unit is a panel-mounted particle counter designed to monitor contamination levels in hydraulic and lubrication systems. Utilizing infrared technology, it provides precise cleanliness readings in accordance with ISO 4406, SAE 4059, and NAS 1638 standards, with easy data output via display or PC connection.
Key Features:
- Accurate particle contamination measurement using infrared technology
- Real-time data output with integrated graphics-capable printer and PC interface (RS232/RS485)
- Robust design with total flow rates from 50 to 800 ml/min (pressure-dependent)
Description
Downloads
HYDAC Fluid Control Units FCU 2000 Series 19"
- Measurement range (calibrated): ISO 12/10/9 ... 23/21/18
- Total flow rate: 50 ... 800 ml/min (depending on the pressure)
- Robust design
- Cleanliness classes in accordance with ISO 4406, SAE 4059 and NAS 1638
- integrated, graphics-capable print
- Data output in the display or connection to a PC
- RS232 or RS485 interface
Applications:
- Hydraulic and lubrication systems
Items supplied:
- FCU
- Power supply cable
- Operating Instructions
- Calibration certificate
- PC software package FluMoS Light
- Applications:
- Hydraulic and lubrication systems
General Function:
The FluidControl Unit FCU 2000 for 19" Panel Mounting is designed for measuring particle contamination in hydraulic and lubrication systems. The measurement values are recorded by means of infrared technology and output in accordance with ISO 4406, SAE 4059 and NAS 1638.
