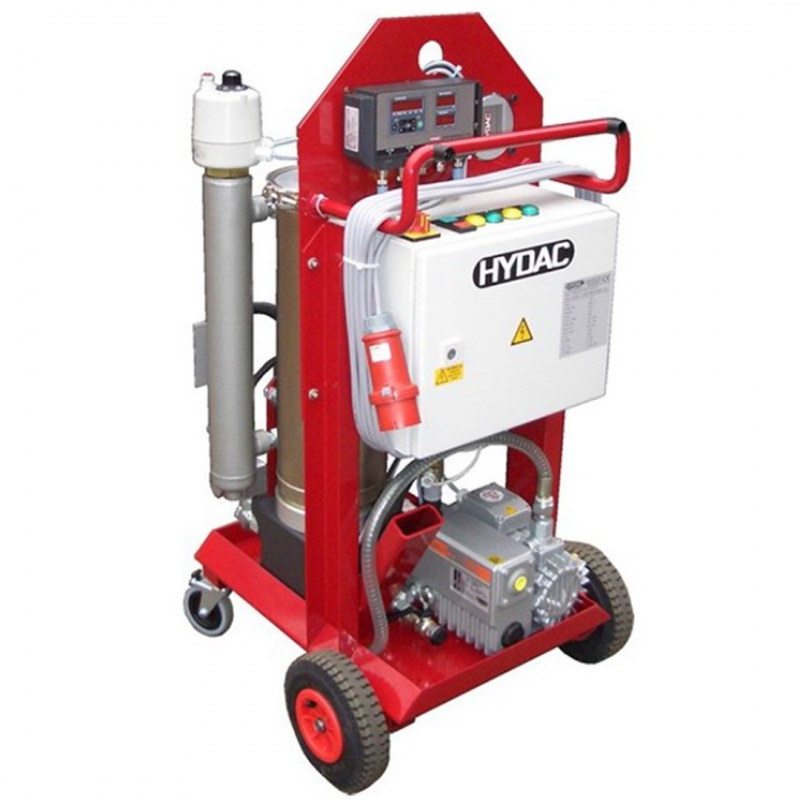

Hydac FluidAqua Mobil Type FAM-5-M-2-B-05-R-H-B-AD-1

Hydac FluidAqua Mobil FAM 5

The Hydac FluidAqua Mobil FAM 5 is designed for dewatering, degassing and filtering hydraulic and lubrication fluids

  • Flow rate at 50 Hz: 5 l/min
  • Operating pressure: 0 … 8 bar
  • Voltage: 415v

Description
Downloads

Hydac FluidAqua Mobil FAM 5

  • Flow rate at 50 Hz: 5 l/min
  • Operating pressure: 0 … 8 bar
  • Mechanical type: Mobile (with castors and connection hoses)
  • Voltage: 415v
  • Filter size of fine filter: OLF5
  • Type of vacuum pump: Rotary vane vacuum pump
  • Measuring equipment: AquaSensor 3000, with display directly on the sensor, without control function

Features:

  • Small, compact and easy-to-use unit for prompt deployment during service calls or emergencies
  • Reliable and convenient for fixed and permanent use due to extensive monitoring functions
  • Optional integrated heater to increase dewatering performance, especially for cold or high viscosity oils
  • Optional integrated water content and particle measurement technology with continuous display of the measurements and storage of the values
  • Very low residual water content, gas content and particle contamination result in longer oil change intervals, improved life expectancy of components, higher machine availability and as a result, a reduction in the Life Cycle Cost (LCC)

Items supplied:

  • FluidAqua Mobil
  • With suction and return hose
  • 1 litre vacuum pump oil for initial filling of vacuum pump
  • Control cabinet key
  • Technical documentation

General Function:

The FluidAqua Mobil FAM 5 is designed for dewatering, degassing and filtering hydraulic and lubrication fluids. Its compact and mobile design makes it ideally suited for service work. By using HYDAC Dimicron filter technology which has a high contamination retention capacity and filtration efficiency, the FAM 5 is extremely cost effective.
Its compact and mobile design makes it ideally suited for service work. The version designed for permanent installation provides continuous protection for applications where operating fluids require optimal conditioning, where valuable bio-oils or fire-resistant operating fluids are used, or where water frequently gets into the system.


For product pricing, delivery, technical support or associated services CONTACT HYQUIP
You can also call our sales office +44 (0)1204 699959
