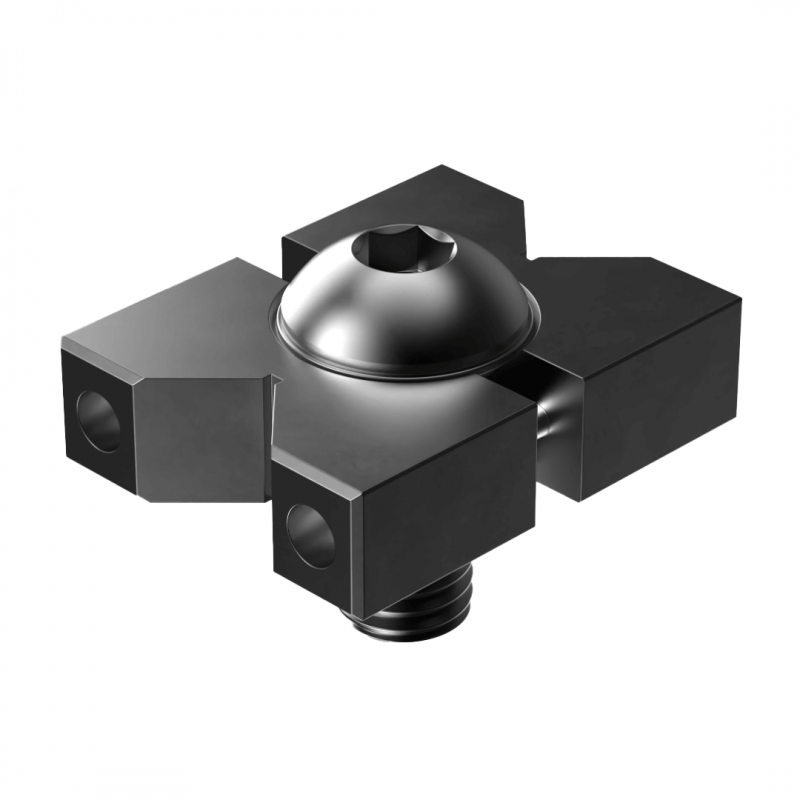

Carr Lane Tiny Vise™ Double Edge Clamps - Double V Jaws
Its V-jaw feature allows for clamping rectangular workpieces from two directions using a single clamp at its corner. The Tiny Vise® Double Edge Clamps are designed to hold two workpieces simultaneously with equal force. Its design offers strong, reliable clamping with just a turn of a hex wrench. These compact clamps are ideal for fixturing multiple parts of any size. The clamps can be configured to apply force either downward or horizontally. These are available in four sizes, from 5/16-18 to 1"-8 thread size with 4000 lbs clamping force (M8 to M24 in metric).
- Downthrust and Horizontal Force
- Available in four sizes
| Part Number | Material Number | Metric or Imperial | Jaw Type | Approx. Clamping Force in TRQ (lbs) | Clamp Type | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-80-TVR | Metric | Double V Jaws for Horizontal Force | 2,100 | A Thread - M12 B - .500 Maximum Travel - .114 | £92.34 £110.81 Inc. VAT |
|
|
| CLM-100-TVR | Metric | Double V Jaws for Downthrust Force | 4,000 | A Thread - M16 B - .625 Maximum Travel - .120 | £105.52 £126.62 Inc. VAT |
|
|
| CLM-160-TVR | Metric | Double V Jaws for Horizontal Force | 12,000 | A Thread - M24 B - 1.000 Maximum Travel - .138 | £142.00 £170.40 Inc. VAT |
|
|
| CLM-50-TVR | Metric | Double V Jaws for Horizontal Force | 1,500 | A Thread - M8 B - .375 Maximum Travel - .096 | £81.72 £98.06 Inc. VAT |
|
|
| CLM-60-TVR | Metric | Double V Jaws for Downthrust Force | 1,800 | A Thread - M10 B - .438 Maximum Travel - .105 | £91.16 £109.39 Inc. VAT |
|
|
| CLM-80-TVR | Metric | Double V Jaws for Downthrust Force | 4,000 | A Thread - M12 B - .500 Maximum Travel - .114 | £92.34 £110.81 Inc. VAT |
|
|
| CLM-100-TVR | Metric | Double V Jaws for Horizontal Force | 4,000 | A Thread - M16 B - .625 Maximum Travel - .120 | £105.52 £126.62 Inc. VAT |
|
|
| CLM-160-TVR | Metric | Double V Jaws for Downthrust Force | 12,000 | A Thread - M24 B - 1.000 Maximum Travel - .138 | £142.00 £170.40 Inc. VAT |
|
|
| CLM-50-TVR | Metric | Double V Jaws for Downthrust Force | 1,500 | A Thread - M8 B - .375 Maximum Travel - .096 | £81.72 £98.06 Inc. VAT |
|
|
| CLM-60-TVR | Metric | Double V Jaws for Horizontal Force | 1,800 | A Thread - M10 B - .438 Maximum Travel - .105 | £91.16 £109.39 Inc. VAT |
|
Carr Lane Tiny Vise™ Double Edge Clamps - Double V Jaws
Its V-jaw feature allows for clamping rectangular workpieces from two directions using a single clamp at its corner. The Tiny Vise® Double Edge Clamps are designed to hold two workpieces simultaneously with equal force. Its design offers strong, reliable clamping with just a turn of a hex wrench. These compact clamps are ideal for fixturing multiple parts of any size. The clamps can be configured to apply force either downward or horizontally. These are available in four sizes, from 5/16-18 to 1"-8 thread size with 4000 lbs clamping force (M8 to M24 in metric).
- Downthrust and Horizontal Force
- Available in four sizes
