Parallel Boosters

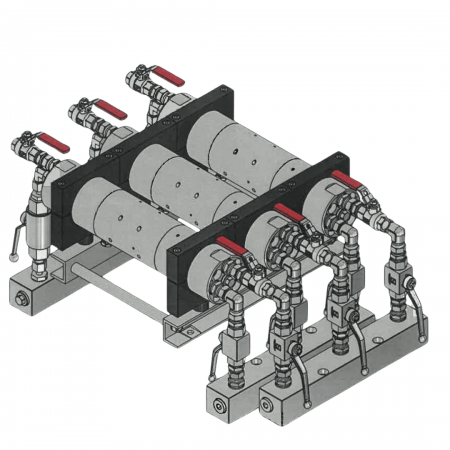

The P3W-HC6D2W is a dual media miniBOOSTER stainless steel 316L unit which is capable of delivering up to 84.3 l/min flow on the high-pressure end. Like other miniBOOSTER models, the P3W-HC6D2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P3W-HC6D2W is a compact unit weighing 130.0 kg.

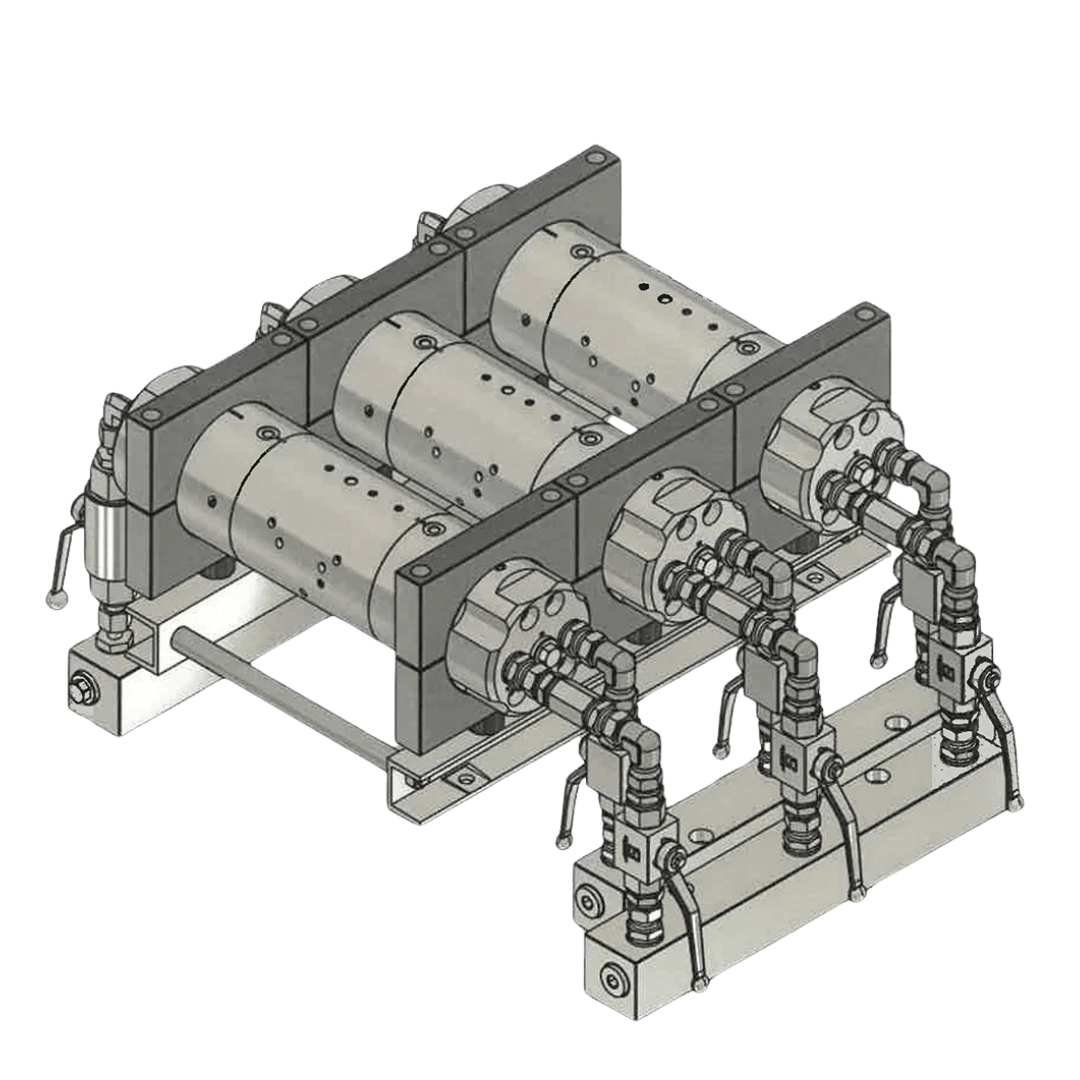

The P3W-HC6DW is a high flow dual-acting miniBOOSTER stainless steel 316L unit which is capable of delivering up to 115.0 l/min flow on the high-pressure end. Like other miniBOOSTER models, the P3W-HC6DW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P3W-HC6DW is a compact unit weighing 160.0 kg.

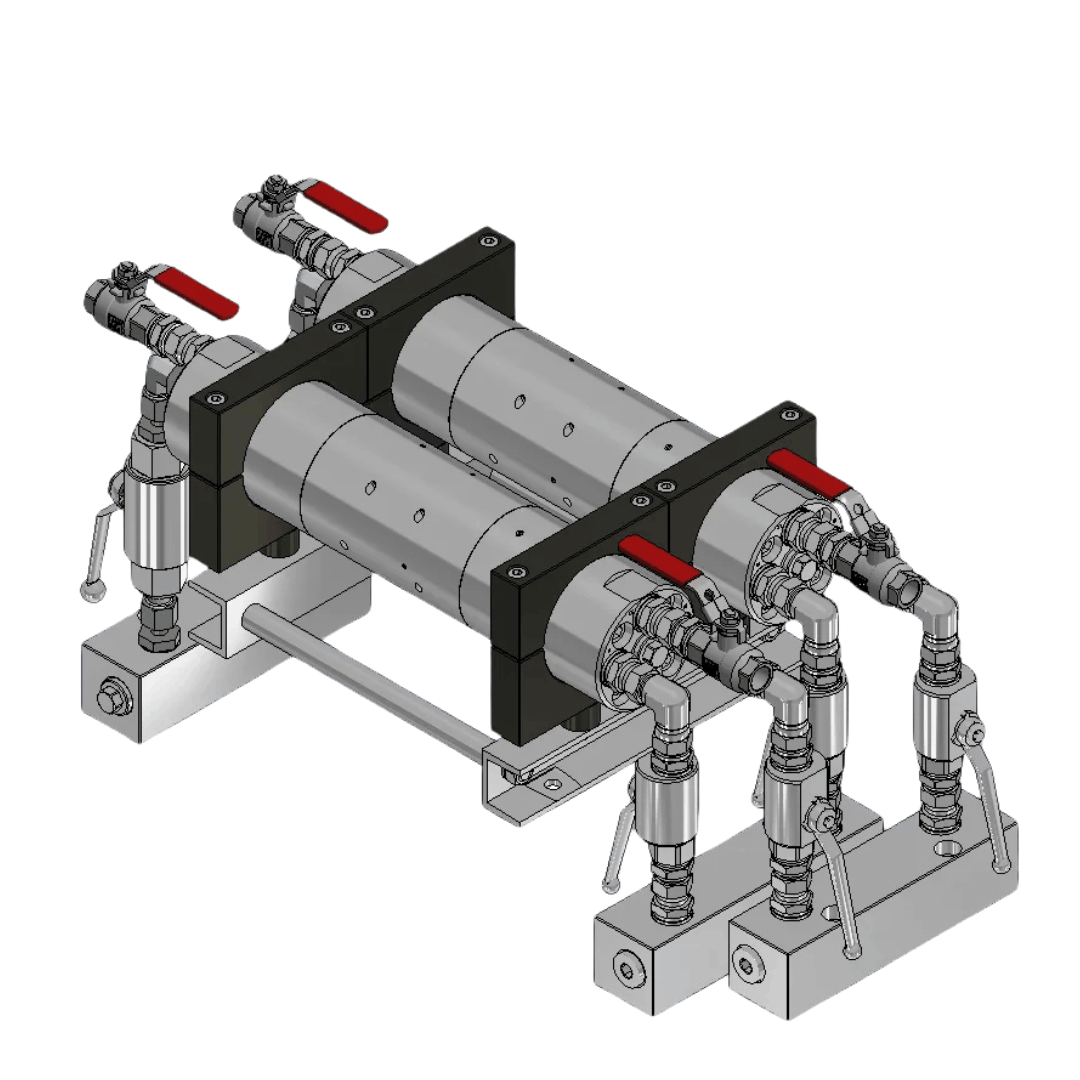

The P2W-HC6D2W is a dual media miniBOOSTER stainless steel 316L unit which is capable of delivering up to 56.2 l/min flow on the high-pressure end. Like other miniBOOSTER models, the P2W-HC6D2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P2W-HC6D2W is a compact unit weighing 82.0 kg.

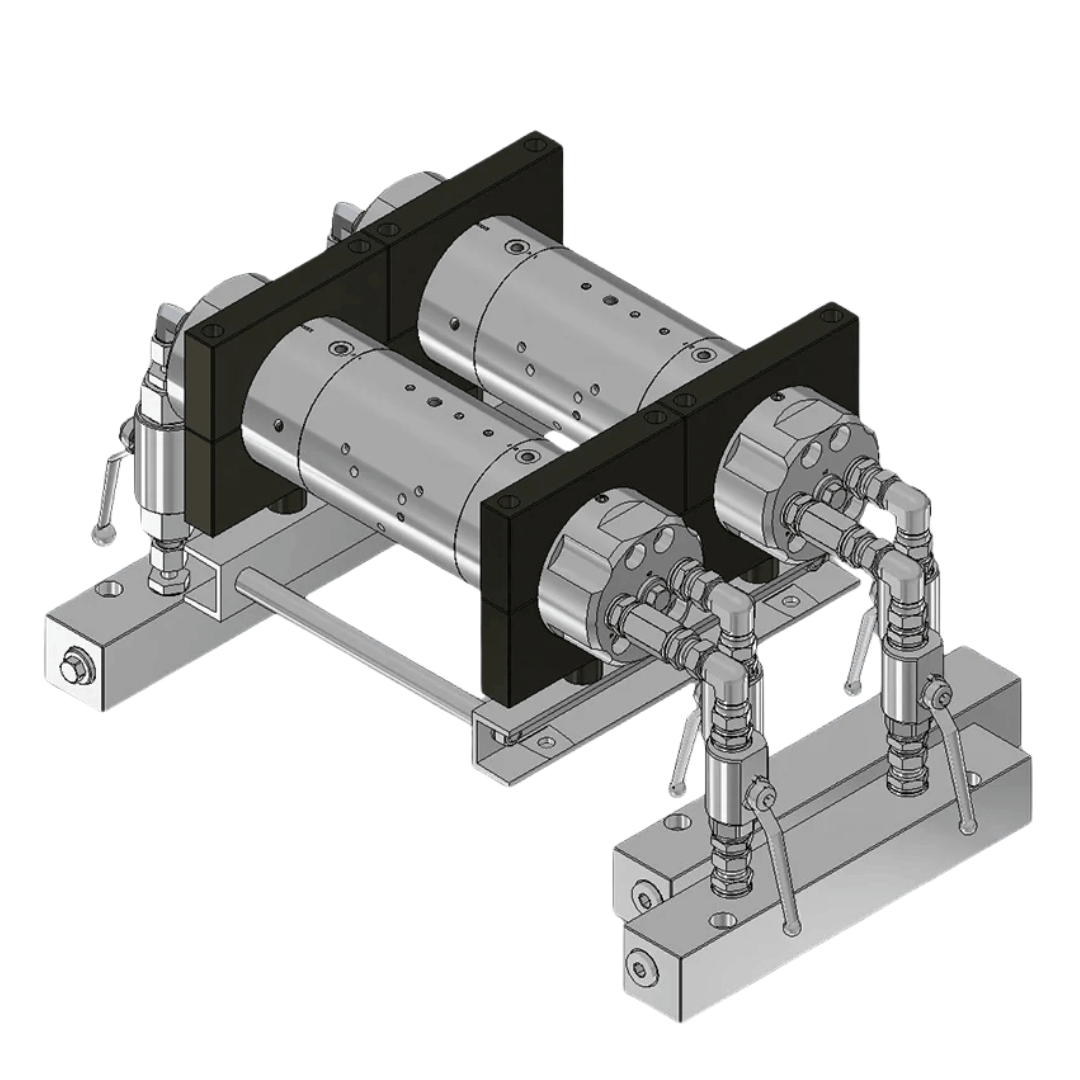

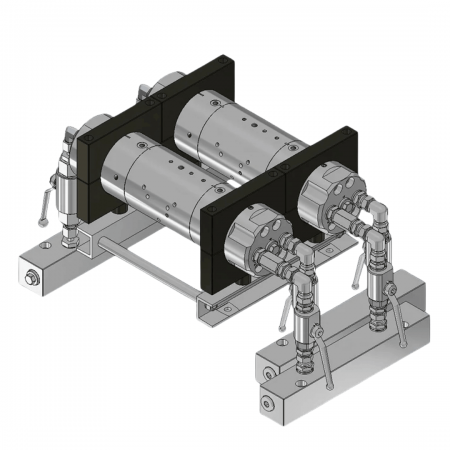

The P2W-HC6DW is a high flow dual-acting miniBOOSTER stainless steel 316L unit which is capable of delivering up to 76.8 l/min flow on the high-pressure end. Like other miniBOOSTER models, the P2W-HC6DW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.

Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P2W-HC6DW is a compact unit weighing 113.0 kg.

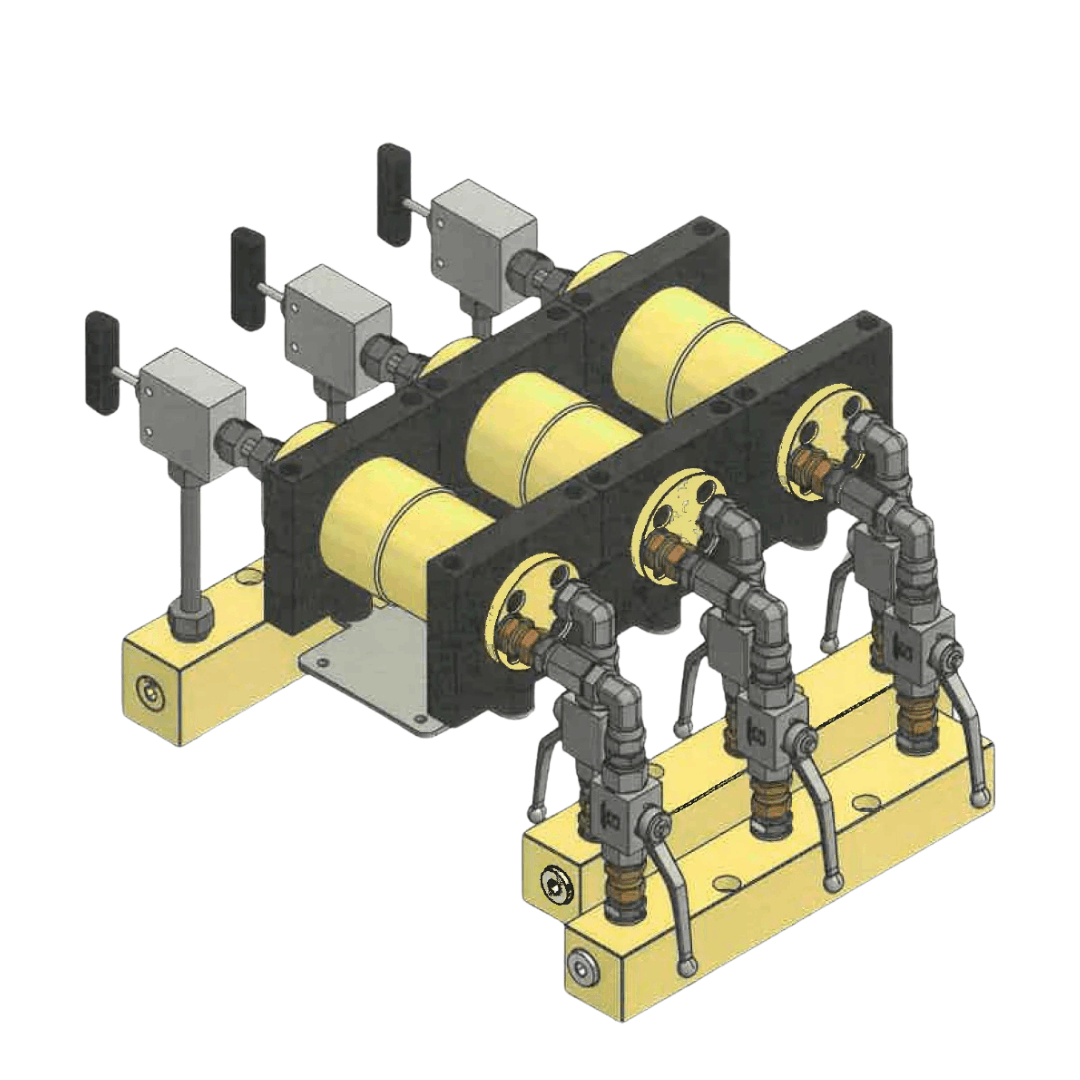

The P3-HC6H is an ultra high-pressure unit which is capable of delvering up to 4,135 bar. Consisting of three parallel mounted HC6H boosters, which is capable of delivering up to 20.1 l/min flow on the high-pressure end.

Like other miniBOOSTER models, the P3-HC6H raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P3-HC6H is a compact unit weighting 82 kg.

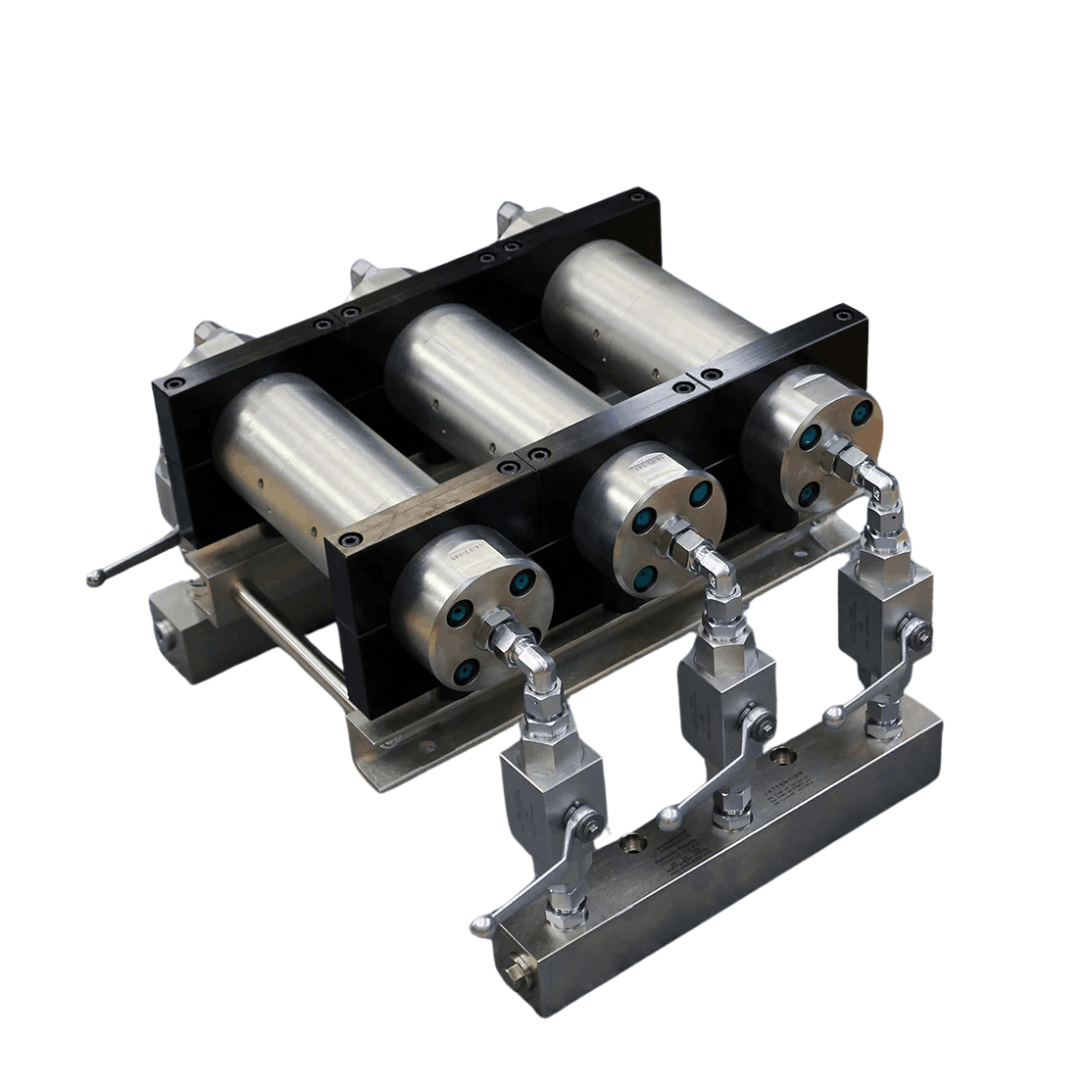

The P3-HC6D is a high-flow dual-acting unit, consisting of three parallel mounted HC6D boosters, which is capable of delivering up to 195.0 l/min flow on the high-pressure end.

Like other miniBOOSTER models, the P3-HC6D raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P3-HC6D is a compact unit weighting 120 kg.

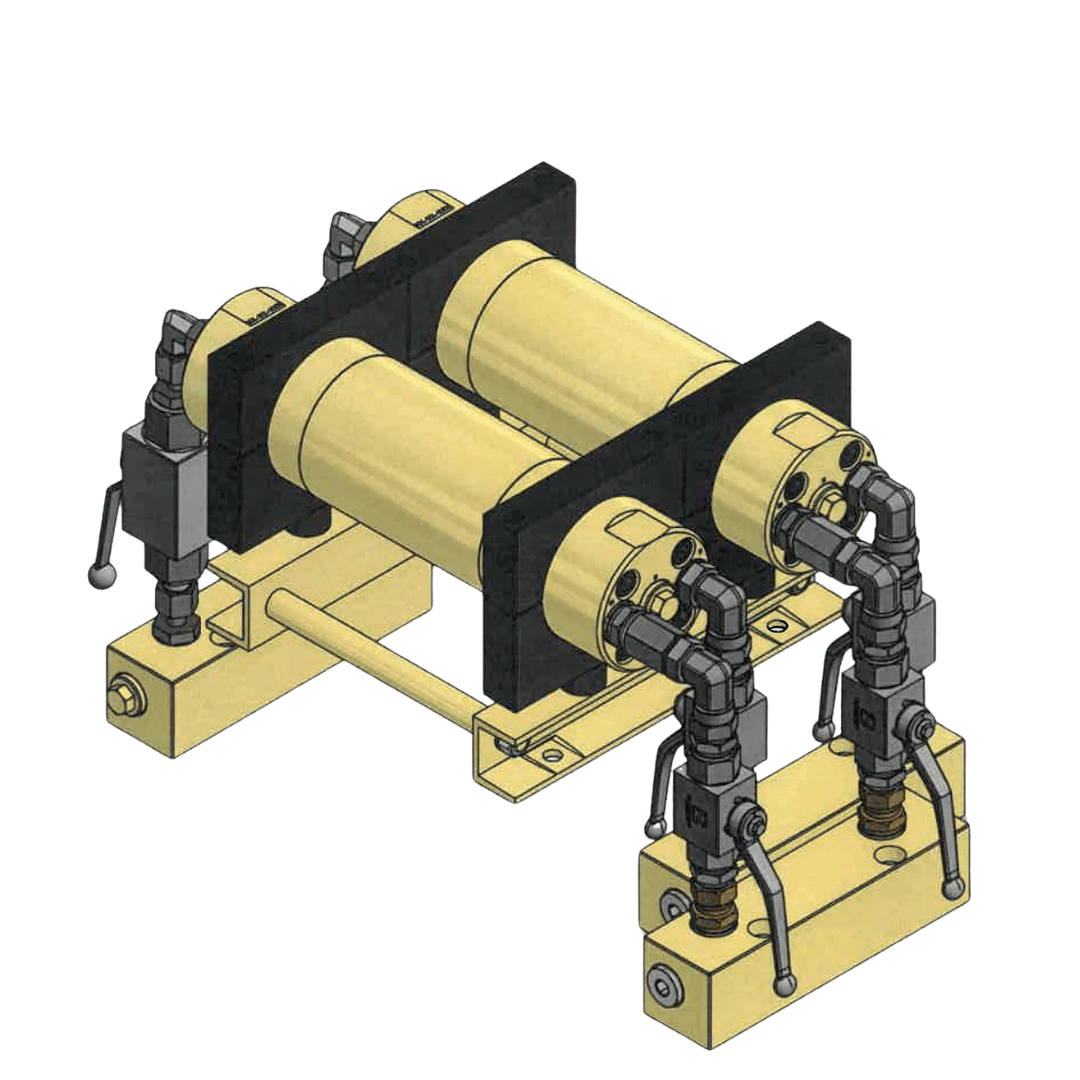

The P2-HC6D is a high-flow dual-acting unit, consisting of two parallel mounted HC6D boosters, which is capable of delivering up to 130.0 l/min flow on the high-pressure end.

Like other miniBOOSTER models, the P2-HC6D raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the P2-HC6D is a compact unit weighting 75 kg.

The boosters can each be taken out of operation using the installed ball valves.
