The HC9D2 is a dual media unit which is capable of delivering up to 6.5 l/min flow on the high pressure end. Like other miniBOOSTER models, the HC9D2 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC9D2 is a compact unit weighing 25 kg.
The HC6D2 is a dual media unit which is capable of delivering up to 36.5 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6D2 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6D2 is a compact unit weighing 24 kg.

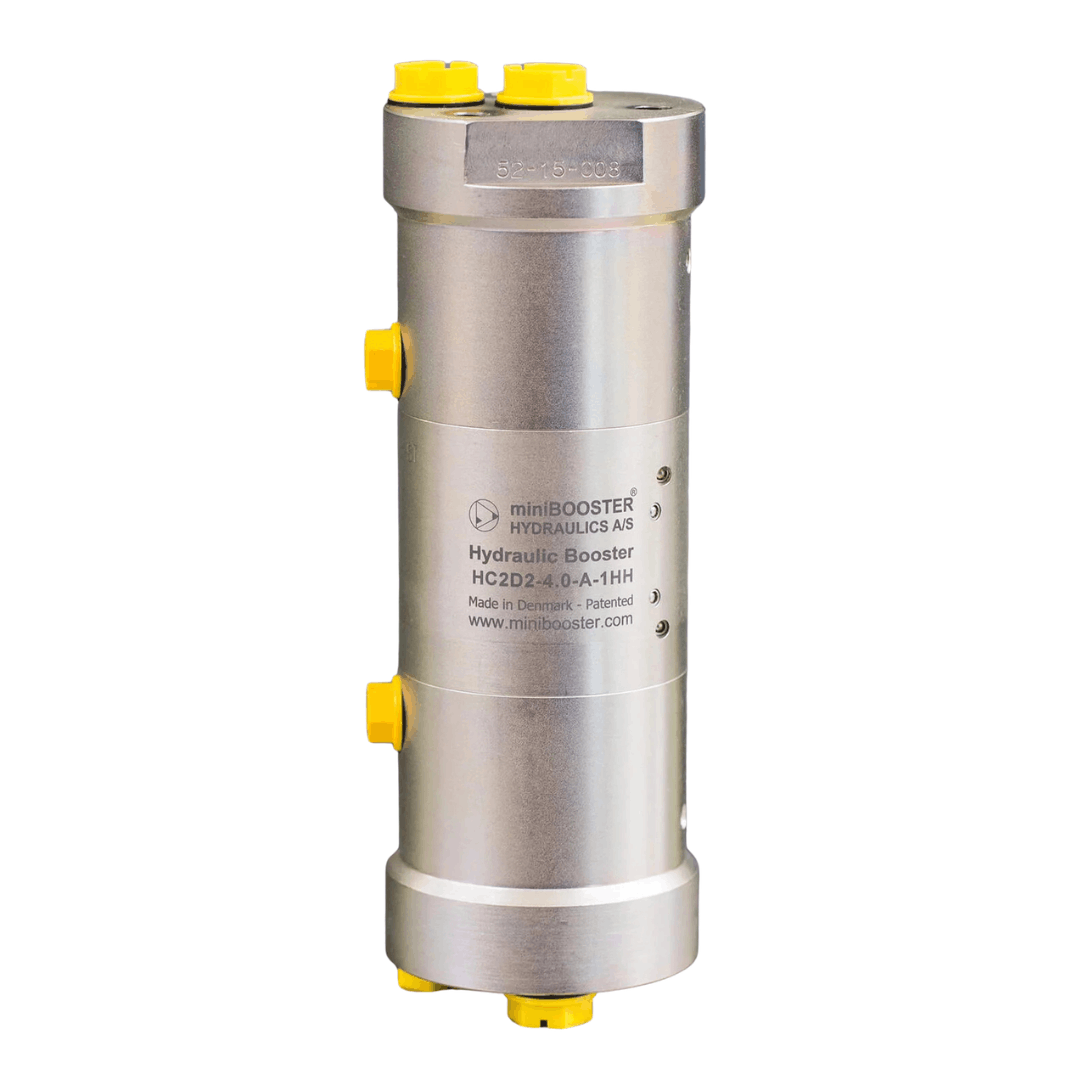

The HC2D2 is a dual media unit which is capable of delivering up to 4.2 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC2D2 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2D2 is a compact unit weighing 4.2 kg.
The HC9D2W is a dual media miniBOOSTER stainless steel 316L unit which is capable of delivering up to 6.5 l/min flow on the high pressure end. Like other miniBOOSTER models, the HC9D2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC9D2W is a compact unit weighing 25 kg.
The HC6D2W is a dual media miniBOOSTER stainless steel 316L unit which is capable of delivering up to 28 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6D2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6D2W is a compact unit weighing 24 kg.
HC2D2W is a dual media miniBOOSTER stainless steel 316L unit which is capable of delivering up to 4.2 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC2D2W raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2D2W is a compact unit weighing 8.0 kg.
HC2D2HW is a dual media miniBOOSTER stainless steel 316L unit which is capable of delivering up to 1.6 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC2D2HW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure.
Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC2D2HW is a compact unit weighing 8.0 kg.
