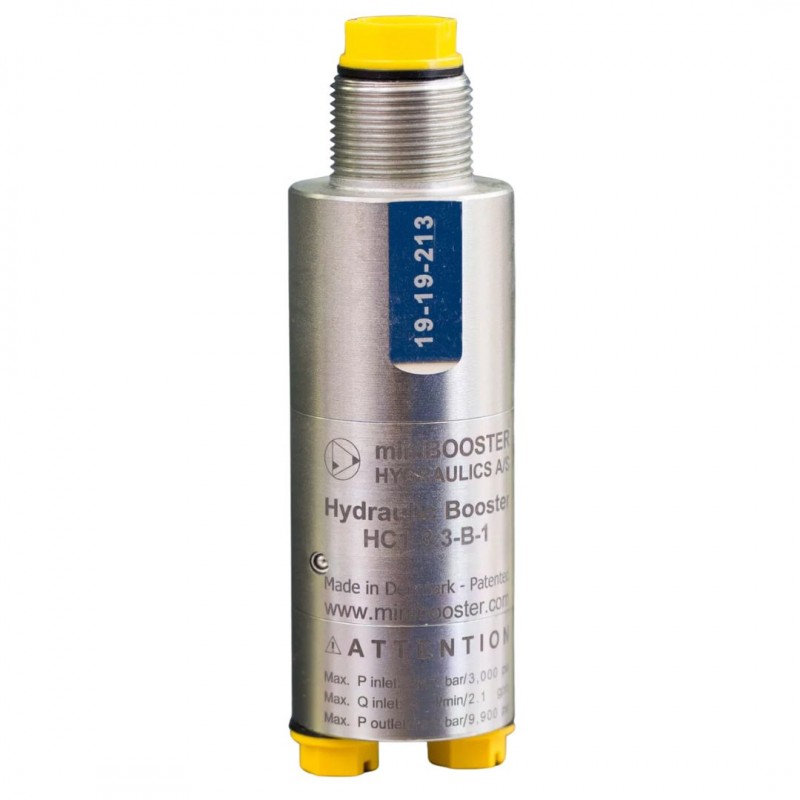

Minibooster HC1

The HC1 is the most compact miniBOOSTER unit weighing only 0.7 kg. It is ideal for use in applications where it is desirable to mount the unit on or in a tool, power pack, or other device.

The HC1 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.

HC1 versions: 9 different intensification factors

P - IN: 20–207 bar

P - H: 800 bar maximum

P - RETURN: As low as possible (return pressure to tank)

P - OUTLET: PH = (PIN – PRETURN) x intensification factor

Mounting: Inline tube

Weight: 0.7 kg.

Model versions:

A model = no dump valve

B model = with dump valve

G model = direct proportionally controlled
