Equalizer Secure Grip Spreaders
Secure Grip Spreading
Secure grip spreaders are likely to be suitable, if the flange you are working on has no access gap between the flanges or if you are concerned about damaging the flange faces or the flange joint, or if the flange join has a spacer, wafer or butterfly valve positioned between the flanges.
Description
Downloads
SG4TM Secure-grip Mechanical Flange Spreader
- Spreading Force: With 47 N·m (35 ft·lb) of torque applied: 3.7 T (37 kN)
It is recommended that tools are used in pairs giving: 2 x 3.7 T = 7.4 T (74 kN) - Spreading Distance: 0 mm - 75 mm (0” - 2.95”)
- Tool Weight: 4.5 kg (9.9 lb)
Features:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
Operating Benefifts:
- unique technology makes the Secure-Grip arguably the safest flange spreader available in the world today
- time-saving, simple operation
- measurable, controlled flange spreading force
- virtually universal, the Secure-Grip Flange Spreader range covers ANSI, DIN, SPO, ASME, API and BS flanges

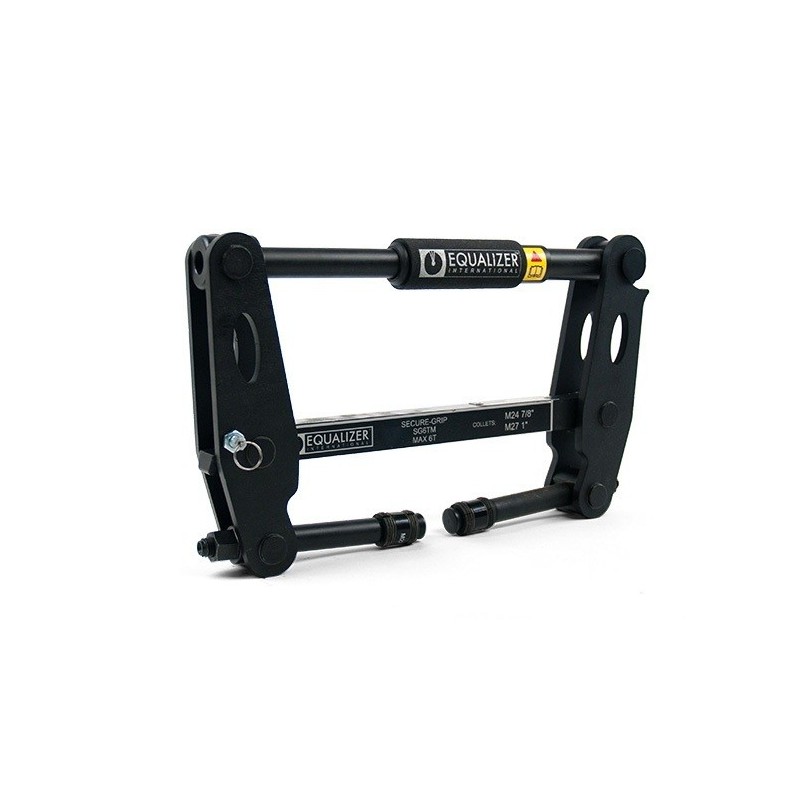

SG6TM Secure-grip Mechanical Flange Spreader
- Spreading Force: With 108 N·m (80 ft·lb) of torque applied: 6 T (60 kN)
It is recommended that tools are used in pairs giving: 2 x 6 T = 12 T (120 kN) - Spreading Distance: up to 80 mm (3.15”)
- Tool Weight: 7.5 kg (16.5 lb)
Features:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
- spreading force of 6T (60kN), spreading distance of 80mm (3.15")
Operating Benefifts:
- unique technology makes the Secure-Grip arguable the safest flange spreader in the world today
- virtually universal, the Secure-Grip Flange Spreader range will cover ANSI, DIN, SPO, ASME, API and BS Flanges
- time-saving, simple operation
- measurable, controlled spreading force

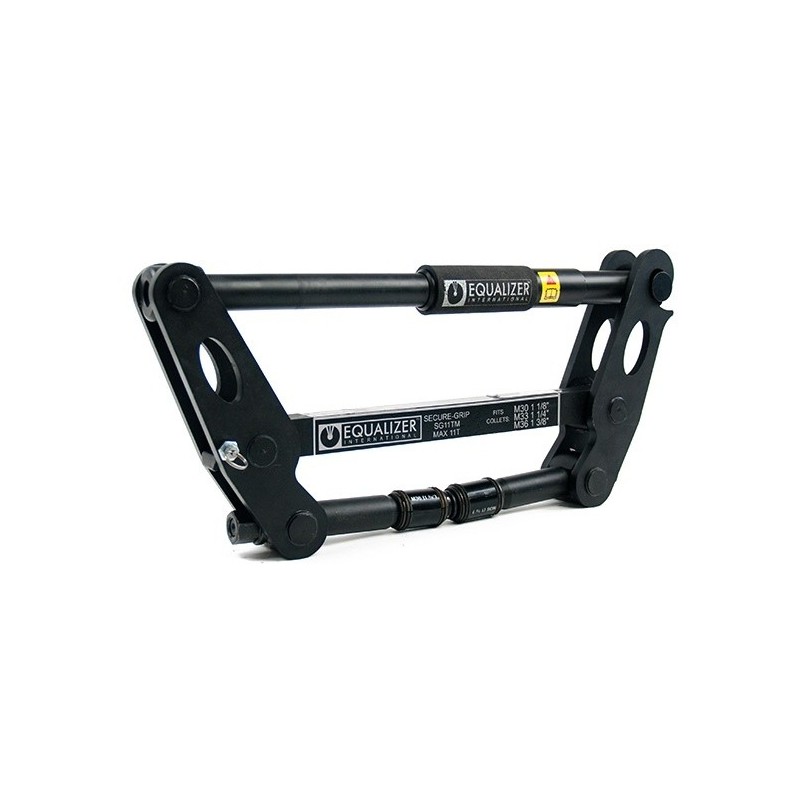

SG11TM Secure-grip Mechanical Flange Spreader
- Spreading Force: With 120 N·m (89 ft·lb) of torque applied: 11 T (110 kN)
It is recommended that tools are used in pairs giving: 2 x 11 T = 22 T (220 kN) - Spreading Distance: up to 90 mm (3.54”)
- Tool Weight: 10.5 kg (23.1 lb)
Features:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
- spreading force of 11T (110kN), spreading distance of 90mm (3.55")
- environmentally friendly
Operating Benefifts:
- unique technology makes the Secure-Grip arguable the safest flange spreader in the world today
- virtually universal, the Secure-Grip Flange Spreader range will cover ANSI, DIN, SPO, ASME, API and BS Flanges
- time-saving, simple operation
- measurable, controlled spreading force

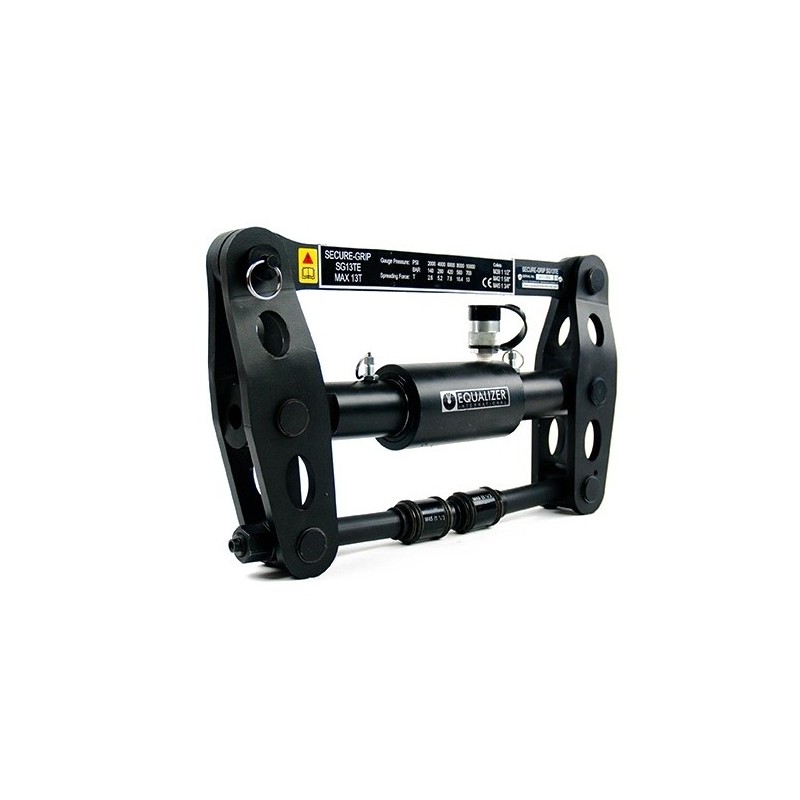

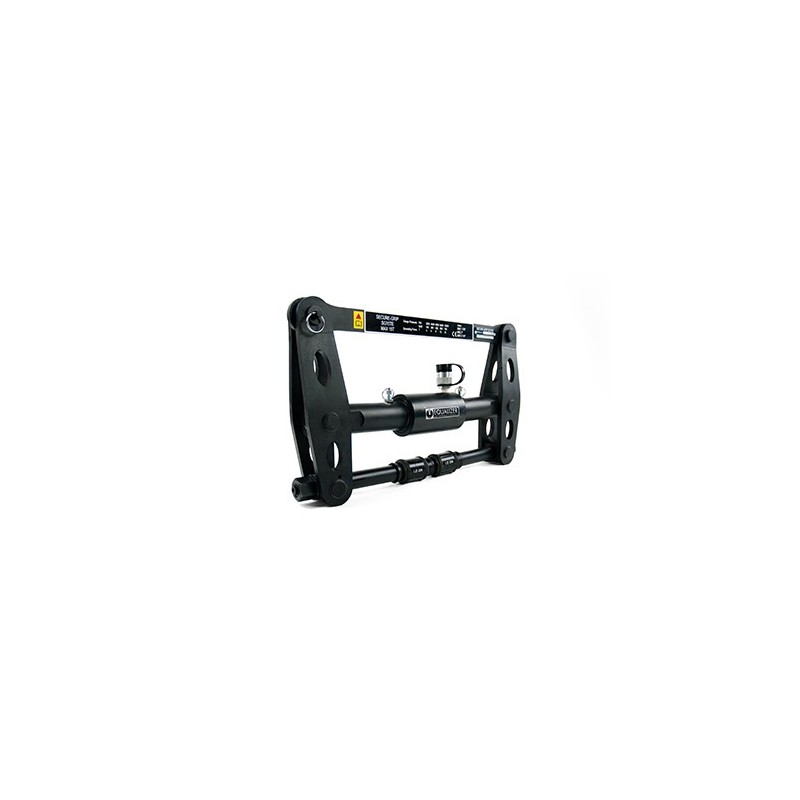

SG13TE Secure-grip Hydraulic Flange Spreader
- Spreading Force: With 700 bar (10 000 psi) of hydraulic pressure: 13 T (130 kN) per tool
It is recommended that tools are used in pairs giving: 2 x 13 T = 26 T (260 kN) - Spreading Distance: 0 mm - 115 mm (0” - 4.53”)
- Tool Weight: 21.5 kg (47.3 lb)
Features:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
- spreading force of 13 T (130 kN), spreading distance of 115 mm (4.53")
- environmentally friendly
Operating Benefifts:
- unique technology makes the Secure-Grip arguable the safest flange spreader in the world today
- virtually universal, the Secure-Grip Flange Spreader range will cover ANSI, DIN, SPO, ASME, API and BS Flanges
- time-saving, simple operation
- measurable, controlled spreading force
- portable
SG15TE Secure-grip Hydraulic Flange Spreader
- Spreading Force: With 700 bar (10 000 psi) of hydraulic pressure: 15 T (150 kN) per tool
It is recommended that tools are used in pairs giving: 2 x 15 T = 30 T (300 kN) - Spreading Distance: 0 mm - 100 mm (0” - 3.94”)
- Tool Weight: 26 kg (57.3 lb)
Features:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
- spreading force of 15 T (150 kN), spreading distance of 100 mm (3.94")
- environmentally friendly
Operating Benefifts:
- unique technology makes the Secure-Grip arguable the safest flange spreader in the world today
- virtually universal, the Secure-Grip Flange Spreader range will cover ANSI, DIN, SPO, ASME, API and BS Flanges
- time-saving, simple operation
- measurable, controlled spreading force

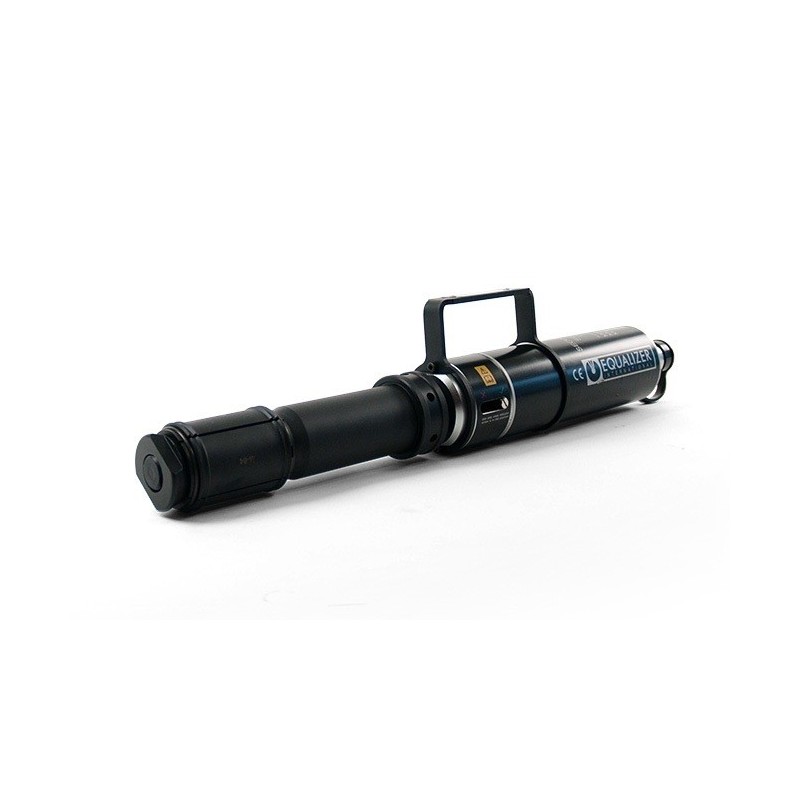

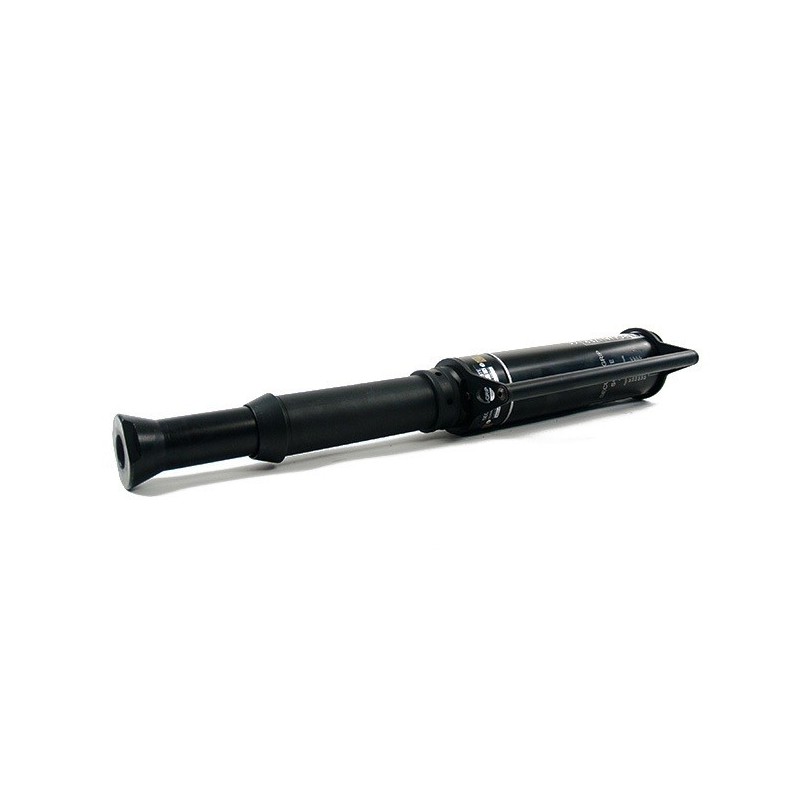

SG18TE Secure-grip In-line Hydraulic Flange Spreader
- Spreading Force: With 700 bar (10 000 psi) of hydraulic pressure: 18 T (180 kN) per tool
It is recommended that tools are used in pairs giving: 2 x 18 T = 36 T (360 kN) - Spreading Distance: 0 mm - 100 mm (0” - 3.9”)
- Tool Weight: 14 kg (30.8 lb)
Features:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
- spreading force of 18 T (180 kN), spreading distance of 100 mm (3.94")
Operating Benefifts:
- unique technology makes the Secure-Grip arguable the safest flange spreader in the world today
- virtually universal, the Secure-Grip Flange Spreader range will cover ANSI, DIN, SPO, ASME, API and BS Flanges
- time-saving, simple operation
- measurable, controlled spreading force
SG25TE Secure-grip In-line Hydraulic Flange Spreader
- Spreading Force: With 700 bar (10 000 psi) of hydraulic pressure: 25 T (250 kN) per tool
It is recommended that tools are used in pairs giving: 2 x 25 T = 50 T (500 kN) - Spreading Distance: 0 mm - 120 mm (0” - 4.72”)
- Tool Weight: 24 kg (52.9 lb)
Features:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
- spreading force of 25 T (250 kN), spreading distance of 120 mm (4.72")
Operating Benefits:
- unique technology makes the Secure-Grip arguable the safest flange spreader in the world today
- virtually universal, the Secure-Grip Flange Spreader range will cover ANSI, DIN, SPO, ASME, API and BS Flanges
- time-saving, simple operation
- measurable, controlled spreading force

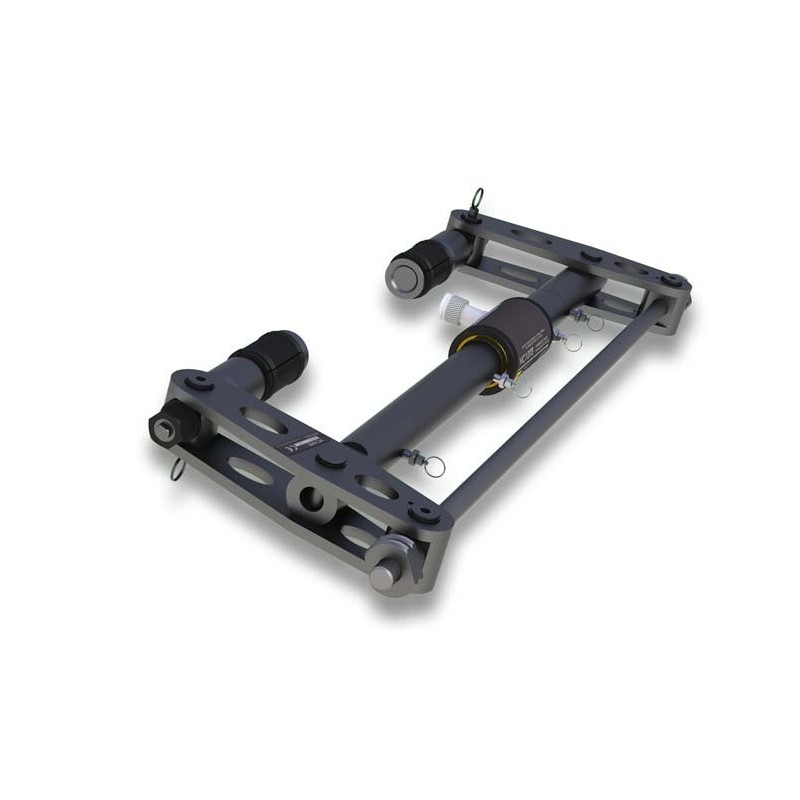

VC10/18TE Secure-grip Valve Change-out Tool
- Spreading Force: With 700 bar (10 000 psi): 100 kN (10 T)
It is recommended that tools are used in pairs giving: 2 x 100 kN = 200 kN (20 T) - Spreading Stroke: 151 mm (5.9”)
- Tool Weight: 58.0 kg (127.9 lb)
Ideal For:
- Large flange joints
- Flange joints with spacers, blinds, or valves present
- Spreading force up to 10T per tool
Exploiting Patented Secure-grip System:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
- unique technology makes the Secure-Grip arguably the safest flange spreader available in the world today
- virtually universal, the Secure-Grip Flange Spreader range will cover ANSI, DIN, SPO, ASME, API and BS Flanges
- time-saving, simple operation
- measurable, controlled spreading force
VC10/13TE Secure-grip Valve Change-out Tool
- Spreading Force: With 700 bar (10 000 psi): 100 kN (10 T)
It is recommended that tools are used in pairs giving: 2 x 100 kN = 200 kN (20 T) - Spreading Stroke: 151 mm (5.9”)
- Tool Weight: 50.0 kg (110.2 lb)
Ideal For:
- Large flange joints
- Flange joints with spacers, blinds, or valves present
- Spreading force up to 10T per tool
Exploiting Patented Secure-grip System:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
- unique technology makes the Secure-Grip arguably the safest flange spreader available in the world today
- virtually universal, the Secure-Grip Flange Spreader range will cover ANSI, DIN, SPO, ASME, API and BS Flanges
- time-saving, simple operation
- measurable, controlled spreading force
VC10/15TE Secure-grip Valve Change-out Tool
- Spreading Force: With 700 bar (10 000 psi): 100 kN (10 T)
It is recommended that tools are used in pairs giving: 2 x 100 kN = 200 kN (20 T) - Spreading Stroke: 151 mm (5.9”)
- Tool Weight: 53.0 kg (116.8 lb)
Ideal For:
- Large flange joints
- Flange joints with spacers, blinds, or valves present
- Spreading force up to 10T per tool
Exploiting Patented Secure-grip System:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
- unique technology makes the Secure-Grip arguably the safest flange spreader available in the world today
- virtually universal, the Secure-Grip Flange Spreader range will cover ANSI, DIN, SPO, ASME, API and BS Flanges
- time-saving, simple operation
- measurable, controlled spreading force
VC10/25TE Secure-grip Valve Change-out Tool
- Spreading Force: With 700 bar (10 000 psi): 100 kN (10 T)
It is recommended that tools are used in pairs giving: 2 x 100 kN = 200 kN (20 T) - Spreading Stroke: 151 mm (5.9”)
- Tool Weight: 58.0 kg (127.9 lb)
Ideal For:
- Large flange joints
- Flange joints with spacers, blinds, or valves present
- Spreading force up to 10T per tool
Exploiting Patented Secure-grip System:
- unique expanding collet technology
- little or no access gap required
- secure bolt-hole locking mechanism
- unique technology makes the Secure-Grip arguably the safest flange spreader available in the world today
- virtually universal, the Secure-Grip Flange Spreader range will cover ANSI, DIN, SPO, ASME, API and BS Flanges
- time-saving, simple operation
- measurable, controlled spreading force
