Equalizer FC10TE Hydraulic Flange Pulling Tool
The FC10TE Hydraulic flange pulling tool can be used on any flange with a bolt hole diameter of 22mm (7/8”) or greater, and can pull from a distance of 600mm down to 0 mm with a force of 10T (100kN) per tool.
Description
Downloads

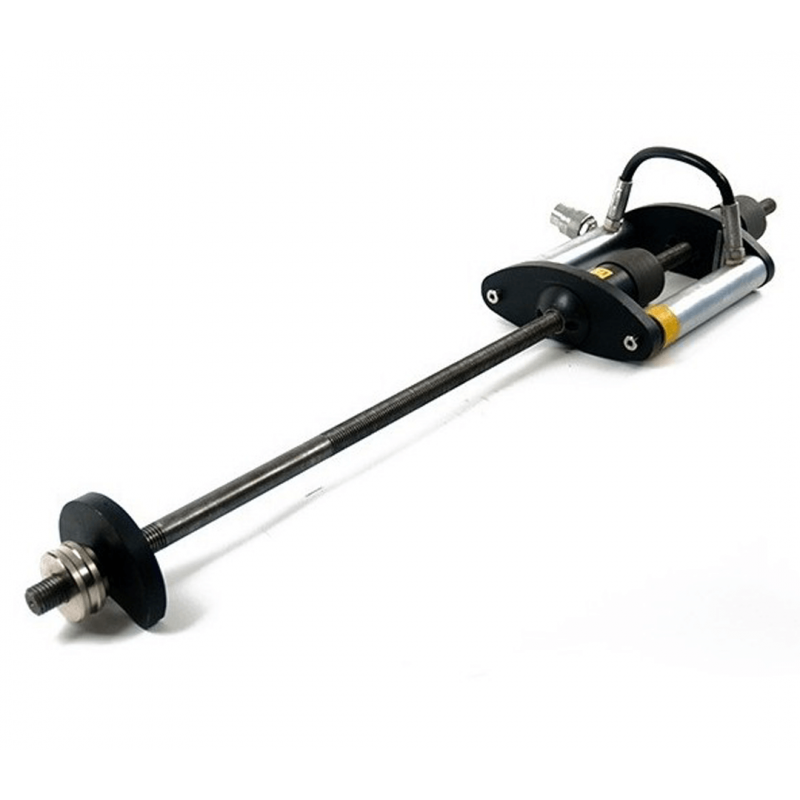

FC10TE Hydraulic Flange Pulling Tool
- Closing force: 10 T (100 kN) per tool
- Closing distance: From 600 mm to 0 mm (23.6” - 0”)
- Tool weight: 11 kg (24.3 lb)
Features:
- slide and lock collet system
- small foot print
- can be used on all vertical and horizontal flanges including ANSI, API, BS, DIN & SPO
- pulling force of 10T per tool
- robust yet light weight
- subsea compatible
- reciprocating hydraulic action
