Magnetic Sensors for Position Monitoring

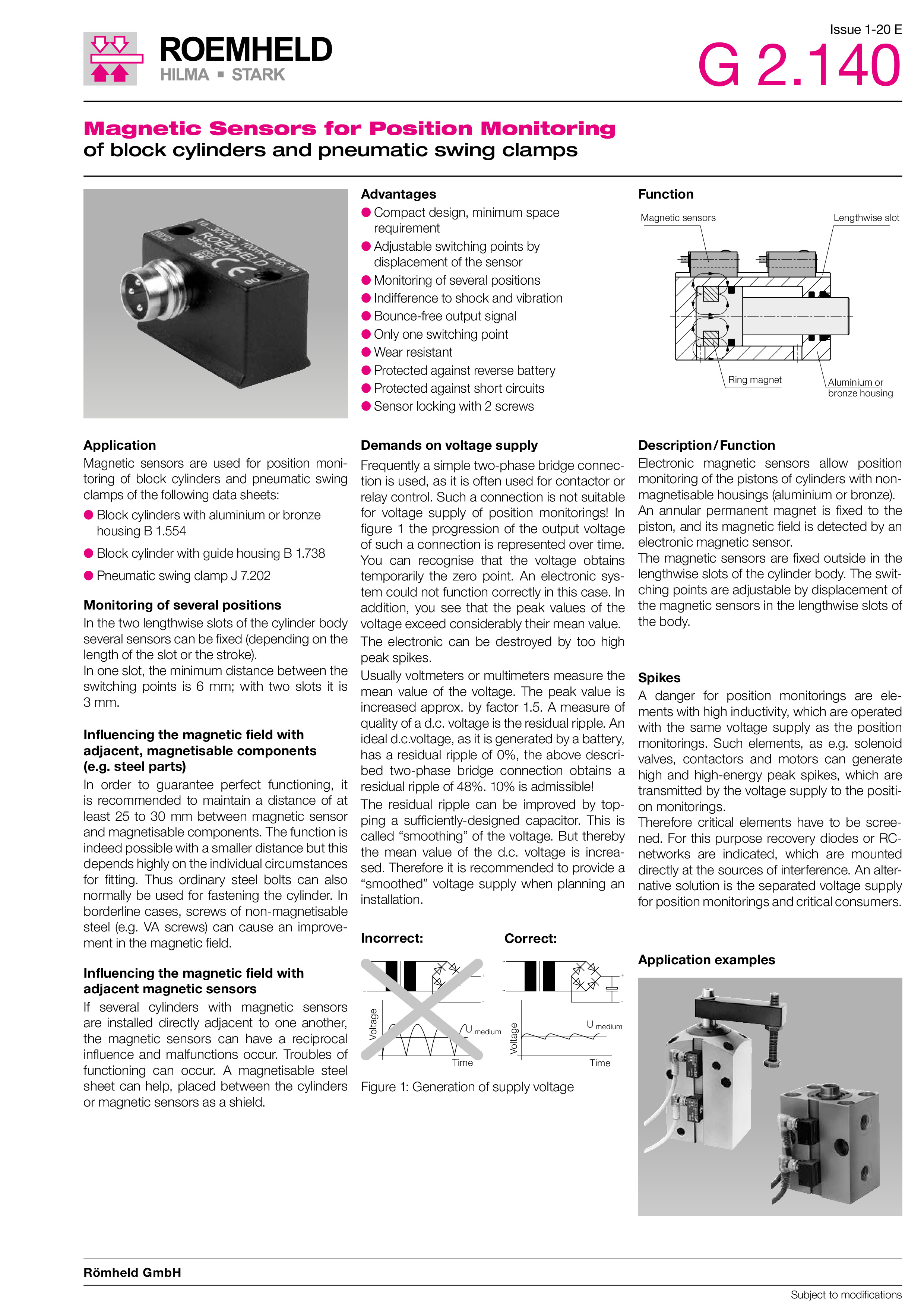

ROEMHELD G 2.140 Magnetic Sensors for Position Monitoring of Block Cylinders and Pneumatic Swing Clamps
- Block cylinder with bronze housing B 1.553
- Block cylinder with aluminium housing B 1.554
- Block cylinder with guide housing B 1.738
- Pneumatic swing clamp J 7.202

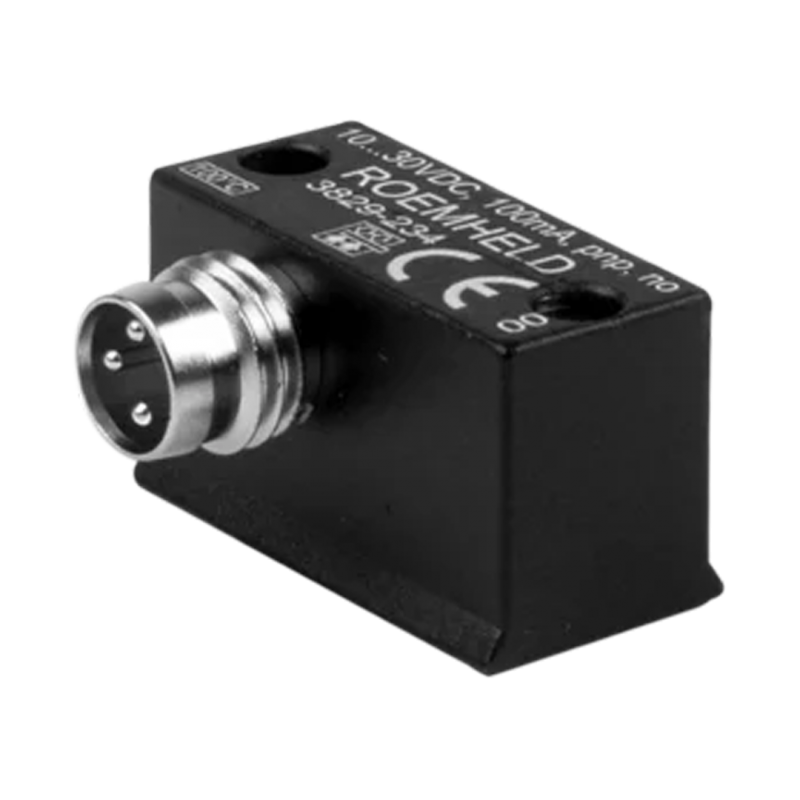

Electronic magnetic sensors allow position monitoring of the pistons of cylinders with non-magnetisable housings (aluminium or bronze).
An annular permanent magnet is fixed to the piston, and its magnetic field is detected by an electronic magnetic sensor. The magnetic sensors are fixed outside in the lengthwise slots of the cylinder body. The switching points are adjustable by displacement of the magnetic sensors in the lengthwise slots of the body.
Magnetic Sensors for Position Monitoring - ROEMHELD G 2.140
Magnetic sensors are used for position monitoring of block cylinders and pneumatic swing clamps of the following data sheets:
- Block cylinder with bronze housing B 1.553
- Block cylinder with aluminium housing B 1.554
- Block cylinder with guide housing B 1.738
- Pneumatic swing clamp J 7.202
Advantages:
- Compact design, minimum space requirement
- Adjustable switching points by displacement of the sensor
- Monitoring of several positions
- Indifference to shock and vibration
- Bounce-free output signal
- Only one switching point
- Wear resistant
- Protected against reverse battery
- Protected against short circuits
- Sensor locking with 2 screws
Description:
Electronic magnetic sensors allow position monitoring of the pistons of cylinders with non-magnetisable housings (aluminium or bronze).
An annular permanent magnet is fixed to the piston, and its magnetic field is detected by an electronic magnetic sensor. The magnetic sensors are fixed outside in the lengthwise slots of the cylinder body. The switching points are adjustable by displacement of the magnetic sensors in the lengthwise slots of the body.
