Spherical Bearings

Spherical Bearings - ROEMHELD G 3.810

ROEMHELD Spherical Bearings. Rod End Bearings and Bearing Blocks for hydro-cylinders and block cylinders.

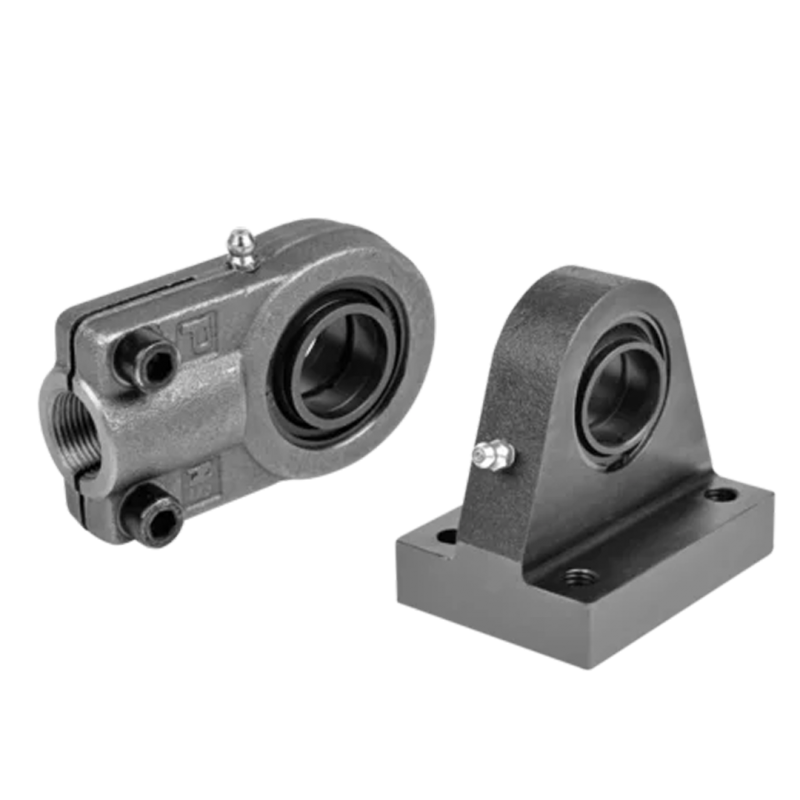

Rod end bearings

The rod end bearings consist of a spherical bearing mounted in a housing that can be screwed onto the piston rod of hydraulic cylinders or block cylinders. The spherical bearing is a plain bearing that allows a force transmission with a tilting angle of maximally 4°.

Bearing blocks

The bearing blocks consist of a spherical bearing mounted in a housing that can be screwed onto the cylinder base of hydro cylinders or block cylinders. The spherical bearing is a plain bearing that allows a force transmission with a tilting angle of maximally 4°.

Options:

For hydro-cylinders B 1.282:

• with piston rod Ø d 16 - 50 mm
• bearing eye Ø e fit H7: 12 - 40 mm

For block cylinders B 1.542

• with piston rod Ø d 16 - 40 mm
• bearing eye Ø e fit H7: 16 - 40 mm
