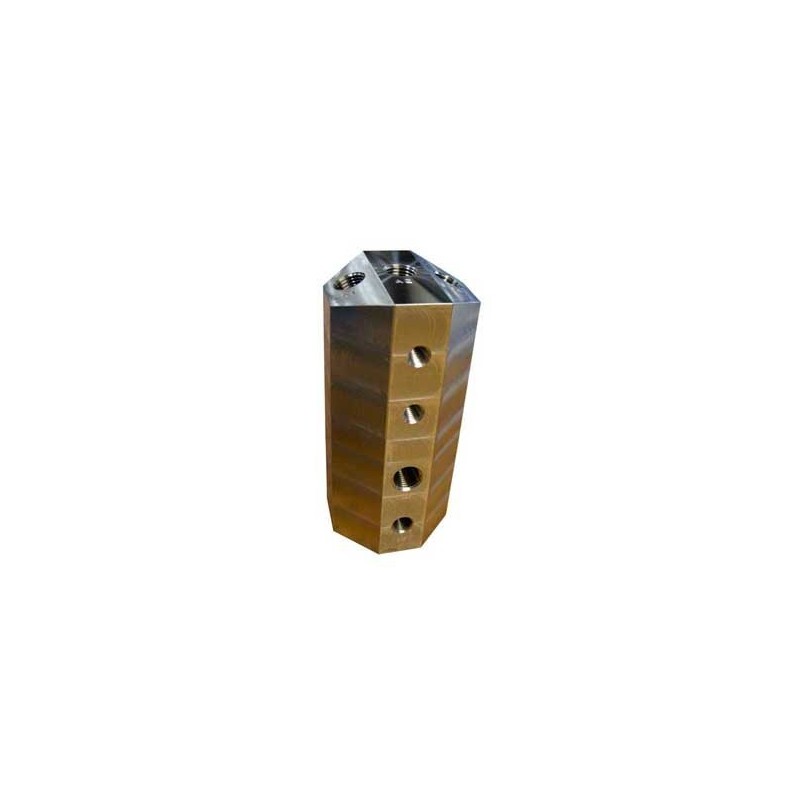

POV-2000 Pilot Operated Check Valve
The POV-2000 is a high pressure pilot operated check valve designed for use with high pressure cylinders
Minibooster POV-2000 Pilot Operated Check Valve
- Operating Pressure: Up to 2,000 bar
- Flow: Up to 15 LPM at 3 bar pressure drop
- Pilot ratio: 18.7 to 1
- Min. opening (clearence) diameter Ø: 4.2 mm
Description:
The POV-2000 is a high pressure pilot operated check valve designed for use with high pressure cylinders, being able to return high volume of oil with minimum pressure loss.
The unit contains a screen that will protect the valve from dirt from high pressure side. The unit is weighing only 2.5 kg

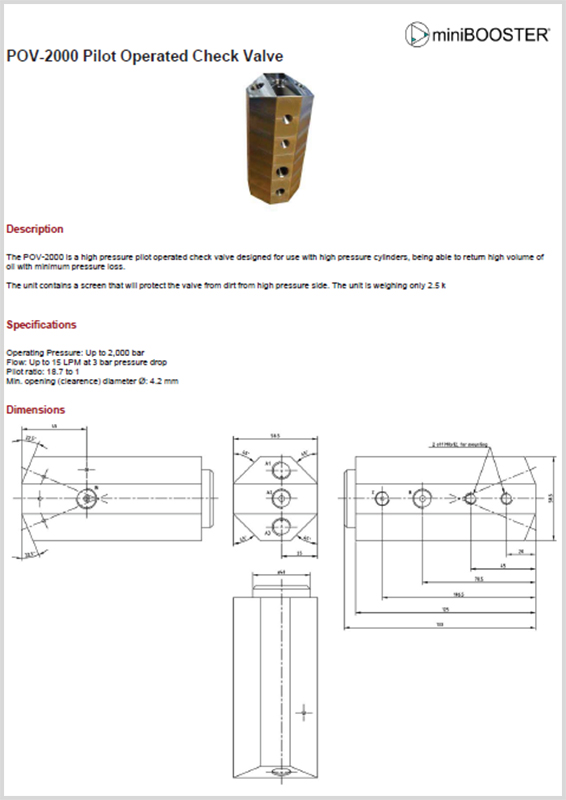

Dimensions:
Function:
Connections:
- A1, A2, A3: 1/4" BSPP, 120 sealing cone (max. 2,000 bar)
- B: 1/4" bsp (max. 200 bar)
- z: 1/8"BSPP (max. 200 bar)
- IN: 9/16" - 18 UNF, 60 sealing cone (max. 2,000 bar)
Ordering a POV-2000
Ordering example: POV-2000-1
