Electrical Operating Elements, Lines and Connectors

Electrical Operating Elements, Lines and Connectors - ROEMHELD M8.203

Advantages:

• Comfortable operation
• Flexible positioning in an ergonomically favourable place
• Coiled cable
• Plug secured by screws

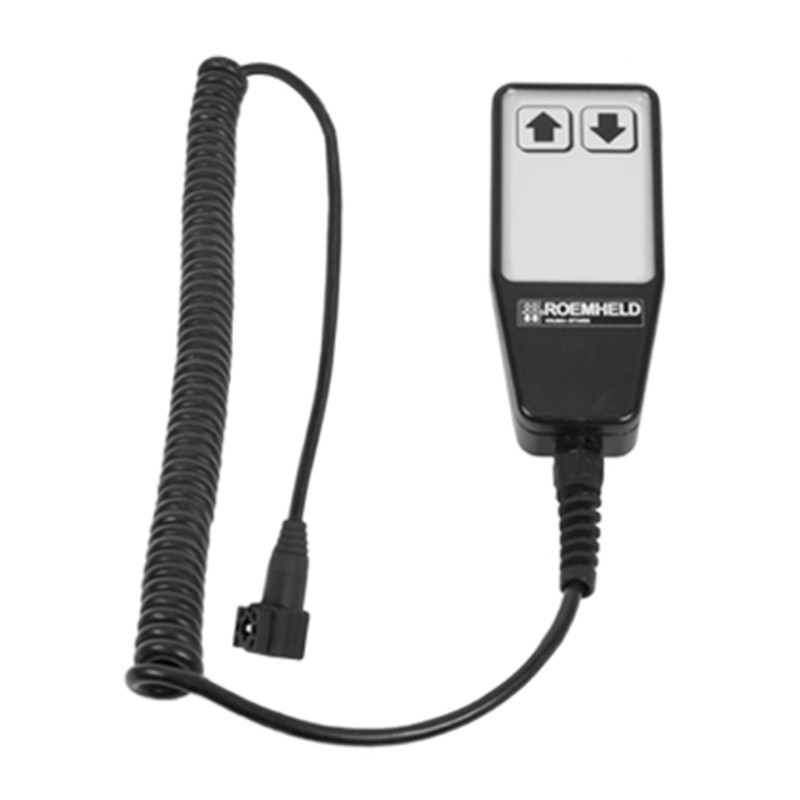

Modulog hand panel with up / down function

• Part no. 3823-025

Application:

Electrical operating elements for the operation of electrical modulog modules.

Description:

The hand panel has two buttons which operate the functions "up" and "down". At the back of the body there is a hook to hang up the hand panel in an ergonomically favourable place. The relaxed coiled cable is approx. 0.9 m long and can be pulled up to a length of 1.6 m.

Modulog hand panel with memory function

• Part no. 3823-160

Application:

Electrical operating elements for the operation of electrical modulog modules with memory function

Description:

The hand panel with memory function has two push-buttons "up" and "down" to adjust the lifting modules and 5 programmable buttons for the memory function. To store a position, the lifting module is moved into the desired position and either the "M" button is operated at the same time with one of the position push-buttons "1 – 5" or the "M" button and shortly afterwards one of the five position push-buttons. The stored positions "1 – 5" can be approached by means of the position push-buttons. The stored positions are durably kept until they are overwritten by a new storage process.

Modulog foot switch with up / down function

• Part no. 3823-038

Description:

The foot switch is equipped with two pushbuttons for the functions "up" and "down". The bottom side is skid-proof so that also in industrial applications a fixed position can be guaranteed.
