Carr Lane Jig Pin
Jig Pins have precision-ground pin diameter to ensure accurate hole alignment. L Pins and T Pins are removable locating pins with a durable construction, each featuring a handle end with a small hole for attaching an optional cable. These pins come in a variety of diameters and lengths. Jig Pins, similar to L and T Pins, incorporate an integral shoulder to keep the handle raised. Carr Lane also offers locking L Pins and T Pins with a lock screw that securely holds bushings in place. These pins are available in both imperial and metric sizes.
| Part Number | Material Number | Metric or Imperial | External Diameter | Length | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CLM-5-JP | Metric | 5mm | 1-7/8 | On Enquiry | ||
| CLM-6-JP | Metric | 6mm | 2 | £16.30 £19.56 Inc. VAT |
|
|
| CLM-8-JP | Metric | 8mm | 2-1/2 | £19.34 £23.21 Inc. VAT |
|
|
| CLM-10-JP | Metric | 10mm | 3-1/4 | £19.64 £23.57 Inc. VAT |
|
|
| CLM-12-JP | Metric | 12mm | 4 | £22.16 £26.59 Inc. VAT |
|
|
| CL-50-JP | Imperial | 1/2 | 4 | £22.10 £26.52 Inc. VAT |
|
|
| CL-10-JP | Imperial | 3/16 | 1-7/8 | £15.77 £18.92 Inc. VAT |
|
|
| CL-20-JP | Imperial | 1/4 | 2 | £16.07 £19.28 Inc. VAT |
|
|
| CL-30-JP | Imperial | 5/16 | 2-1/2 | £18.14 £21.77 Inc. VAT |
|
|
| CL-40-JP | Imperial | 3/8 | 3-1/4 | £19.10 £22.92 Inc. VAT |
|
Carr Lane Jig Pin

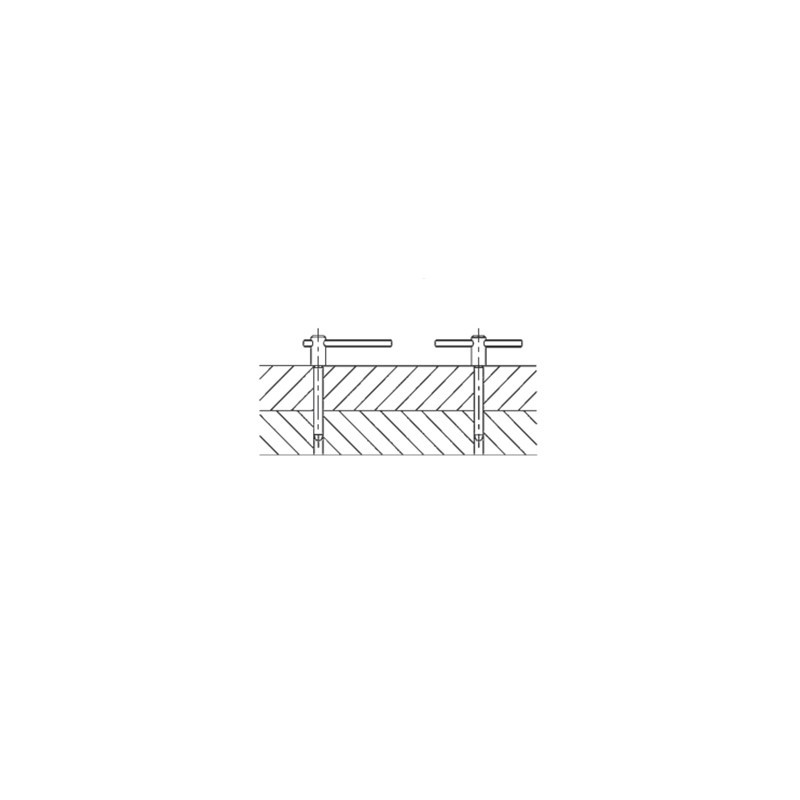

Similar to the L and T Pins, but with a shoulder to keep the handle raised, pins are ground slightly to undersize. To convert from an L handle to a T handle, slide the roll-pin handle by tapping it with a hammer.
Options:
- Availble in Metric and Imperial sizes
- Steel Black Oxide Finish
