Cam handle expanding pins are alignment pins that expand to offer the highest tolerance alignment of two holes possible. Created with female split bushings separated by males segments formed on centre spindle, that is allowed to expand when it is drawn together. They are available in standard pin diameters from 1/4" to 3/4" in various available lengths.

  • External Diameter - 1/4 - 3/4
  • Grip Length - .50 - 4.00

Products
Downloads
Description
Part Number Material Number External Diameter Grip Length Price Add to Parts List
CL-4-EXP-1.00 CL-4-EXP-1.00 1/4 1.00 £129.67
£155.60 Inc. VAT
CL-4-EXP-0.75 CL-4-EXP-0.75 1/4 0.75 £129.67
£155.60 Inc. VAT
CL-4-EXP-3.00 CL-4-EXP-3.00 1/4 3.00 £233.88
£280.66 Inc. VAT
CL-4-EXP-0.50 CL-4-EXP-0.50 1/4 0.50 £129.67
£155.60 Inc. VAT
CL-4-EXP-2.00 CL-4-EXP-2.00 1/4 2.00 £198.07
£237.68 Inc. VAT
CL-4-EXP-1.50 CL-4-EXP-1.50 1/4 1.50 £198.07
£237.68 Inc. VAT
CL-5-EXP-1.00 CL-5-EXP-1.00 5/16 1.00 £146.52
£175.82 Inc. VAT
CL-5-EXP-3.00 CL-5-EXP-3.00 5/16 3.00 £196.49
£235.79 Inc. VAT
CL-5-EXP-2.00 CL-5-EXP-2.00 5/16 2.00 £158.30
£189.96 Inc. VAT
CL-6-EXP-1.50 CL-6-EXP-1.50 3/8 1.50 £182.16
£218.59 Inc. VAT
CL-6-EXP-1.00 CL-6-EXP-1.00 3/8 1.00 £146.52
£175.82 Inc. VAT
CL-6-EXP-3.00 CL-6-EXP-3.00 3/8 3.00 £217.18
£260.62 Inc. VAT
CL-6-EXP-2.00 CL-6-EXP-2.00 3/8 2.00 £182.16
£218.59 Inc. VAT
CL-8-EXP-1.00 CL-8-EXP-1.00 1/2 1.00 £146.52
£175.82 Inc. VAT
CL-8-EXP-0.50 CL-8-EXP-0.50 1/2 0.50 £146.52
£175.82 Inc. VAT
CL-8-EXP-3.00 CL-8-EXP-3.00 1/2 3.00 £236.26
£283.51 Inc. VAT
CL-8-EXP-2.00 CL-8-EXP-2.00 1/2 2.00 £201.26
£241.51 Inc. VAT
CL-8-EXP-1.50 CL-8-EXP-1.50 1/2 1.50 £201.26
£241.51 Inc. VAT
CL-12-EXP-2.00 CL-12-EXP-2.00 3/4 2.00 £201.26
£241.51 Inc. VAT
CL-12-EXP-4.00 CL-12-EXP-4.00 3/4 4.00 £272.52
£327.02 Inc. VAT
CL-12-EXP-3.00 CL-12-EXP-3.00 3/4 3.00 £248.21
£297.85 Inc. VAT
CL-10-EXP-1.00 CL-10-EXP-1.00 5/8 1.00 £150.02
£180.02 Inc. VAT
CL-10-EXP-3.00 CL-10-EXP-3.00 5/8 3.00 £236.26
£283.51 Inc. VAT
CL-10-EXP-2.00 CL-10-EXP-2.00 5/8 2.00 £201.26
£241.51 Inc. VAT
CL-10-EXP-1.50 CL-10-EXP-1.50 5/8 1.50 £201.26
£241.51 Inc. VAT

Carr Lane Cam Handle Expanding Pins

  • External Diameter - 1/4 - 3/4
  • Grip Length - .50 - 4.00

Note: Some sizes have a minimum order quantity, contact HYQUIP for more information.

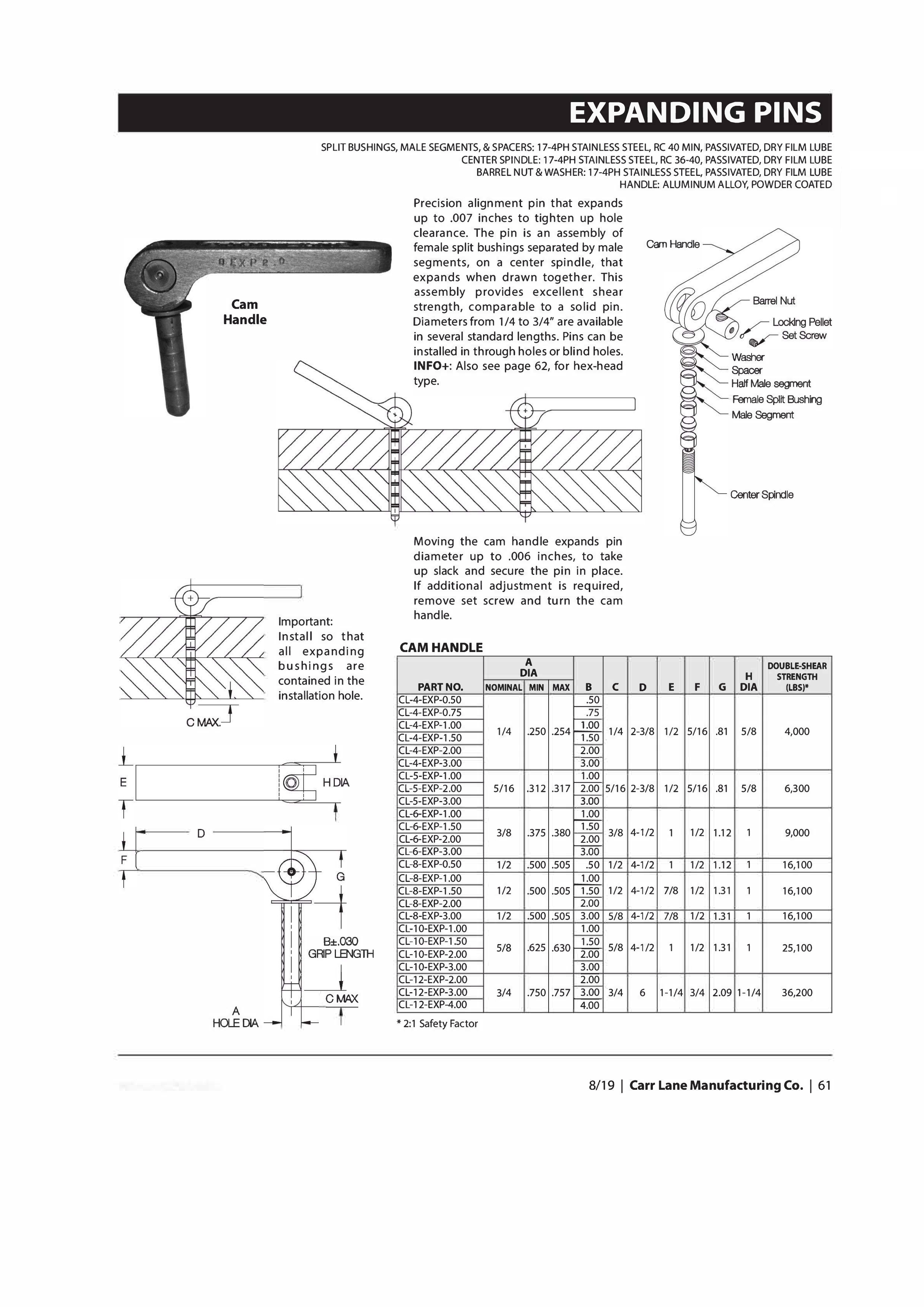

Precision alignment pin that expands to tighten up hole clearance (.004" minimum expansion on the smallest diameter, up to .010" minimum expansion on the largest diameter). The pin is an assembly of female split bushings separated by male segments, all on a center spindle, that expands when drawn together. This assembly provides excellent shear strength, comparable to a solid pin. Expanding Pins can be installed in through holes or blind holes.
