Carr Lane Captive Jig Pins

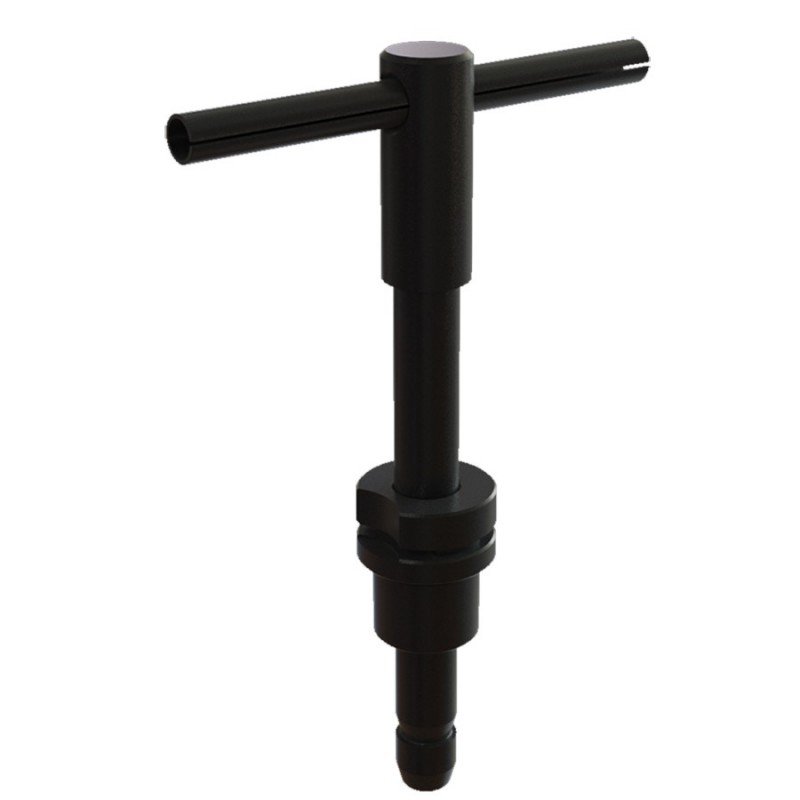

Similar to a standard Jig Pin, except that the pin body is positively retained in a locking bushing. In fully retracted position, the bushing's spring clip snaps into the pin's groove, holding the pin fully retracted by spring force and positively preventing removal.Spring pressure also holds the pin in intermediate extended positions, an advantage especially if the fixture is turned upside down. Like standard Jig Pins, Captive Jig pins have an integral shoulder to keep the handle raised.

Available in pin diameters from 3/16 to 1/2"
Steel Black Oxide Finish

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	Assembly Options	External Diameter	Length	Price
CL-3-LPB CL-3-LPB	Bushing Only	.1868	n/a	£26.06 £31.27 Inc. VAT
CL-4-LPB CL-4-LPB	Bushing Only	.2490	n/a	£26.06 £31.27 Inc. VAT
CL-5A-LPB CL-5A-LPB	Bushing Only	.3115	n/a	£26.06 £31.27 Inc. VAT
CL-6A-LPB CL-6A-LPB	Bushing Only	.3740	n/a	£28.85 £34.62 Inc. VAT
CL-8A-LPB CL-8A-LPB	Bushing Only	.4990	n/a	£33.07 £39.68 Inc. VAT
CL-5-CJP CL-5-CJP	Jig Pin Only	.4995	4	£22.27 £26.72 Inc. VAT
CL-1-CJP CL-1-CJP	Jig Pin Only	.1872	1-7/8	£10.91 £13.09 Inc. VAT
CL-2-CJP CL-2-CJP	Jig Pin Only	.2497	2	£14.59 £17.51 Inc. VAT
CL-3-CJP CL-3-CJP	Jig Pin Only	.3120	2-1/2	£16.13 £19.36 Inc. VAT
CL-4-CJP CL-4-CJP	Jig Pin Only	.3745	3-1/4	£16.98 £20.38 Inc. VAT
CL-1-CJPA CL-1-CJPA	Complete Assembly	.1872	1-7/8	£35.48 £42.58 Inc. VAT
CL-2-CJPA CL-2-CJPA	Complete Assembly	.2497	2	£38.83 £46.60 Inc. VAT
CL-3-CJPA CL-3-CJPA	Complete Assembly	.3120	2-1/2	£39.92 £47.90 Inc. VAT
CL-4-CJPA CL-4-CJPA	Complete Assembly	.3745	3-1/4	£43.76 £52.51 Inc. VAT
CL-5-CJPA CL-5-CJPA	Complete Assembly	.4995	4	£53.45 £64.14 Inc. VAT

Jig Pins datasheet
