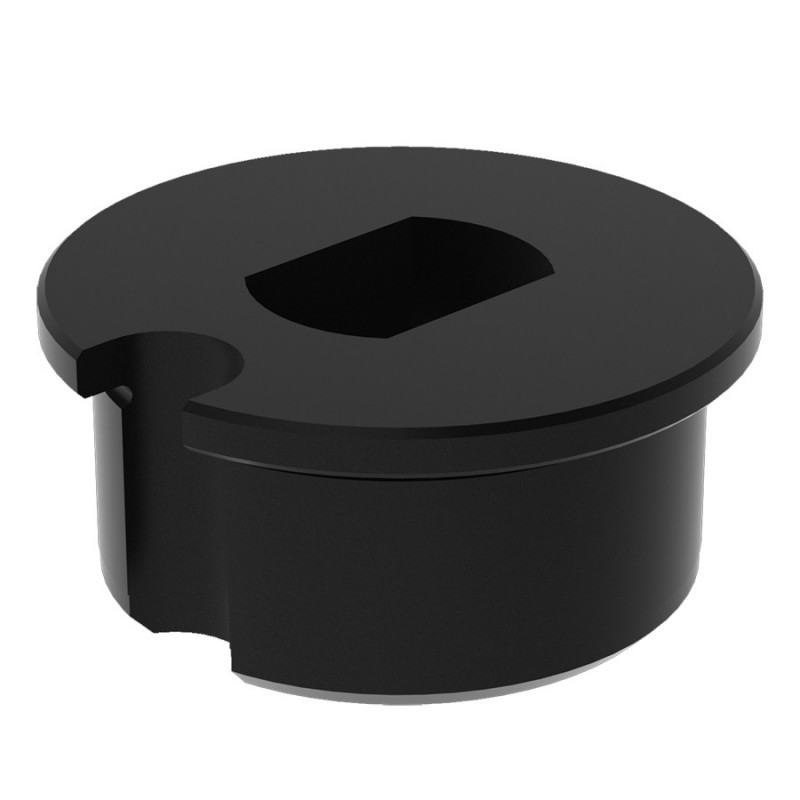

Carr Lane Press Fit Headed Slotted Locator Bushings
Slotted Locator Bushings are compatible with various alignment and locating pins to align two holes without binding. These precision bushings feature a tight tolerance in one direction and full relief in the perpendicular direction. The headed version offers increased resistance to axial loads, with the head either left exposed or recessed by counterboring the installation hole. Available for pin diameters ranging from 3/16" to 1/2". An optional version in hardened 440C stainless steel is also available.
| Part Number | Material Number | Pin Diameter | Price | Add to Parts List |
|---|---|---|---|---|
| CL-3-HSLB | 3/16 | £47.16 £56.59 Inc. VAT |
|
|
| CL-4-HSLB | 1/4 | £47.16 £56.59 Inc. VAT |
|
|
| CL-5-HSLB | 5/16 | £47.16 £56.59 Inc. VAT |
|
|
| CL-6-HSLB | 3/8 | £47.16 £56.59 Inc. VAT |
|
|
| CL-8-HSLB | 1/2 | £47.16 £56.59 Inc. VAT |
|
Carr Lane Press Fit Headed Slotted Locator Bushings
Features
- Steel Black Oxide Finish
- Align two holes without binding
Slotted Locator Bushings can be used with many types of alignment pins and locating pins to align two holes without binding. Precision bushing with a tight tolerance in one direction and full relief in the perpendicular direction, this headed version provides more resistance to axial loads. The head can be left exposed, or recessed by counterboring the installation hole
Options:
- Pin diameter - 3/16" - 1/2"
