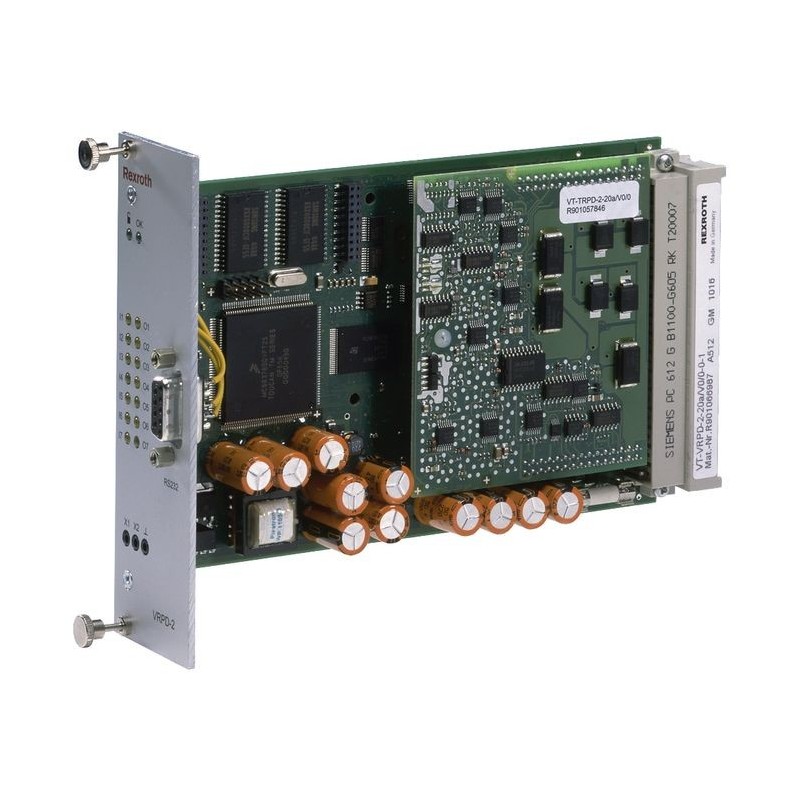

Digital Valve Amplifier for Proportional Directional Valves with Electrical Position Feedback VT-VRPD-2

VT-VRPD-2

Valve amplifiers with electrical position feedback for proportional valves, digital, Euro-card format VT-VRPD-2-2X

For valves:

  • 4WRE 6...2X
  • 4WRE 10...2X
Print page

Description
Downloads
re30126_2013-10

Bosch Rexroth Digital Valve Amplifier for Proportional Directional Valves with Electrical Position Feedback VT-VRPD-2

  • Component series 1X
  • Digital, Euro-card format

Features:

  • Valve selection, configuration and parameterization via PC program BODAC
  • Serial interface and local bus for up to 32 amplifiers
  • Command value input for voltage or current
  • Ramp generator
  • Digital inputs for calling up pre-set command value parameters
  • Enable input and fault output
  • Configurable measuring socket
  • The user-specific data can be exactly reproduced and is protected against unintended or unauthorized adjustment
