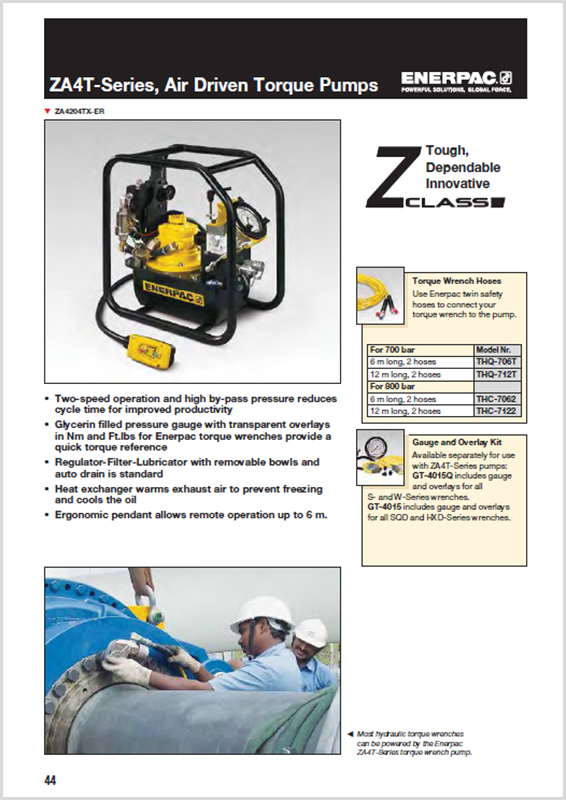

Enerpac ZA4T-Series Air Driven Torque Wrench Pumps

Enerpac ZA4T-Series Air Driven Torque Wrench Pumps

• Reservoir: 2,7 and 6,6 litres
• Flow: 1,0 l/min
• Air Consumption: 600 - 2840 l/min
• Max. Pressure: 700 and 800 bar
• Explosion-proof

Features:

• The ZA4T-Series pump is best suited to power medium to large size torque wrenches
• Two-speed operation and high by-pass pressure reduces cycle time for improved productivity
• Glycerin filled pressure gauge with transparent overlays in Nm and Ft.lbs for Enerpac torque wrenches provide a quick torque reference
• Its high power to weight ratio and compact design make it ideal for applications which require easy transport of the pump
• Regulator-Filter-Lubricator with removable bowls and auto drain is standard
• Heat exchanger warms exhaust air to prevent freezing and cools the oil
• Ergonomic pendant provides remote operation up to 6 m
• Use Enerpac twin safety hoses to connect your torque wrench to the pump
• Gauge and overlay kits available separately for use with ZA4T-Series pumps
• All ZA4T-Series pump models meet CE, CSA and TÜV safety requirements
• The ZA4T-Series pumps are tested and certified according to the Equipment Directive 94 / 9 / EC “ATEX Directive” ZA4T-Series pumps are marked with: Ex II 2 GD ck T4
