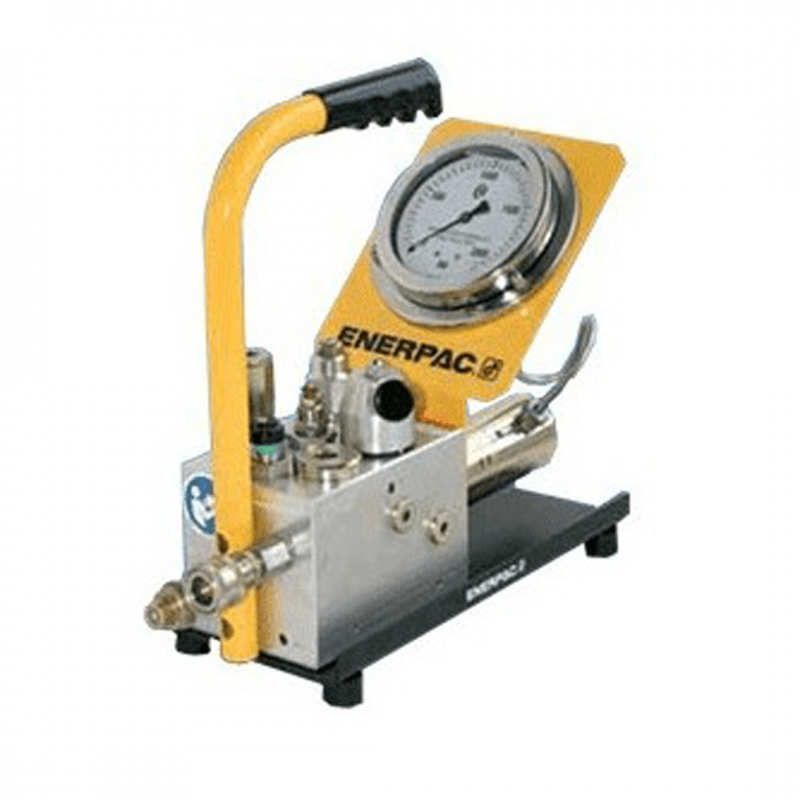

Enerpac PIT-Series Ultra-Booster Tensioner System

Enerpac PIT-Series Ultra-Booster Tensioner System

• Intensification Ratio: 1 : 13
• Max. Output Flow: 15,0 l/min
• Max. Pressure: 2000 bar

Main Ultra Booster applications are:

• Bolt tensioning
• Railroad applications
• Rescue tools
• Jacking applications
• Crimp/cutting systems

Torque & Tensioning Pump Set:

• For ordering convenience the ZE4TW Torque Pump and the PIT-1500 Ultra Booster are available as set and gives you the flexibility for bolting applications that require both torquing and tensioning as for instance in wind turbines*

Flexibility:

• Ultra booster tensioner system works in combination with any hydraulic pump for doubleacting torque wrenches that deliver a continuous oil flow of minimal 2 l/min and a working pressure of 160 bar; ideal to work in combination with the ZE4TW-pump.
• Very flexible solution for all applications that require up to 2000 bar of working pressure

Convenience:

• High portability as the PIT-1500 only weighs 10 kg
• Useable with any electric or pneumatic driven pump and convert it into a ultra-high pressure pump

Technology:

• Preset 1:13 pressure intensifier ratio
• With a 10-micron filter and visual filter condition indicator
• Standard with an easy-to-read 100 mm diameter pressure gauge with 1% accuracy over full scale

Low Investment:

• In situations where both hydraulic torque wrenches and bolt tensioners need to be used, only one pump will be needed instead of two when an ultra booster is used
