Block Cylinders with External Thread Piston Rod

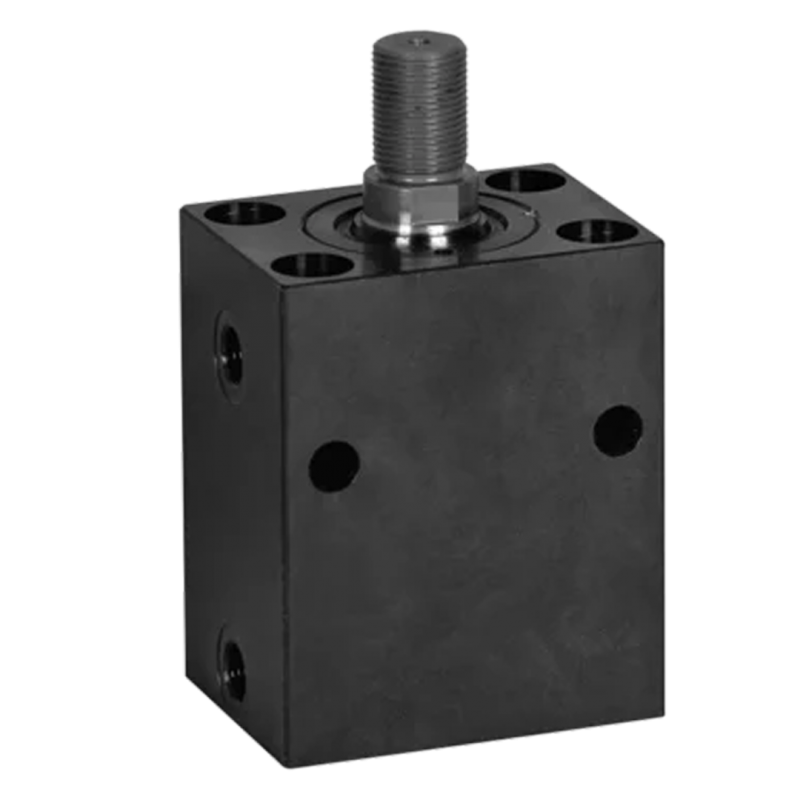

ROEMHELD B1.542 Double-Acting Block Cylinder with Externally Threaded Piston Rod used universally for all hydraulic-operated linear movements
- Operating pressure 500 bar maximum
- Piston diameter ranges from 25 to 63 mm
- Rod diameter ranges from 16 to 40 mm
- Stroke: 50 and 63 mm
- Maximum push force: 24.5 - 155.9 kN
This double-acting block cylinder whose piston rod is provided with an external thread. Fixing elements as for example rod end bearings, which are available as accessory, can be screwed onto the external thread.

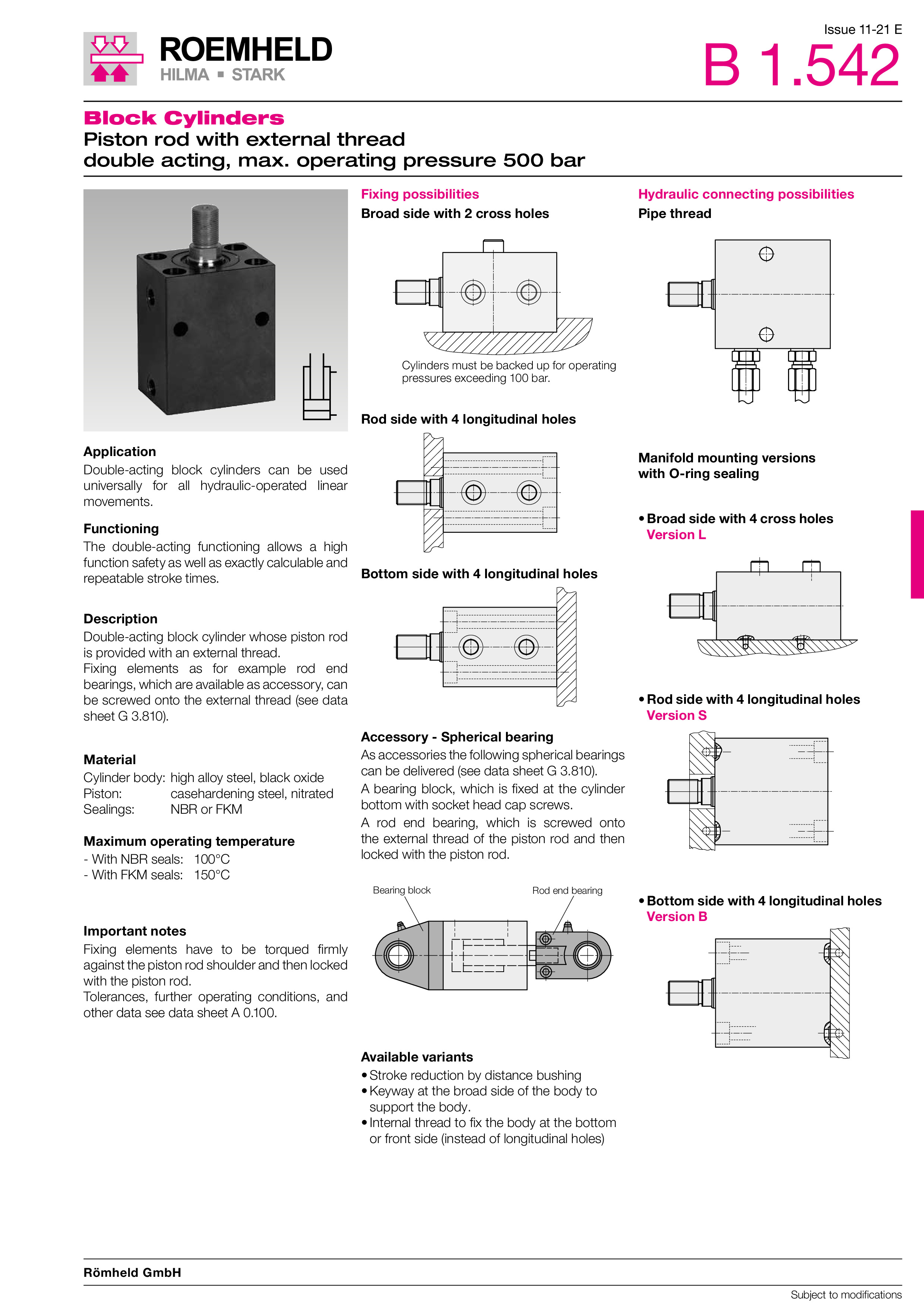

Block Cylinders with External Thread Piston Rod - ROEMHELD B1.542
- Max. operating pressure 500 bar
- Piston diameter: 25 - 63 mm
- Rod diameter: 16 - 40 mm
- Stroke: 50 and 63 mm
- Max. push force: 24.5 - 155.9 kN
Application:
Double-acting block cylinders can be used universally for all hydraulic-operated linear movements.
Functioning:
The double-acting functioning allows a high function safety as well as exactly calculable and repeatable stroke times.
Description:
Double-acting block cylinder whose piston rod is provided with an external thread. Fixing elements as for example rod end bearings, which are available as accessory, can be screwed onto the external thread.
Material:
- Cylinder body: high alloy steel, black oxide
- Piston: casehardening steel, nitrated
- Sealings: NBR or FKM
Maximum operating temperature:
- With NBR seals: 100°C
- With FKM seals: 150°C
Available variants:
- Stroke reduction by distance bushing
- Keyway at the broad side of the body to support the body
- Internal thread to fix the body at the bottom or front side (instead of mounting holes)
