Pull Type Cylinders
ROEMHELD B1.570 Pull-Type Cylinders, Single-Acting with Spring Return.
- Operating pressure 500 bar maximum
- Piston diameter ranges from 16 to 100 mm
- Rod diameter ranges from 10 to 63 mm
- Stroke ranges from 8 to 12 mm
- Maximum pulling force: 6 - 235 kN
Description
Downloads

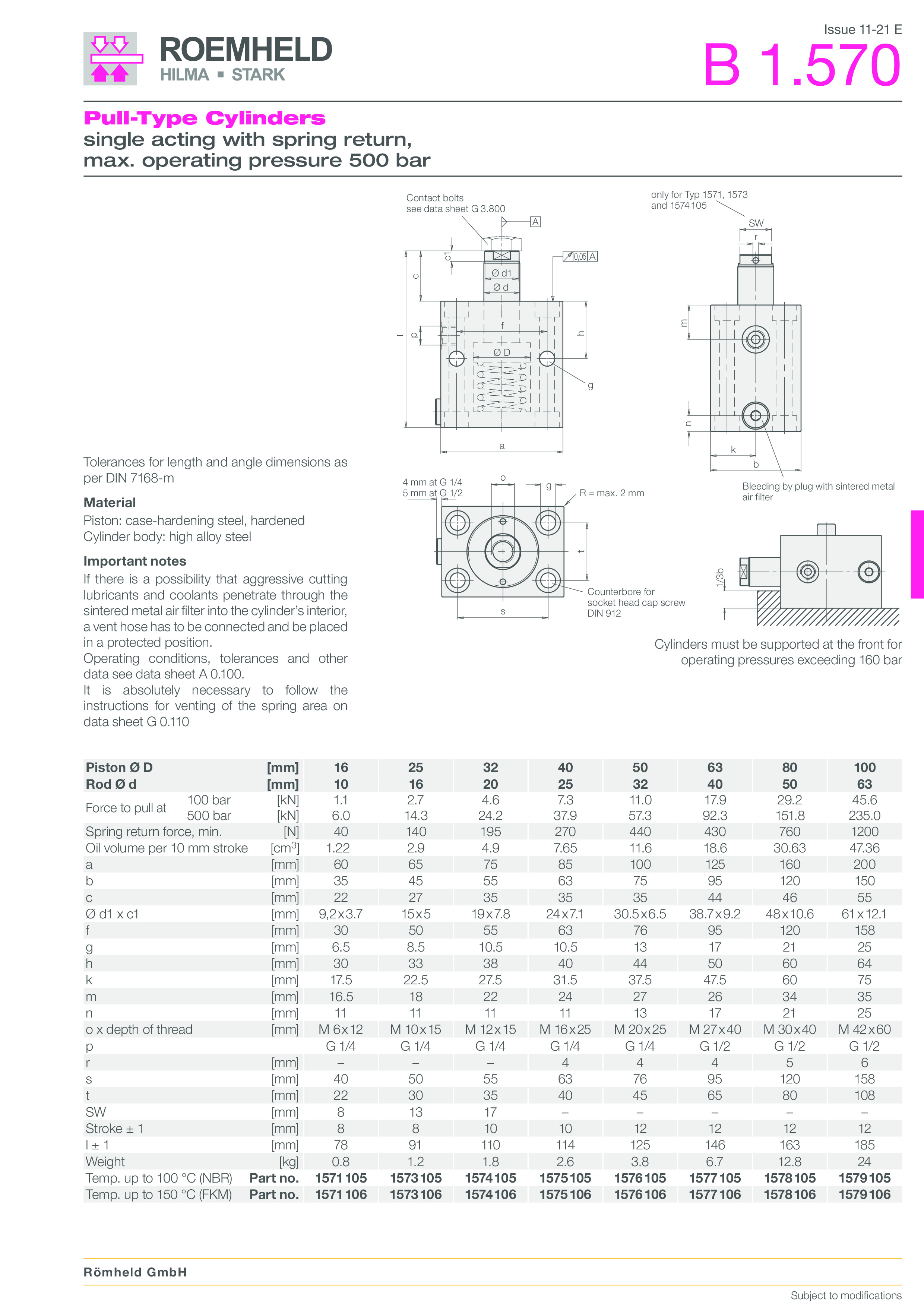

Pull Type Cylinders - ROEMHELD B1.570
- Max. operating pressure 500 bar
- Piston diameter: 16 - 100 mm
- Rod diameter: 10 - 63 mm
- Stroke: 8 - 12 mm
- Max. pulling force: 6 - 235 kN
Single Acting Pull-type Cylinder with Spring Return
Material:
- Piston material: case-hardening steel, hardened
- Cylinder body: high alloy steel or GGG-40
Important notes:
If there is a possibility that aggressive cutting lubricants and coolants penetrate through the sintered metal air filter into the cylinder's interior, a vent hose has to be connected and be placed in a protected position. Operating conditions, tolerances and other data see data sheet A 0.100. It is absolutely necessary to follow the instructions for venting of the spring area on datasheet G 0.110.
