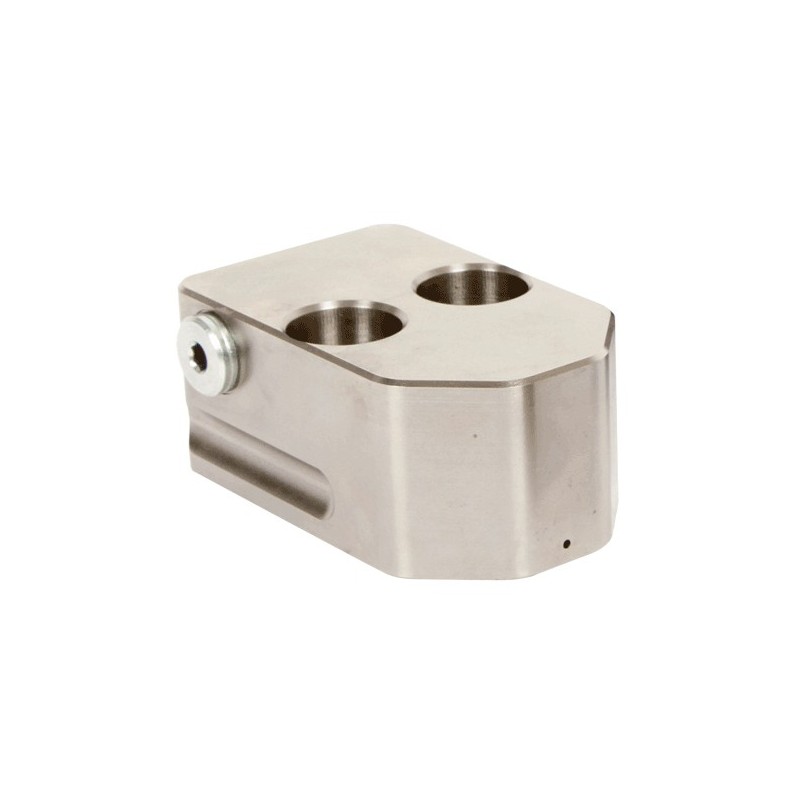

Compact Sliding Clamp Clamping Block

Compact Sliding Clamp Clamping Block - HILMA WZ 3.2202

• Max. clamping force: 19.2 .. 78 kN
• For T-slot: 18 .. 28 mm
• Clamping stroke: 8 .. 12 mm
• Max. temperature 120°C
• Max. operating pressure 400 bar

Advantages:

• High clamping force in combination with small size and low weight
• Ergonomic T-slot adapter for easy insertion
• High-quality surface protection on the clamping block
• Clamping block rounded and thus optimum adaptation in narrow construction spaces
• Safe handling by special recessed grip
• T-slot 14, 18, 22 and 28 mm are available
• Total stroke 8 and 12 mm
• Die standardisation with regard to the width and depth is not required
• Easy to retrofit

Application:

The "compact" sliding clamp is a hydraulic clamping element, used with minimum space requirements for clamping and locking on machines and plants, on press bed and ram. Due to the manageable and rounded design, "compact" sliding clamps are especially suitable where space is limited as, for example, on high-speed punching presses. The use is possible at ambient temperatures up to a maximum of 120 °C.

Description:

Manual positioning of the sliding clamp in the T-slots of the press ram or bed. Clamping on the die clamping edge by the application of hydraulic pressure to the piston and unclamping by spring force. The “compact” sliding clamp consists of a hydraulic clamping block which will be fixed with two screws to a T-slot adapter. The clamping block can also be directly screwed without T-slot adapter and can be ordered separately.
