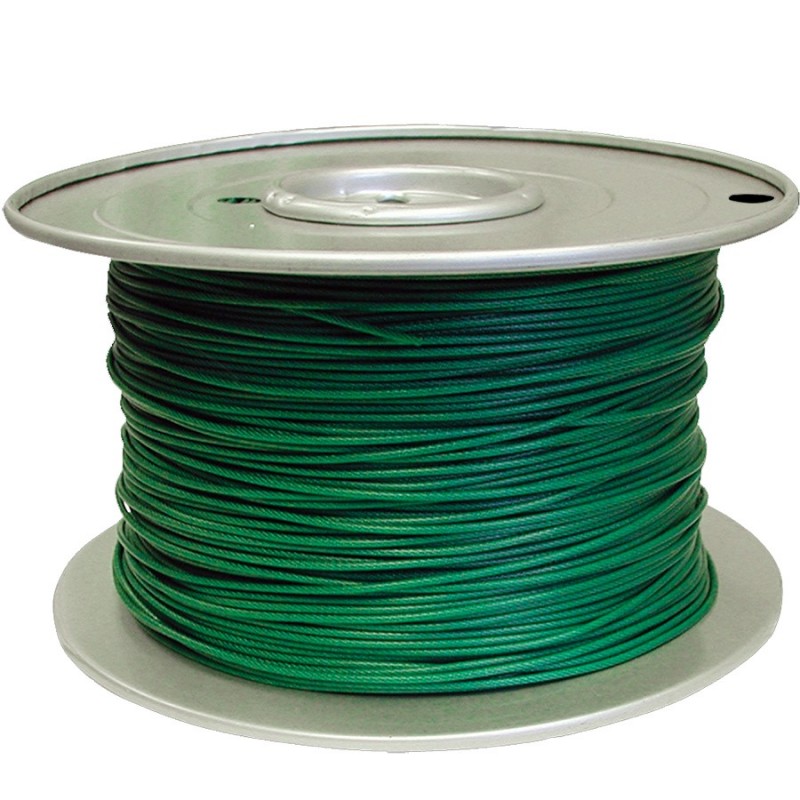

High-strength stranded wire cable with a green nylon coatin and a choice of four cable diameters
| Part Number | Material Number | Material | Cable Length | Cable Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-4-C-1000FT | Steel | 1000 FT | .187 | £840.65 £1,008.78 Inc. VAT |
|
|
| CL-2-C-50FT | Steel | 50 FT | .062 | £30.83 £37.00 Inc. VAT |
|
|
| CL-2-C-100FT | Steel | 100 FT | .062 | £56.04 £67.25 Inc. VAT |
|
|
| CL-3-C-50FT | Steel | 50 FT | .094 | £38.76 £46.51 Inc. VAT |
|
|
| CL-2-C-250FT | Steel | 250 FT | .062 | £124.12 £148.94 Inc. VAT |
|
|
| CL-3-C-100FT | Steel | 100 FT | .094 | £70.44 £84.53 Inc. VAT |
|
|
| CL-1-C-50FT | Steel | 50 FT | .044 | £22.42 £26.90 Inc. VAT |
|
|
| CL-2-C-500FT | Steel | 500 FT | .062 | £224.20 £269.04 Inc. VAT |
|
|
| CL-2-C-1000FT | Steel | 1000 FT | .062 | £344.24 £413.09 Inc. VAT |
|
|
| CL-3-C-250FT | Steel | 250 FT | .094 | £160.12 £192.14 Inc. VAT |
|
|
| CL-4-C-50FT | Steel | 50 FT | .187 | £65.66 £78.79 Inc. VAT |
|
|
| CL-1-C-100FT | Steel | 100 FT | .044 | £40.04 £48.05 Inc. VAT |
|
|
| CL-1-C-250FT | Steel | 250 FT | .044 | £88.06 £105.67 Inc. VAT |
|
|
| CL-3-C-500FT | Steel | 500 FT | .094 | £288.22 £345.86 Inc. VAT |
|
|
| CL-4-C-100FT | Steel | 100 FT | .187 | £118.49 £142.19 Inc. VAT |
|
|
| CL-1-C-500FT | Steel | 500 FT | .044 | £160.12 £192.14 Inc. VAT |
|
|
| CL-3-C-1000FT | Steel | 1000 FT | .094 | £473.96 £568.75 Inc. VAT |
|
|
| CL-4-C-250FT | Steel | 250 FT | .187 | £268.22 £321.86 Inc. VAT |
|
|
| CL-1-C-1000FT | Steel | 1000 FT | .044 | £267.40 £320.88 Inc. VAT |
|
|
| CL-4-C-500FT | Steel | 500 FT | .187 | £480.38 £576.46 Inc. VAT |
|
|
| CL-2-SC-500FT | Stainless Steel | 500 FT | .062 | £448.34 £538.01 Inc. VAT |
|
|
| CL-3-SC-100FT | Stainless Steel | 100 FT | .094 | £147.33 £176.80 Inc. VAT |
|
|
| CL-3-SC-250FT | Stainless Steel | 250 FT | .094 | £331.46 £397.75 Inc. VAT |
|
|
| CL-4-SC-50FT | Stainless Steel | 50 FT | .187 | £136.10 £163.32 Inc. VAT |
|
|
| CL-2-SC-1000FT | Stainless Steel | 1000 FT | .062 | £800.62 £960.74 Inc. VAT |
|
|
| CLL-3-SC-500FT | Stainless Steel | 500 FT | .094 | £602.06 £722.47 Inc. VAT |
|
|
| CL-4-SC-100FT | Stainless Steel | 100 FT | .187 | £246.60 £295.92 Inc. VAT |
|
|
| CL-3-SC-1000FT | Stainless Steel | 1000 FT | .094 | £1,092.03 £1,310.44 Inc. VAT |
|
|
| CL-4-SC-250FT | Stainless Steel | 250 FT | .187 | £558.83 £670.60 Inc. VAT |
|
|
| CL-4-SC-500FT | Stainless Steel | 500 FT | .187 | £1,013.57 £1,216.28 Inc. VAT |
|
|
| CL-2-SC-50FT | Stainless Steel | 50 FT | .062 | £60.04 £72.05 Inc. VAT |
|
|
| CL-4-SC-1000FT | Stainless Steel | 1000 FT | .187 | £1,841.42 £2,209.70 Inc. VAT |
|
|
| CL-2-SC-100FT | Stainless Steel | 100 FT | .062 | £109.20 £131.04 Inc. VAT |
|
|
| CL-2-SC-250FT | Stainless Steel | 250 FT | .062 | £248.18 £297.82 Inc. VAT |
|
|
| CL-3-SC-50FT | Stainless Steel | 50 FT | .094 | £81.68 £98.02 Inc. VAT |
|
High-strength stranded wire cable with a green nylon coating. Choice of four cable diameters. Cable size 1 is made of stainless steel. Size 2, 3, and 4 are available i either galvanised steel or stainless steel. Cable is available in cut pieces (inch or mm), in bulk lengths, (feet or meters, 10ft/3m minimum), or in 1000-ft rolls. Cut pieces are held to a ± 1/4" length to tolerance up to 24" long
Examples:
CL-2-C-12.0 (Cut piece, #2 cable, 12" long)
CL-2-C-350MM (Cut piece, #2 cable, 350mm long)
CL-2-C-25FT (Bulk length, #2 cable, 25' long)
CL-2-C-10M (Bulk length, #2 cable, 10 meters long)
CL-2-C-100FT (1000 ft roll, #2 cable)
| Quantity | Unit discount | You Save |
|---|
Ferrules are for crimping on our nylon-coated cable to make a loop, available for all four standard cable sizes
Terminals are for crimping on our nylon-coated cable, to allow attaching the end with a screw
Cable Rings allow attaching Cable Assemblies to a diameter or radial groove and can be used with cable sizes #1, #2, and #3
Cable Tabs attach to our nylon-coated cable, to allow attaching the end with a screw, available in teardrop and rectangular shape
Plier-type cable crimping tool designed for manually crimping terminals and ferrules on cables. The standard crimping tool shown below can crimp #1 or #2 cables for ferrules CL-1-F, CL-2-F, and CL-4-F. All Carr Lane crimping tools are capable of bending, cutting, stripping, and crimping our nylon-coated cables and other electrical wiring. The handheld, manual crimpers provide enhanced mobility, making it easier to crimp cable and wiring in hard-to-reach areas. Additionally these Carr Lane crimping tools offer a user-friendly and effective solution to meet your specific application needs.
Ferrules are for crimping on our nylon-coated cable to make a loop, available for all four standard cable sizes
Terminals are for crimping on our nylon-coated cable, to allow attaching the end with a screw
Marine detent pins are quick-release pins used in applications where grip length isn't important. These alignment pins are are equipped with a on spring-loaded locking ball and has a ring rather than a solid shoulder. They are made to withstand extra corrosion resistance therefore are made of 316 stainless steel. The locking balls use spring force to lock the pin in place and doesn't use positive locking like a ball lock pin. Using these detent pins is easy, simply push the pin to insert and pull to remove.
Plier-type cable crimping tool designed for manually crimping terminals and ferrules on cables. The standard crimping tool shown below can crimp #1 or #2 cables for ferrules CL-1-F, CL-2-F, and CL-4-F. All Carr Lane crimping tools are capable of bending, cutting, stripping, and crimping our nylon-coated cables and other electrical wiring. The handheld, manual crimpers provide enhanced mobility, making it easier to crimp cable and wiring in hard-to-reach areas. Additionally these Carr Lane crimping tools offer a user-friendly and effective solution to meet your specific application needs.
