Hanging Carrying Consoles

HILMA WZ 8.18350 Carrying Consoles for easy and efficient die change on the press bed

  • Load/pair : 5 - 30 kN
  • Length of support: 500 - 1250 mm

Description
Downloads

Hanging Carrying Consoles - HILMA WZ 8.18350

  • Easy and safe die change
  • Safe handling requiring only a low degree of effort
  • Reduced downtimes and minimised set-up times leading to more efficient use of the machine
  • Load/pair : 5 - 30 kN
  • Length of support: 500 - 1250 mm

Description:

Hanging consoles may be used for several presses. In this case, an additional set of hooks is required

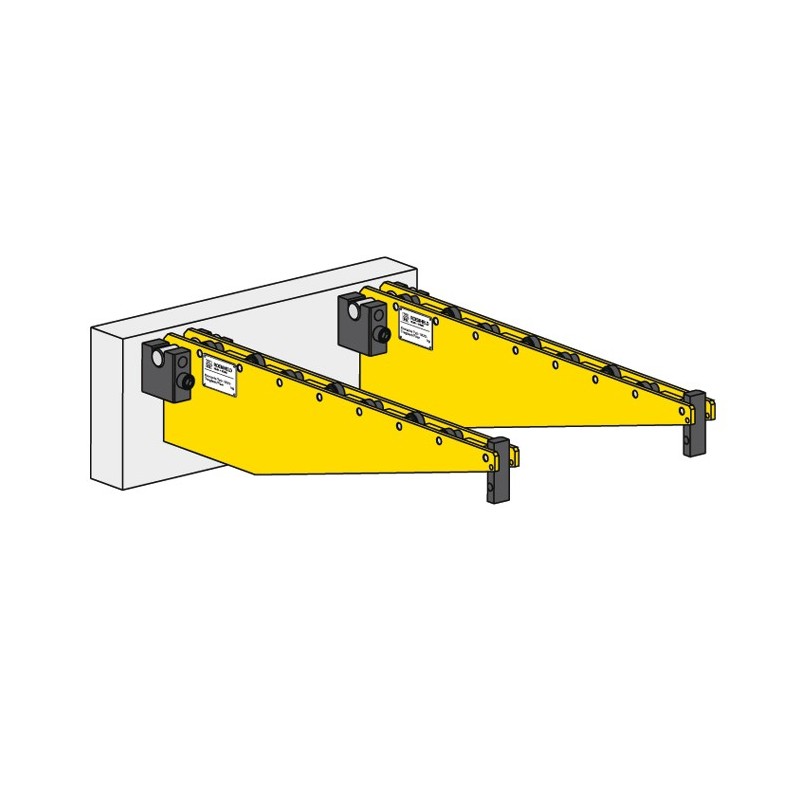

HILMA Hanging Carrying Consoles [WZ 8.18350] are hung in the hooks on the die changing side of the press. The hooks are supplied with the consoles. The consoles are used as a pair only. Their size must be selected to suit the highest die weight. The die is loaded onto the consoles using a crane or a forklift truck. The carrying rollers consist of high-strength hardened needle bearings. The end stop can be bypassed in one direction only.


If you can’t find what you are looking for, need product pricing, delivery, technical support or associated services CONTACT HYQUIP or call our sales office +44 (0)1204 699959
