Cart Modules WMS

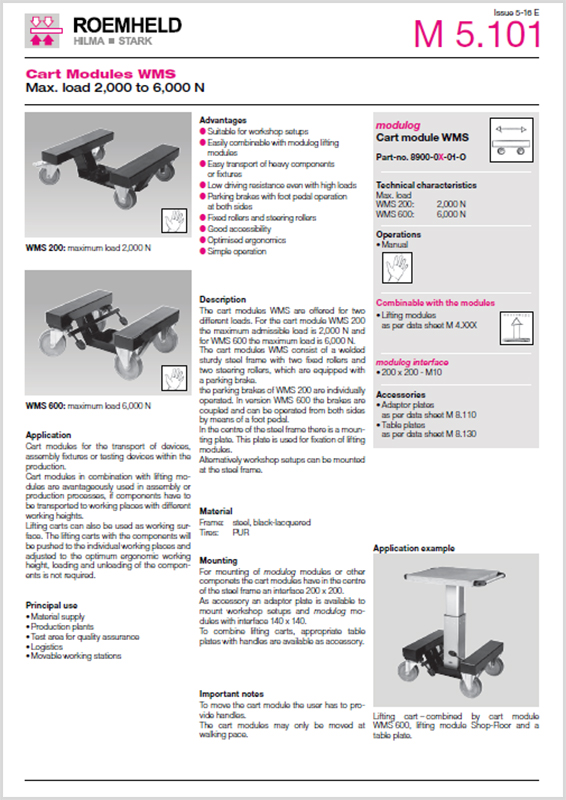

Cart Modules WMS - ROEMHELD M5.101

• Max. load 2,000 to 6,000 N
• Manually operated

Advantages:

• Suitable for workshop setups
• Easily combinable with modulog lifting modules
• Easy transport of heavy components or fixtures
• Low driving resistance even with high loads
• Parking brakes with foot pedal operation at both sides
• Fixed rollers and steering rollers
• Good accessibility
• Optimised ergonomics
• Simple operation

Application:

Cart modules for the transport of devices, assembly fixtures or testing devices within the production. Cart modules in combination with lifting modules are avantageously used in assembly or production processes, if components have to be transported to working places with different working heights. Lifting carts can also be used as working surface. The lifting carts with the components will be pushed to the individual working places and adjusted to the optimum ergonomic working height, loading and unloading of the components is not required.

Principal use:

• Material supply
• Production plants
• Test area for quality assurance
• Logistics
• Movable working stations

Description:

The cart modules WMS are offered for two different loads. For the cart module WMS 200 the maximum admissible load is 2,000 N and for WMS 600 the maximum load is 6,000 N. The cart modules WMS consist of a welded sturdy steel frame with two fixed rollers and two steering rollers, which are equipped with a parking brake. The parking brakes of WMS 200 are individually operated. In version WMS 600 the brakes are coupled and can be operated from both sides by means of a foot pedal. In the centre of the steel frame there is a mounting plate. This plate is used for fixation of lifting units. Alternatively workshop setups can be mounted at the steel frame.
