Z2S 22 Series 5x
Pilot operated On/off check valves of sandwich plate design Z2S 22
- Size 25
- Component series 5X
- Maximum operating pressure 315 bar
- Maximum flow 450 l/min
Description
Downloads

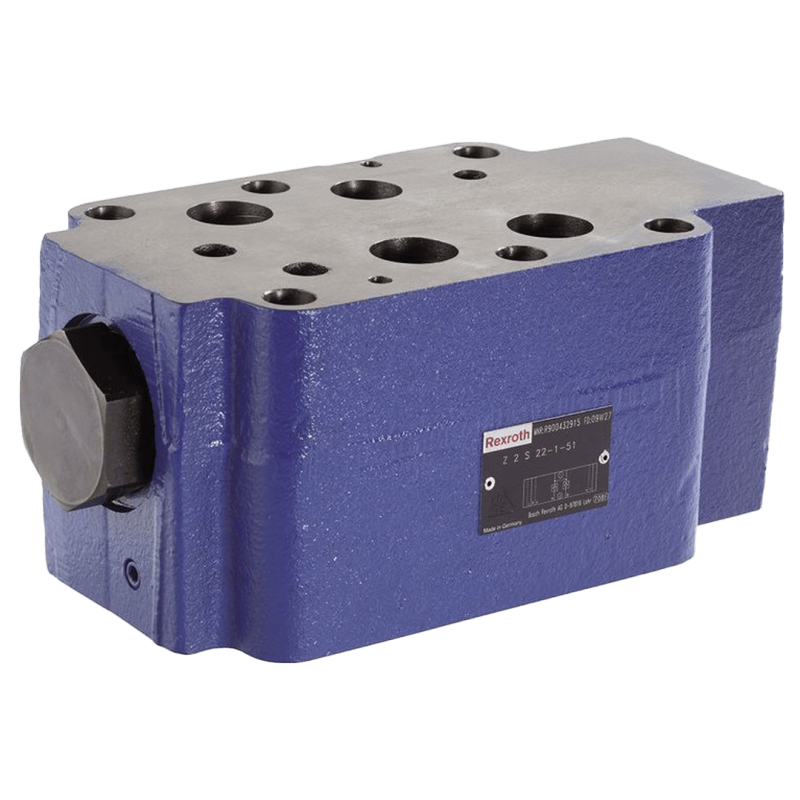

Bosch Rexroth Check Valves, Pilot Operated Type Z2S 22
- Size: 25
- Component series: 5X
- Maximum operating pressure: 315 bar
- Maximum flow: 450 l/min
Features:
- Sandwich plate valve for use in vertical stackings
- Porting pattern according to ISO 4401-08-08-0-05 and NFPA T3.5.1 R2-2002 D08
- For the leakage-free blocking of one or two actuator ports, optional
- Various cracking pressures
- Pre-opening standard
- Check valve installation sets available individually
- Special versions on request
