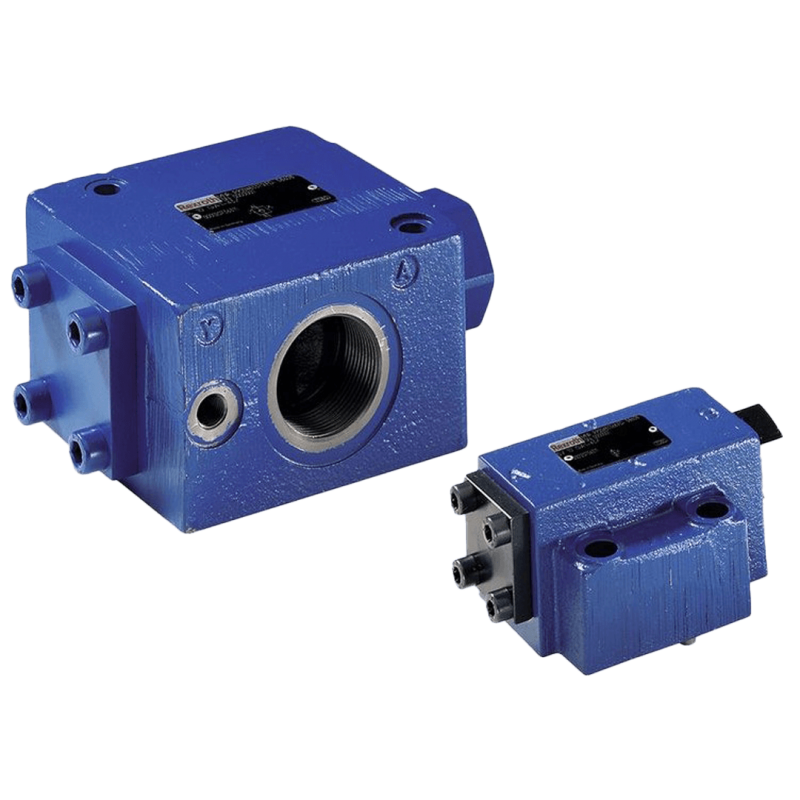

Bosch Rexroth Check Valves, Pilot Operated Type SL 10 to 32

SL & SV 10 to 32 Series 4x

Pilot operated On/off check valves of sandwich plate design SL & SV 10 to 32

  • Size 10, 20, and 32
  • Component series 4X
  • Maximum operating pressure 350 bar
  • Maximum flow 550 l/min

Description
Downloads

Bosch Rexroth Check valves, Pilot Operated Type SL & SV 10 to 32

  • Size 10, 20, and 32
  • Component series 4X
  • Maximum operating pressure 350 bar
  • Maximum flow 550 l/min

Features:

  • For sub plate mounting Porting pattern– ISO 5781-06-07-0-16 (NG10)– ISO 5781-08-10-0-16 (NG20)– ISO 5781-09-13-0-16 (NG32)
  • For threaded connection
  • Attachment possibility for directional spool valve or directional seat valve, optional
  • With internal or external pilot oil return, optional Version with pre-opening for dampened release, optional
  • Various cracking pressures, optional Check valve cartridge separately available
  • Corrosion-resistant housing design, optional
