Z2S 6 Series 6x
The isolator valve type Z2S is a releasable check valve in sandwich plate design
- Size 6
- Component series 6X
- Maximum operating pressure 350 bar
- Maximum flow 80 l/min
Products

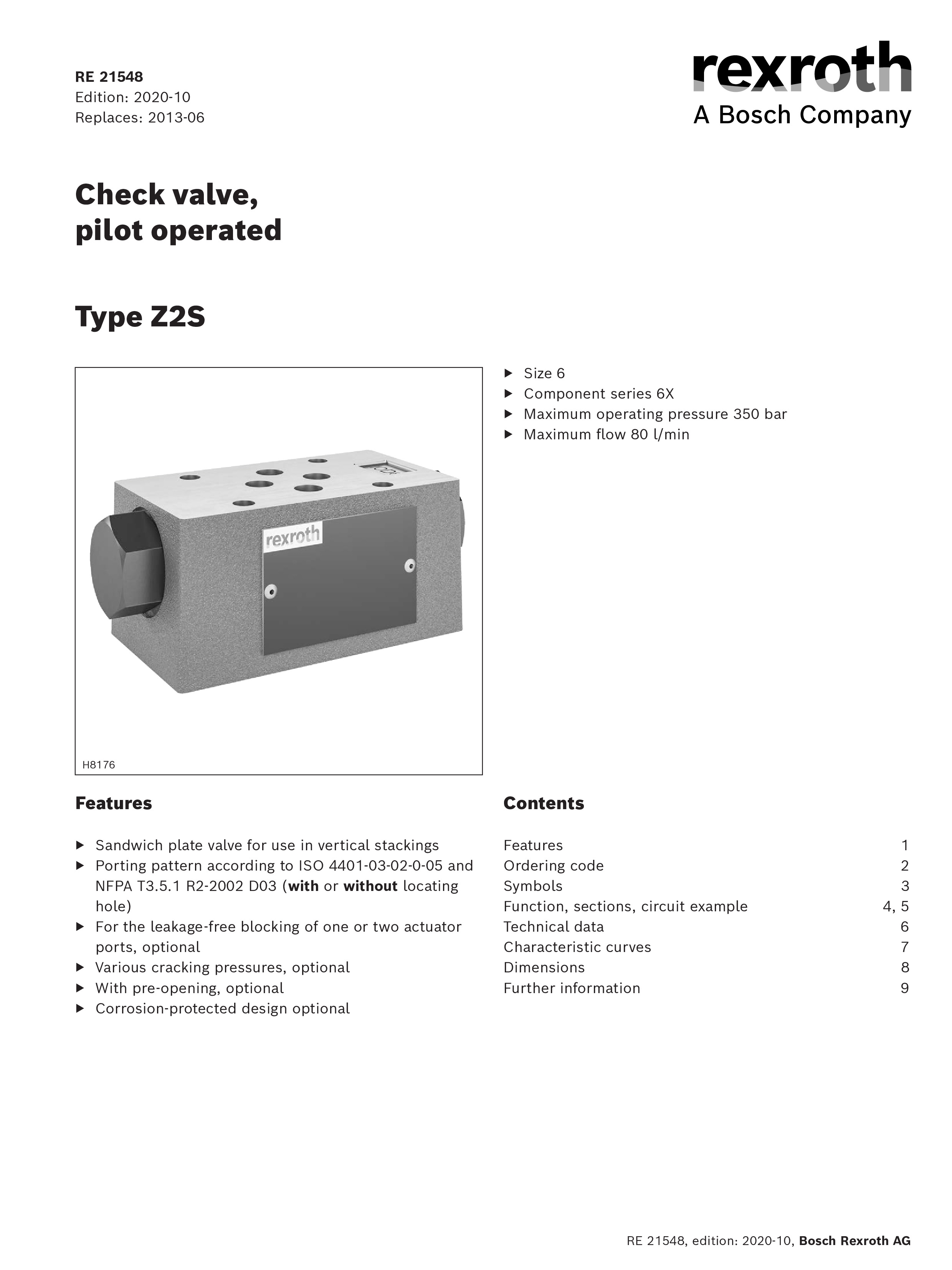

Downloads
Description
Part Number | Material Number | Seals | Cracking Pressure | Price | Add to Parts List |
---|---|---|---|---|---|
Z2S 6B1-6X/ | R900347501 | NBR | 1.5 bar | £334.94 £401.93 Inc. VAT |
|
Z2S 6A1-6X/ | R900347498 | NBR | 1.5 bar | £334.93 £401.92 Inc. VAT |
|
Z2S 6-1-6X/ | R900347495 | NBR | 1.5 bar | £334.93 £401.92 Inc. VAT |
|
Z2S 6-2-6X/ | R900347496 | NBR | 3 bar | £334.94 £401.93 Inc. VAT |
|
Z2S 6B2-6X/ | R900347502 | NBR | 3 bar | £334.94 £401.93 Inc. VAT |
|
Z2S 6A2-6X/ | R900347499 | NBR | 3 bar | £334.94 £401.93 Inc. VAT |
|
Z2S 6A1-6X/V | R900347507 | FKM | 1.5 bar | £334.94 £401.93 Inc. VAT |
|
Z2S 6-2-6X/V | R900347505 | FKM | 3 bar | £334.94 £401.93 Inc. VAT |
|
Z2S 6-1-6X/V | R900347504 | FKM | 1.5 bar | £334.94 £401.93 Inc. VAT |
|

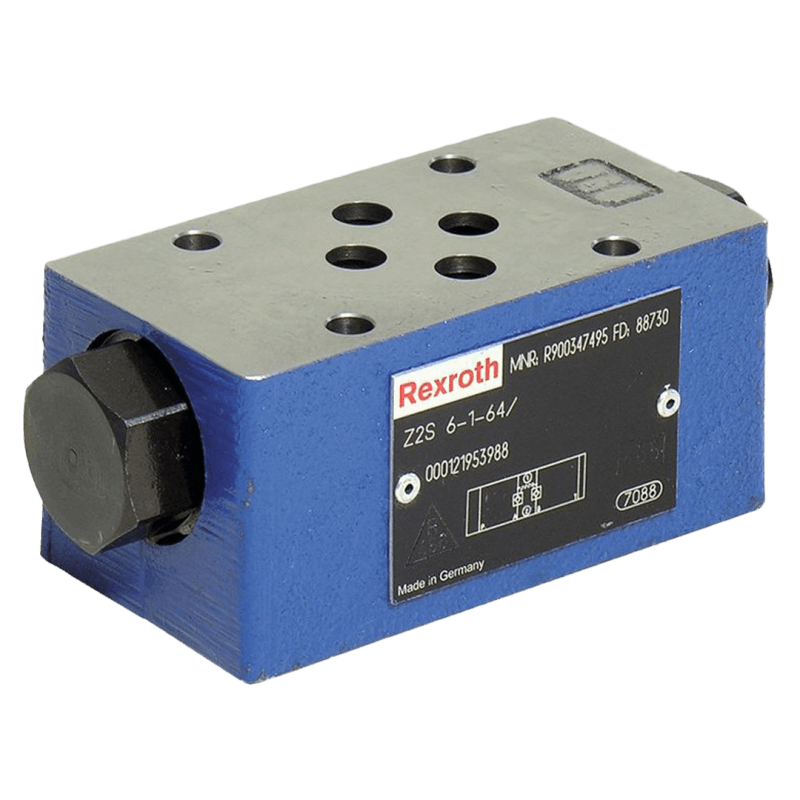

Bosch Rexroth Check Valves, Pilot Operated Type Z2S 6
- Size 6
- Component series 6X
- Maximum operating pressure 350 bar
- Maximum flow 80 l/min
Features:
- Sandwich plate valve for use in vertical stackings
- Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03 (with or without locating hole)
- For the leakage-free blocking of one or two actuator ports, optional
- Various cracking pressures, optional
- With pre-opening, optional
- Corrosion-protected design optional
