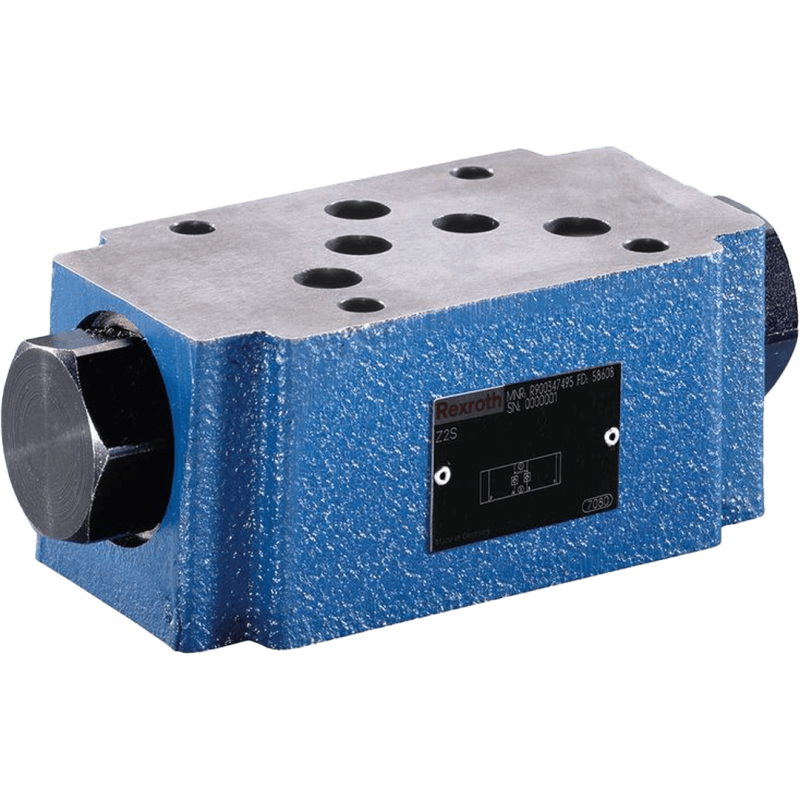

Bosch Rexroth Check Valve, Pilot Operated Type Z2S 10

Z2S 10 Series 3x

The isolator valve type Z2S is a releasable check valve in sandwich plate design

  • Size 10
  • Component series 3X
  • Maximum operating pressure 350 bar
  • Maximum flow 160 l/min
Print page

Products
Downloads
Description
Part Number Material Number Seals Cracking Pressure Price Add to Parts List
Z2S 10B1-3X/ Z2S10B1-3X/ R900407434 NBR 1.5 bar £605.47
£726.56 Inc. VAT
Z2S 10A1-3X/ Z2S10A1-3X/ R900407424 NBR 1.5 bar £605.47
£726.56 Inc. VAT
Z2S 10-2-3X/ Z2S10-2-3X/ R900421985 NBR 3 bar £605.47
£726.56 Inc. VAT
Z2S 10-1-3X/ Z2S10-1-3X/ R900407394 NBR 1.5 bar £605.47
£726.56 Inc. VAT
Z2S 10-1-3X/V Z2S10-1-3X/V R900407439 FKM 1.5 bar £605.47
£726.56 Inc. VAT
RE_21553_2021-01

Bosch Rexroth Check Valves Pilot Operated Z2S 10

  • Size: 10
  • Component series: 3X
  • Maximum operating pressure: 315 bar
  • Maximum flow: 120 l/min

Features:

  • Sandwich plate valve for use in vertical stackings
  • Porting pattern according to ISO 4401-05-04-0-05, ISO 4401-05-05-0-05 and NFPA T3.5.1 R2-2002 D05
  • For the leakage-free blocking of one or two actuator ports, optional
  • Various cracking pressures
  • With pre-opening (standard); without pre-opening (optional)
  • Check valve installation sets available individually
  • Special versions upon request
