Clamping Bar with Built-in Piston

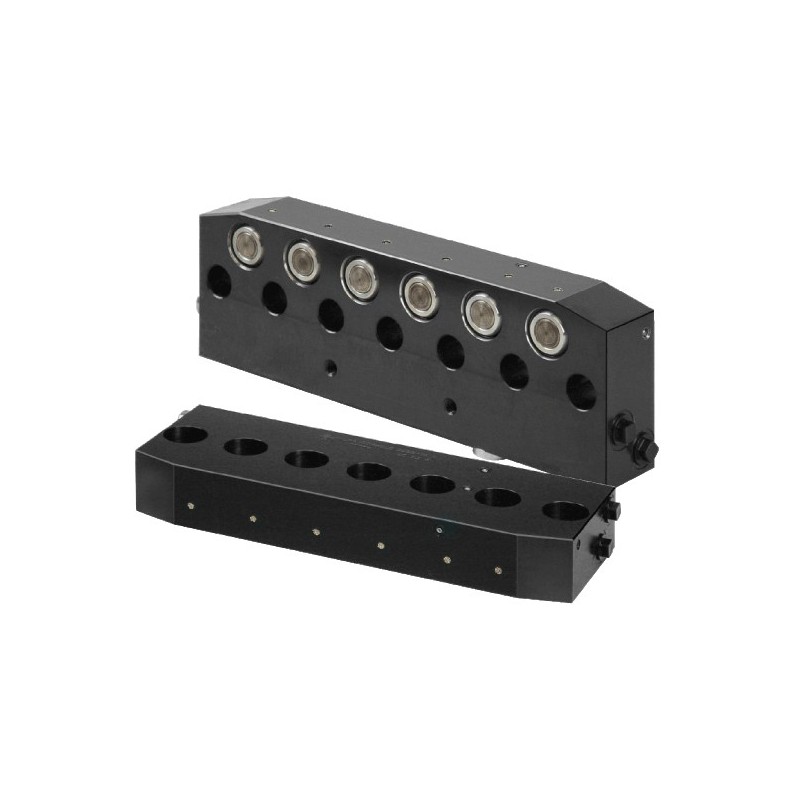

HILMA WZ 2.2096 Clamping Bars permanently installed on press beds and rams, used on machines and plants for clamping and locking.
- Max. clamping force: 38.6 - 116 kN
- Number of pistons: 2 - 6
- Stroke: 8 mm
- Length: 150 - 270 mm
Clamping Bar with Built-in Piston - HILMA WZ 2.2096
- Max. clamping force: 38.6 - 116 kN
- Number of pistons: 2 - 6
- Stroke: 8 mm
- Length: 150 - 270 mm
Applications:
- Stationary installed on press beds and rams
- On machines and equipment for clamping and locking
- Clamping force up to 35 kN, piston stroke 6 mm
Special features:
- Piston stroke 6 mm
- Very flat and compact design
- The full length of the stroke may be used
- Easy fastening
- Rapid and easy retrofit
Function:
The clamping bar is mounted on the press bed or ram using a spacer ledge. Clamping is carried out on the die clamping edge by applying hydraulic pressure to the 5 pistons which are arranged side by side with a pressure medium and mechanical unclamping by a spring return. Hydraulic oil is supplied through G¼ ports provided on both sides. Flat design with die inlet chamfers. Clamping force up to 35 kN uniformly distributed over 5 pistons. When using several clamping bars in a row, the elements are interconnected by means of hoses or pipes.
