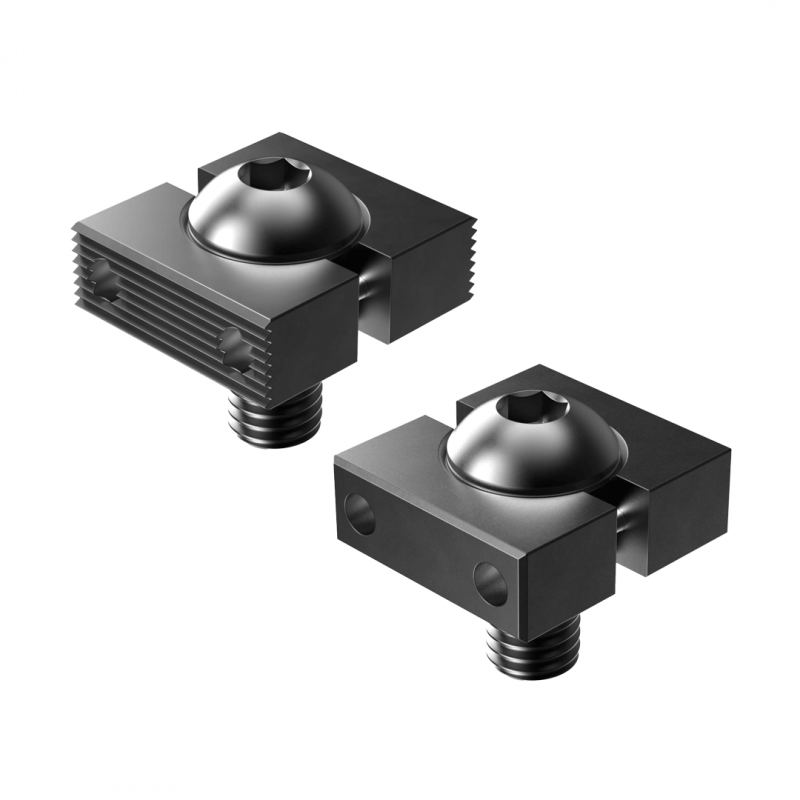

Carr Lane Tiny Vise™ Double Edge Clamps - Double Flat Jaws
| Part Number | Material Number | Metric or Imperial | Jaw Type | Approx. Clamping Force in TRQ (lbs) | Clamp Type | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|

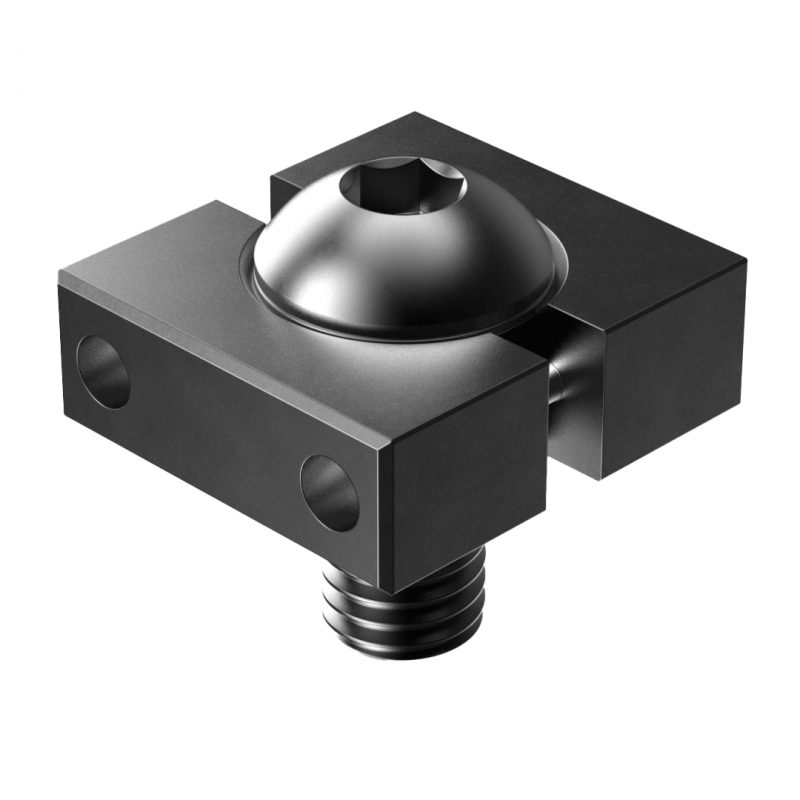

| CLM-65-TV | Metric | Double Flat Smooth Jaws for Downthrust Force | 750 | A Thread - M10 B - .438 Maximum Travel - .105 | £69.02 £82.82 Inc. VAT |
|
|
| CLM-85-TV | Metric | Double Flat Smooth Jaws for Downthrust Force | 1100 | A Thread - M12 B - .500 Maximum Travel - .114 | £78.59 £94.31 Inc. VAT |
|
|
| CLM-55-TV | Metric | Double Flat Smooth Jaws for Downthrust Force | 450 | A Thread - M8 B - .375 Maximum Travel - .096 | £68.65 £82.38 Inc. VAT |
|
|
| CLM-105-TV | Metric | Double Flat Smooth Jaws for Downthrust Force | 2000 | A Thread - M16 B - .625 Maximum Travel - .120 | £96.54 £115.85 Inc. VAT |
|
|

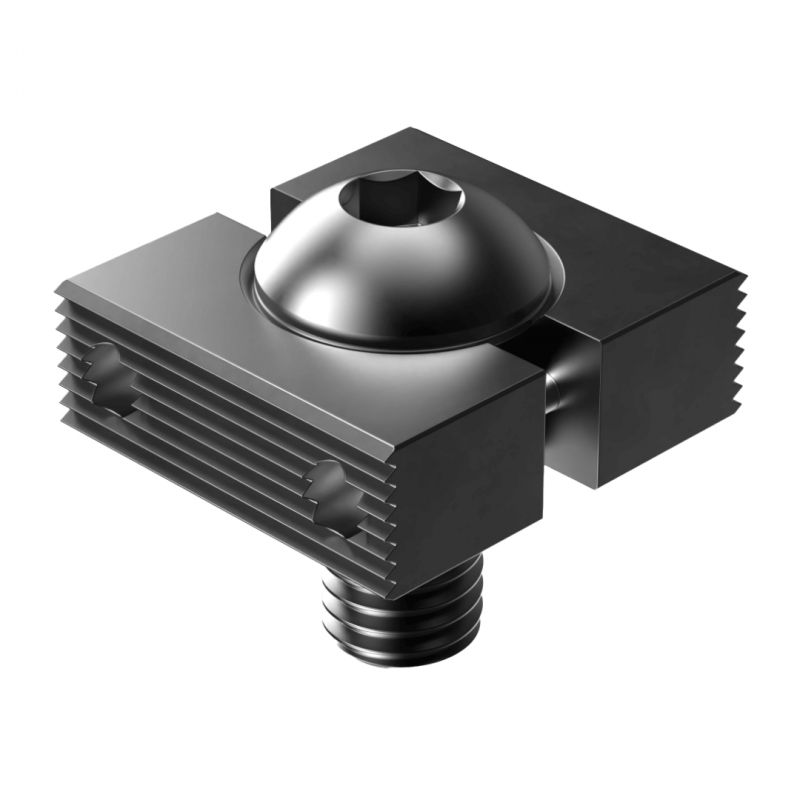

| CLM-160-TV | Metric | Double Flat Serrated Jaws for Downthrust Force | 4000 | A Thread - M24 B - 1.000 Maximum Travel - .138 | £114.06 £136.87 Inc. VAT |
|
|
| CLM-80-TV | Metric | Double Flat Serrated Jaws for Downthrust Force | 1100 | A Thread - M12 B - .500 Maximum Travel - .114 | £81.66 £97.99 Inc. VAT |
|
|
| CLM-50-TV | Metric | Double Flat Serrated Jaws for Downthrust Force | 450 | A Thread - M8 B - .375 Maximum Travel - .096 | £71.92 £86.30 Inc. VAT |
|
|
| CLM-100-TV | Metric | Double Flat Serrated Jaws for Downthrust Force | 2000 | A Thread - M16 B - .625 Maximum Travel - .120 | £91.84 £110.21 Inc. VAT |
|
|
| CLM-60-TV | Metric | Double Flat Serrated Jaws for Downthrust Force | 750 | A Thread - M10 B - .438 Maximum Travel - .105 | £76.27 £91.52 Inc. VAT |
|
Carr Lane Tiny Vise™ Double Edge Clamps - Double Flat Jaws
Double edge clamps allow clamping two workpieces at the same time with equal force, these mini edge clamps grip the side of a workpiece to keep the top clear for machining. Clamping force is applied by positive screw action with the easy turn of a hex wrench (not with an unreliable, unsafe eccentric cam). A high-strength cap screw and Thrust Washer engage a mating offset countersink to exert strong clamping force. Tiny vise clamps are designed to provide strong clamping force when tightened by hand, do not exceed the recommended tightening torque.
Options:
- Imperial and Metric
- Downthrust and Horizontal
- Maximum Travel - .096 - .138
- Approx. Horizontal Clamping Force at Recommended Torque - 450 - 4500
