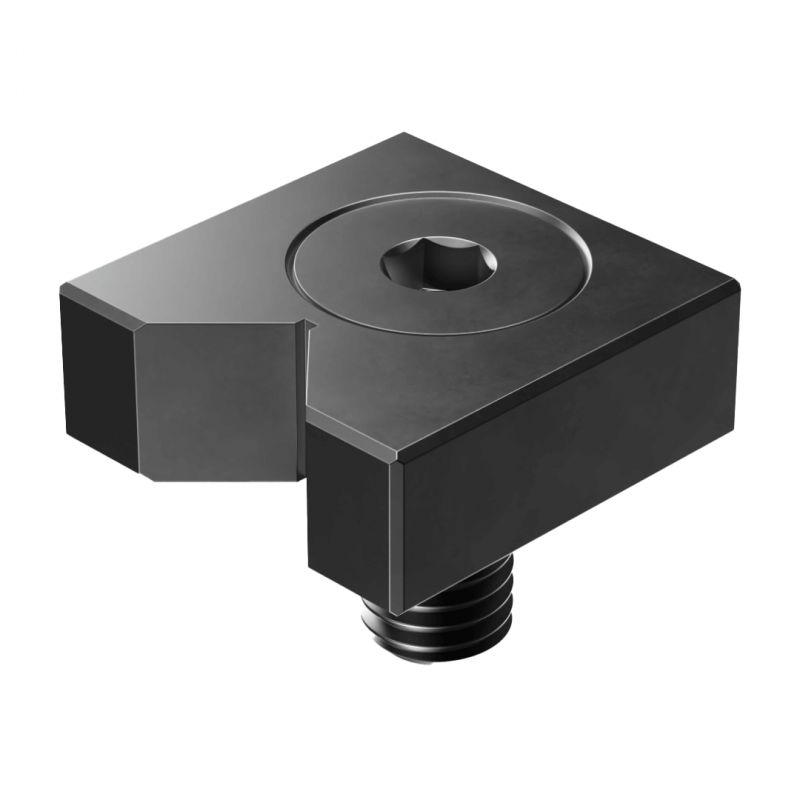

Carr Lane Tiny Vise™ Edge Clamps - V Jaw

Carr Lane V-jaw edge clamps are ideal for clamping round workpieces. The design of this item features a slotted countersink to provide strong reliable clamping force with a simple turn of a wrench. These compact clamps are ideal for fixturing multiple parts of any sizes. These clamps can be configured to apply force either downward or horizontally. These are available in thread sizes ranging from #8-32, up to 1"-8 with 2500 lbs clamping force.

  • Thread - #8-32 - 1"-8
  • Maximum Travel - .060 - .200
  • Set up for Downthrust Force and Horizontal Force
Print page

Products

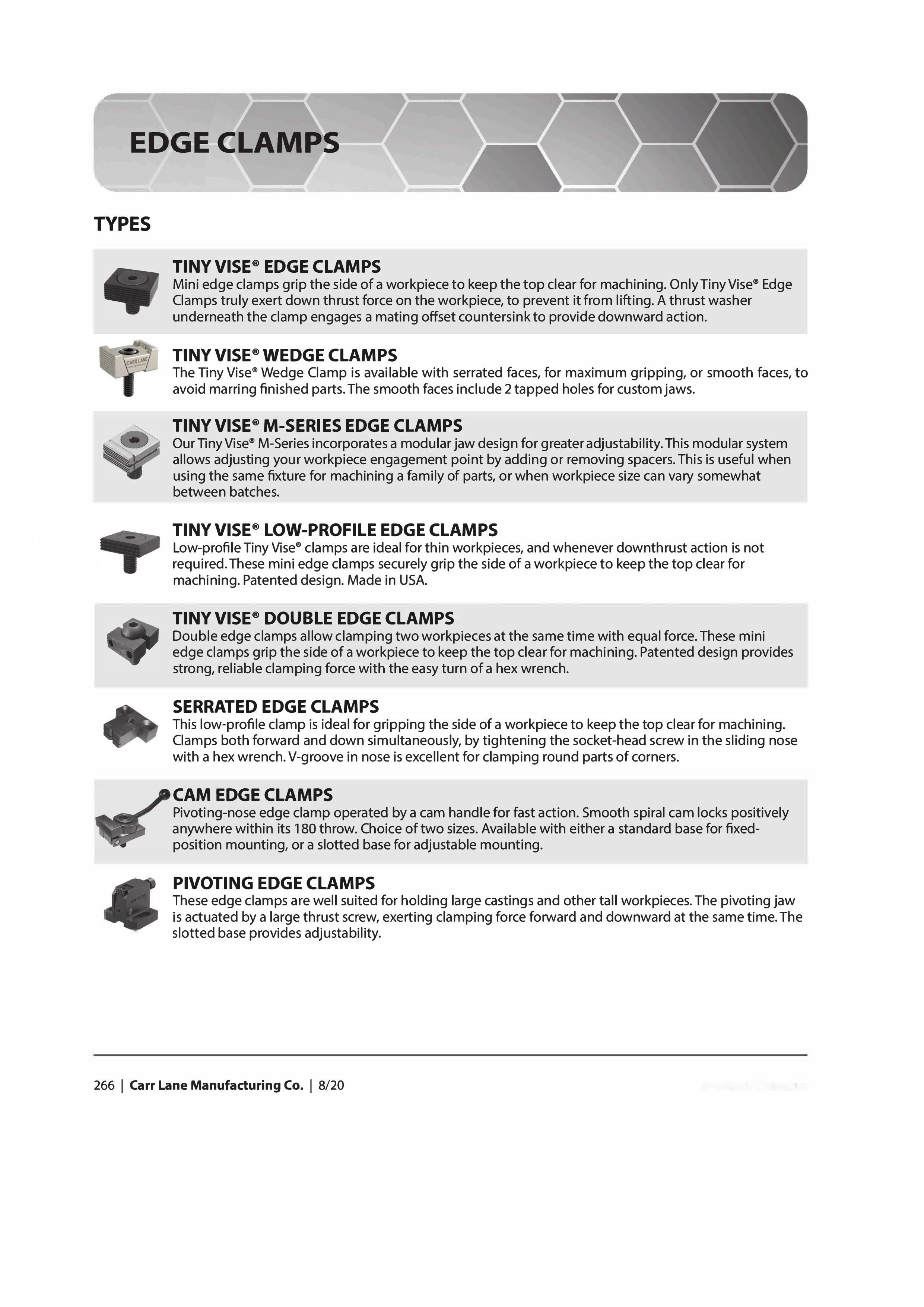

Downloads
Description
Part Number Material Number Approx. Clamping Force in TRQ (lbs) Clamp Type Price Add to Parts List
CL-2-TVR CL-2-TVR 60 A Thread - #8-32 B - .250 Maximum Travel - .060 £22.37
£26.84 Inc. VAT
CL-3-TVR CL-3-TVR 75 A Thread - #10-32 B - .312 Maximum Travel - .066 £22.45
£26.94 Inc. VAT
CL-4-TVR CL-4-TVR 130 A Thread - 1/4-20 B - .375 Maximum Travel - .080 £24.20
£29.04 Inc. VAT
CL-5-TVR CL-5-TVR 240 A Thread - 5/16-18 B - .438 Maximum Travel - .110 £28.79
£34.55 Inc. VAT
CL-6-TVR CL-6-TVR 370 A Thread - 3/8-16 B - .500 Maximum Travel - .110 £27.36
£32.83 Inc. VAT
CL-8-TVR CL-8-TVR 800 A Thread - 1/2-13 B - .562 Maximum Travel - .120 £35.69
£42.83 Inc. VAT
CL-10-TVR CL-10-TVR 1,200 A Thread - 5/8-11 B - .750 Maximum Travel - .130 £48.26
£57.91 Inc. VAT
CL-12-TVR CL-12-TVR 1,800 A Thread - 3/4-10 B - .875 Maximum Travel - .160 £49.63
£59.56 Inc. VAT
CL-16-TVR CL-16-TVR 2,500 A Thread - 1"-8 B - 1.125 Maximum Travel - .200 £75.85
£91.02 Inc. VAT
Carr Lane Tiny Vise™ Edge Clamps - V Jaw

Carr Lane Tiny Vise™ Edge Clamps - V Jaw

Carr Lane V-jaw edge clamps are ideal for clamping round workpieces. The design of this item features a slotted countersink to provide strong reliable clamping force with a simple turn of a wrench. These compact clamps are ideal for fixturing multiple parts of any sizes. These clamps can be configured to apply force either downward or horizontally. These are available in thread sizes ranging from #8-32, up to 1"-8 with 2500 lbs clamping force.

Options:

  • Thread - #8-32 - 1"-8
  • Maximum Travel - .060 - .200
  • Set up for Downthrust Force and Horizontal Force
