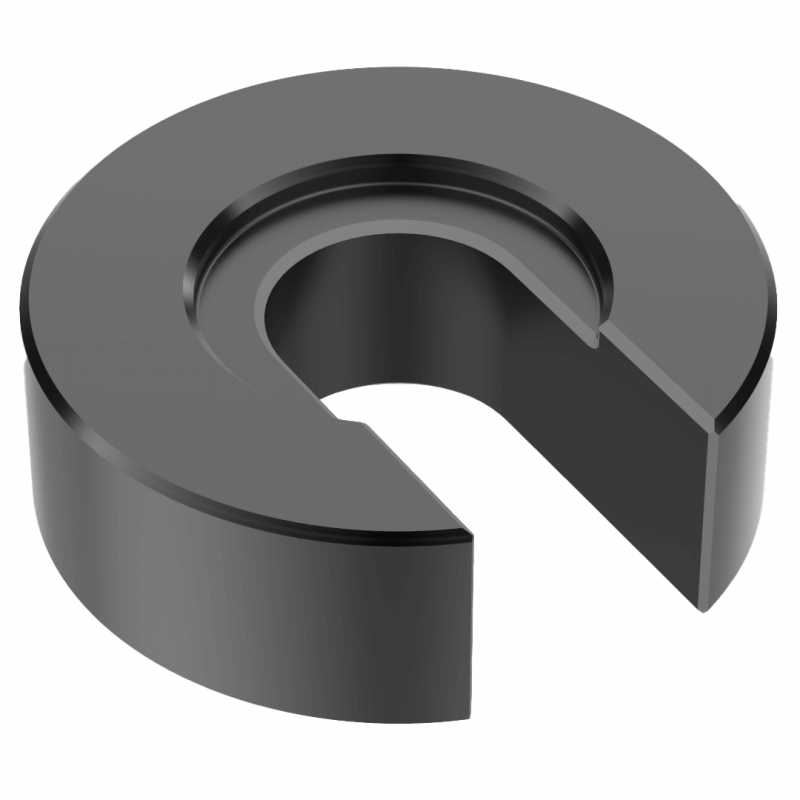

Carr Lane C Washers

Carr Lane C washers are designed for easy installation, allowing it to slide in and out of position for convenient loading. This versatile washer can be used either paired with a nut for secure fastening, or slid into a radial groove on a drawbar for a firm and stable fit. These washers are available in steel to accommodate stud sizes #10 to 1" (M5 to M24 in metric), and in stainless steel for stud sizes 1/4 and 3/8" (M6 and M10 in metric).

Available in metric and imperial sizing
Available in steel and stainless steel

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	External Diameter	Material	Bolt Size	Price
CL-15-CW CL-15-CW	1/2	Steel	1 or M24	On Enquiry
CL-18-CW CL-18-CW	1	Steel	1/4 or M6	On Enquiry
CL-5-CW CL-5-CW	1	Steel	5/16 or M8	£10.35 £12.42 Inc. VAT
CL-3-CW CL-3-CW	3/4	Steel	1/4 or M6	£10.91 £13.09 Inc. VAT
CL-155 CL-155	7/8	Stainless Steel	1/4 or M6	On Enquiry
CL-7-CW CL-7-CW	1-1/2	Steel	3/8 or M10	On Enquiry
CL-157 CL-157	1-1/4	Stainless Steel	3/8 or M10	On Enquiry
CL-6-CW CL-6-CW	1-1/4	Steel	3/8 or M10	£11.97 £14.36 Inc. VAT
CL-11-CW CL-11-CW	2-1/2	Steel	3/4 or M18	£22.56 £27.07 Inc. VAT
CL-12-CW CL-12-CW	2-1/2	Steel	1 or M24	£31.19 £37.43 Inc. VAT
CL-26-CW CL-26-CW	2-1/2	Steel	5/8 or M16	On Enquiry
CL-22-CW CL-22-CW	1-3/4	Steel	3/8 or M10	£16.43 £19.72 Inc. VAT
CL-24-CW CL-24-CW	2-1/4	Steel	1/2 or M12	£21.74 £26.09 Inc. VAT
CL-8-CW CL-8-CW	1-7/8	Steel	1/2 or M12	£17.02 £20.42 Inc. VAT
CL-9-CW CL-9-CW	2-1/8	Steel	5/8 or M16	£17.36 £20.83 Inc. VAT

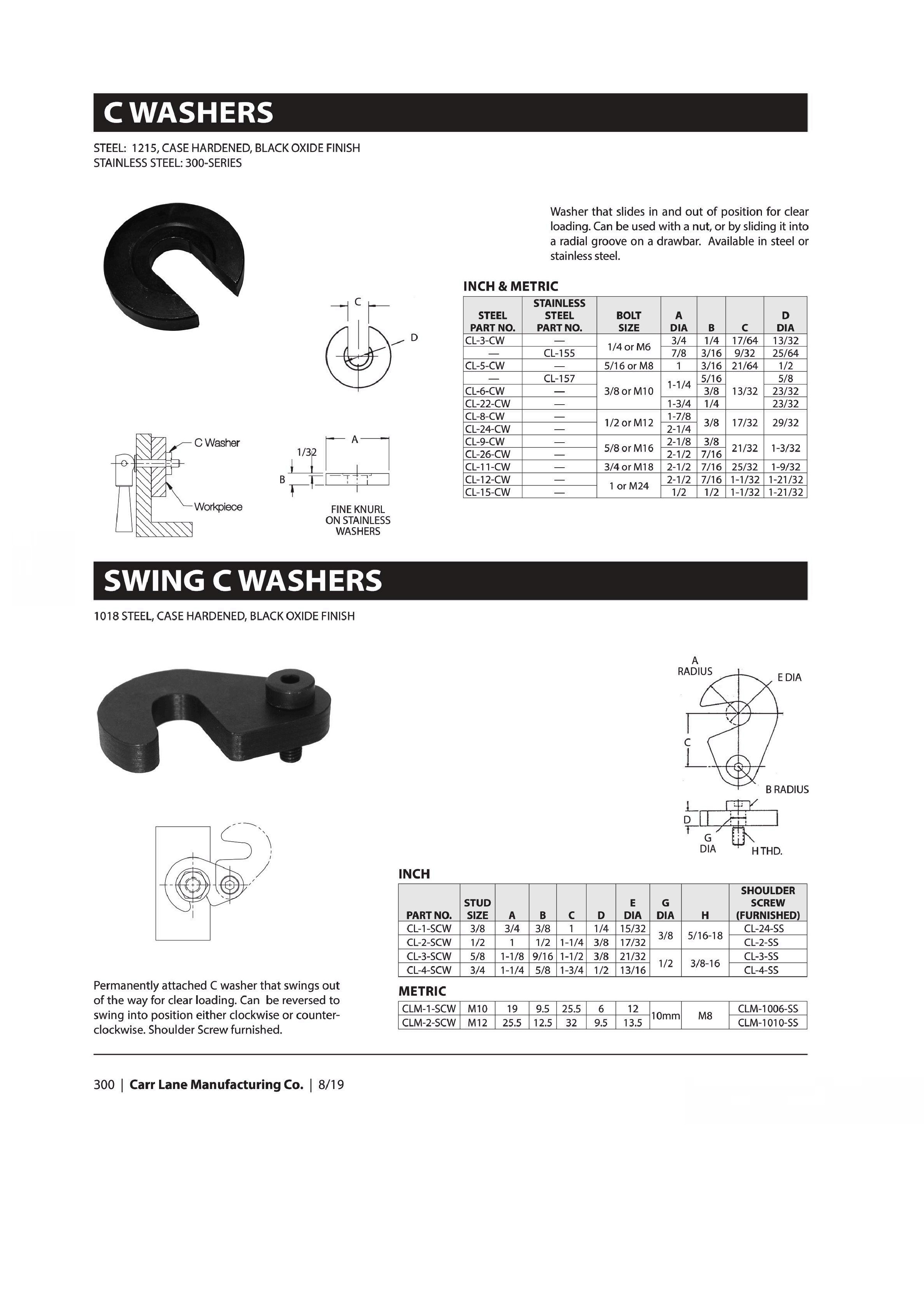

Carr Lane C Washers datasheet
