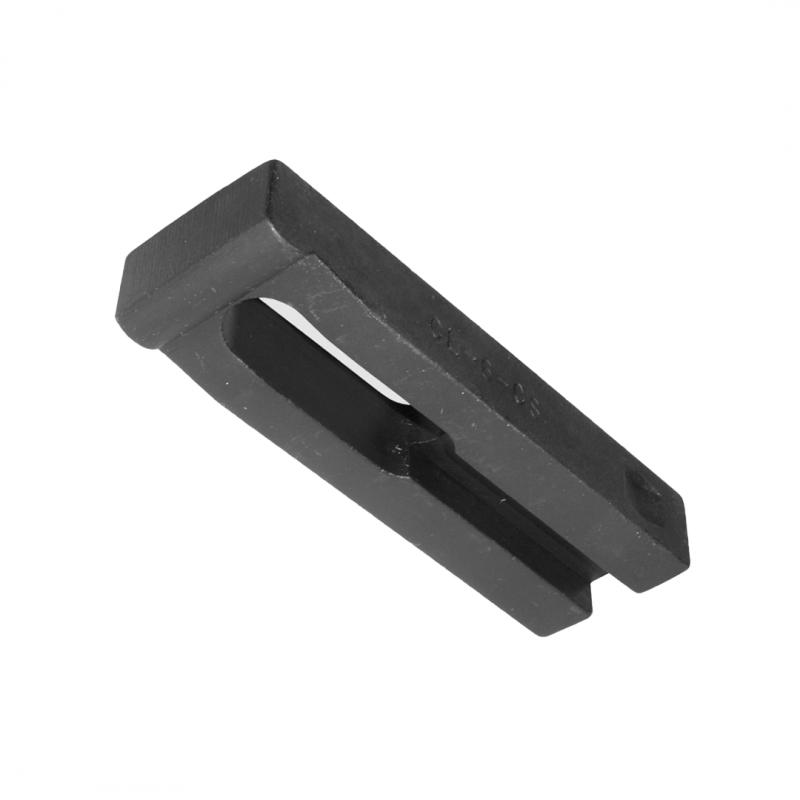

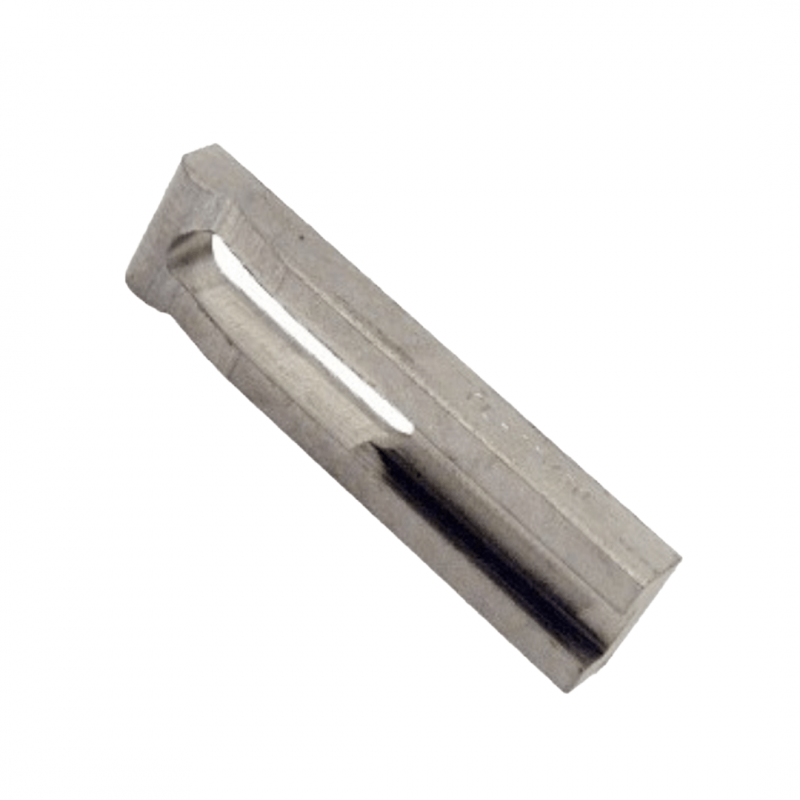

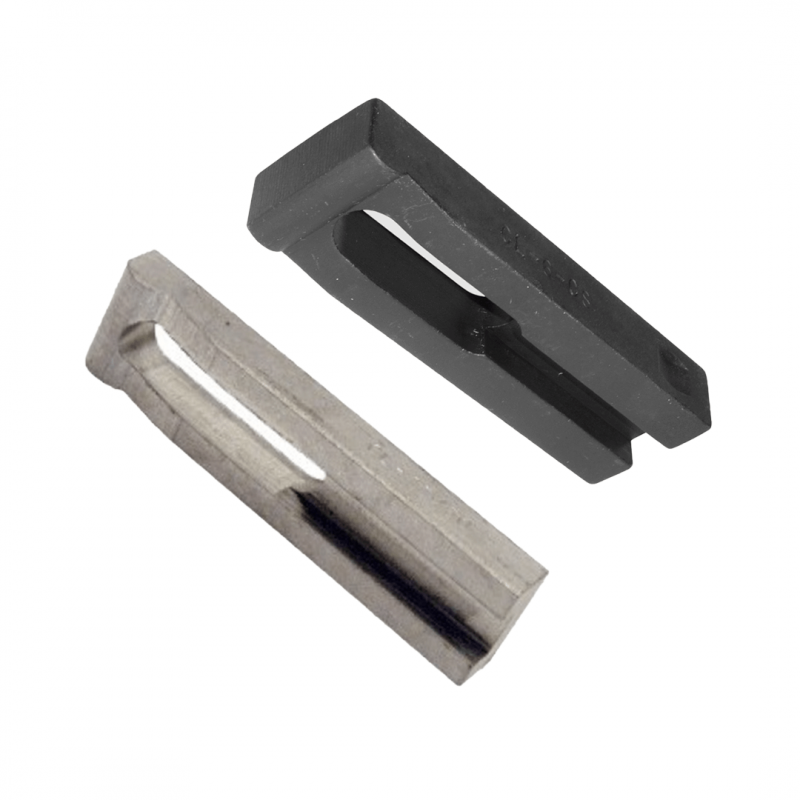

Carr Lane Slotted-Heel Clamp Straps
The Slotted-Heel Clamp Strap includes a replaceable clamping pad secured with two screws. The padded straps also accommodate custom pads or other attachments. These straps feature a slot underneath, enabling them to slide back easily for straightforward loading. Additionally, each side has a tapped hole at the rear for installing a Finger Pin. These available to accommodate stud sizes ranging from1/4-20 to 1/2-13 (M6 to M12 in metric), each in a choice of strap lengths.
- Steel and Stainless Steel miniature
- Variety of stud sizes and length
| Part Number | Material Number | Length | Material | Stud Size | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-18A-CS | 6-1/2 | Steel | 5/8-11 or M20 | £44.26 £53.11 Inc. VAT |
|
|
| CL-17215 | 1-1/2 | Stainless Steel | #10-32 | On Enquiry | ||
| CL-1A-CS | 2-1/2 | Steel | 5/16-18 or M8 | £18.86 £22.63 Inc. VAT |
|
|
| CL-17325 | 2-1/2 | Stainless Steel | 1/4-20 | £34.34 £41.21 Inc. VAT |
|
|
| CL-17425 | 2-1/2 | Stainless Steel | 5/16-18 | On Enquiry | ||
| CL-1-CS | 2-1/2 | Steel | 1/4-20 or M6 | £14.54 £17.45 Inc. VAT |
|
|
| CL-0-CS | 2 | Steel | 1/4-20 or M6 | £11.69 £14.03 Inc. VAT |
|
|
| CL-1B-CS | 3 | Steel | 5/16-18 or M8 | £19.50 £23.40 Inc. VAT |
|
|
| CL-2-CS | 3 | Steel | 3/8-16 or M10 | £21.89 £26.27 Inc. VAT |
|
|
| CL-6-CS | 4 | Steel | 1/2-13 or M12 | £25.39 £30.47 Inc. VAT |
|
|
| CL-15A-CS | 4 | Steel | 5/8-11 or M20 | £31.72 £38.06 Inc. VAT |
|
|
| CL-3-CS | 4 | Steel | 3/8-16 or M10 | £24.64 £29.57 Inc. VAT |
|
|
| CL-17540 | 4 | Stainless Steel | 3/8-16 | On Enquiry | ||
| CL-8-CS | 5 | Steel | 1/2-13 or M12 | £26.52 £31.82 Inc. VAT |
|
|
| CL-16-CS | 5 | Steel | 5/8-11 or M20 | £31.88 £38.26 Inc. VAT |
|
|
| CL-4-CS | 5 | Steel | 3/8-16 or M10 | £26.66 £31.99 Inc. VAT |
|
|
| CL-10-CS | 6 | Steel | 1/2-13 or M12 | £30.23 £36.28 Inc. VAT |
|
|
| CL-18-CS | 6 | Steel | 5/8-11 or M20 | £41.14 £49.37 Inc. VAT |
|
|
| CL-5-CS | 6 | Steel | 3/8-16 or M10 | £28.30 £33.96 Inc. VAT |
|
|
| CL-19-CS | 6 | Steel | 3/4-10 or M20 | £51.77 £62.12 Inc. VAT |
|
|
| CL-21-CS | 7 | Steel | 3/4-10 or M20 | £57.61 £69.13 Inc. VAT |
|
|
| CL-22A-CS | 8 | Steel | 3/4-10 or M20 | £82.67 £99.20 Inc. VAT |
|
|
| CL-3A-CS | 3-1/2 | Steel | 3/8-16 or M10 | £23.32 £27.98 Inc. VAT |
|
|
| CL-6A-CS | 3-1/2 | Steel | 1/2-13 or M12 | £25.22 £30.26 Inc. VAT |
|
