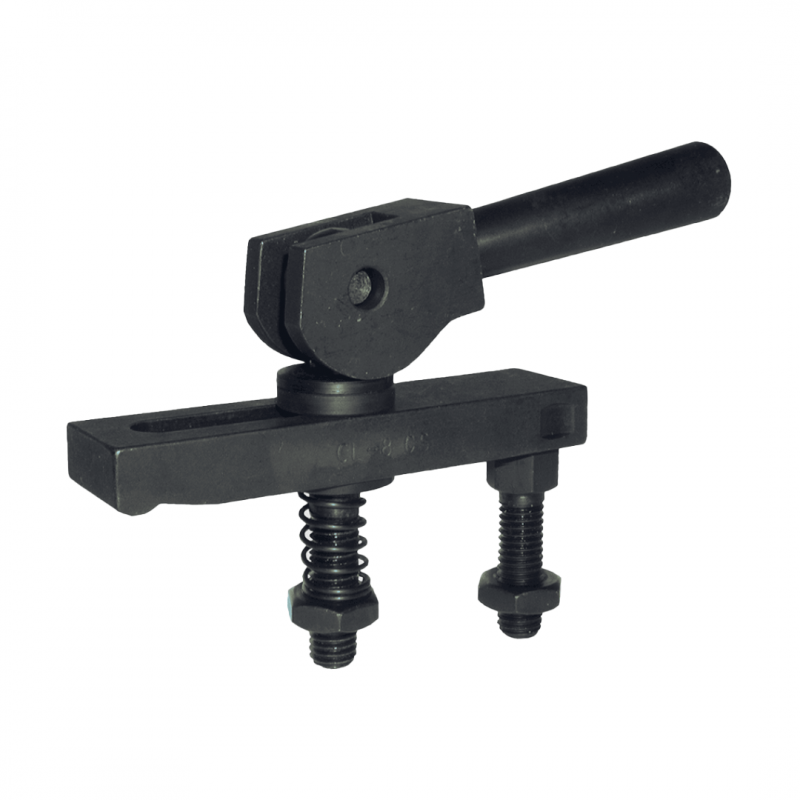

Carr Lane Slotted-Heel Straddle Cam Clamp Straps
The Slotted-Heel Clamp Strap includes a replaceable clamping pad secured with two screws. The padded straps also accommodate custom pads or other attachments. These straps feature a slot underneath, enabling them to slide back easily for straightforward loading. Additionally, each side has a tapped hole at the rear for installing a Finger Pin. These are available to accommodate stud sizes ranging from 1/4-20 to 1/2-13 (M6 to M12 in metric), each in a choice of strap lengths. A complete clamp-strap assembly using a slotted-heel strap and a range of other items to complete the full assembly.
- Available in Metric and Imperial sizes
- Range of threads, lengths and internal diameters

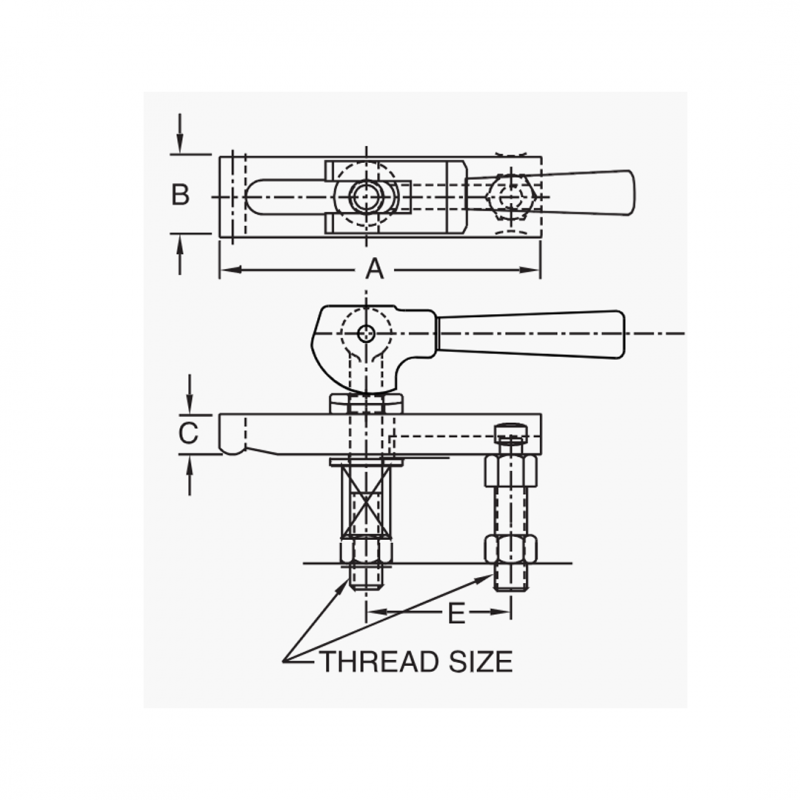

| Part Number | Material Number | Metric or Imperial | Length | Thread | Internal Diameter | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-9A-SCA | Metric | 6 | M12 | 2-3/4 | £157.23 £188.68 Inc. VAT |
|
|
| CLM-0-SCA | Metric | 2 | M6 | 27/32 | £66.66 £79.99 Inc. VAT |
|
|
| CLM-26-SCA | Metric | 7 | M20 | 3-1/8 | £225.70 £270.84 Inc. VAT |
|
|
| CLM-5-SCA | Metric | 6 | M10 | 2-25/32 | £102.28 £122.74 Inc. VAT |
|
|
| CLM-19-SCA | Metric | 5 | M16 | 2-3/16 | £141.72 £170.06 Inc. VAT |
|
|
| CLM-2-SCA | Metric | 3 | M10 | 1-9/32 | £88.56 £106.27 Inc. VAT |
|
|
| CLM-6-SCA | Metric | 4 | M12 | 1-3/4 | £153.92 £184.70 Inc. VAT |
|
|
| CLM-22-SCA | Metric | 6-1/2 | M16 | 2-15/16 | £148.35 £178.02 Inc. VAT |
|
|
| CLM-3-SCA | Metric | 4 | M10 | 1-25/32 | £92.68 £111.22 Inc. VAT |
|
|
| CLM-4-SCA | Metric | 5 | M10 | 2-9/32 | £96.26 £115.51 Inc. VAT |
|
|
| CLM-17-SCA | Metric | 4 | M16 | 1-11/16 | £128.04 £153.65 Inc. VAT |
|
|
| CLM-1-SCA | Metric | 2-1/2 | M6 | 1-3/32 | £68.46 £82.15 Inc. VAT |
|
|
| CLM-28-SCA | Metric | 8 | M20 | 3-5/8 | £232.36 £278.83 Inc. VAT |
|
|
| CLM-6A-SCA | Metric | 3-1/2 | M12 | 1-1/2 | £153.16 £183.79 Inc. VAT |
|
|
| CLM-21-SCA | Metric | 6 | M16 | 2-11/16 | £142.23 £170.68 Inc. VAT |
|
|
| CLM-2A-SCA | Metric | 3-1/2 | M10 | 1-17/32 | £90.56 £108.67 Inc. VAT |
|
|
| CLM-8-SCA | Metric | 5 | M12 | 2-1/4 | £155.13 £186.16 Inc. VAT |
|
|
| CLM-24-SCA | Metric | 6 | M20 | 2-5/8 | £218.98 £262.78 Inc. VAT |
|
|
| CL-1A-SCA | Imperial | 2-1/2 | 5/16-18 | 27/32 | £78.41 £94.09 Inc. VAT |
|
|
| CL-26-SCA | Imperial | 7 | 3/4-10 | 3-1/8 | £198.51 £238.21 Inc. VAT |
|
|
| CL-5-SCA | Imperial | 6 | 3/8-16 | 2-25/32 | £100.32 £120.38 Inc. VAT |
|
|
| CL-19-SCA | Imperial | 5 | 5/8-11 | 2-3/16 | £139.76 £167.71 Inc. VAT |
|
|
| CL-2-SCA | Imperial | 3 | 3/8-16 | 1-9/32 | £86.86 £104.23 Inc. VAT |
|
|
| CL-0-SCA | Imperial | 2 | 1/4-20 | 27/32 | £69.74 £83.69 Inc. VAT |
|
|
| CL-3-SCA | Imperial | 4 | 3/8-16 | 1-25/32 | £90.90 £109.08 Inc. VAT |
|
|
| CL-9A-SCA | Imperial | 6 | 1/2-13 | 2-3/4 | £134.96 £161.95 Inc. VAT |
|
|
| CL-6-SCA | Imperial | 4 | 1/2-13 | 1-3/4 | £120.06 £144.07 Inc. VAT |
|
|
| CL-4-SCA | Imperial | 5 | 3/8-16 | 2-9/32 | £94.42 £113.30 Inc. VAT |
|
|
| CL-17-SCA | Imperial | 4 | 5/8-11 | 1-11/16 | £130.53 £156.64 Inc. VAT |
|
|
| CL-1B-SCA | Imperial | 3 | 5/16-18 | 1-11/32 | £81.32 £97.58 Inc. VAT |
|
|
| CL-28-SCA | Imperial | 8 | 3/4-10 | 3-5/8 | £207.70 £249.24 Inc. VAT |
|
|
| CL-21-SCA | Imperial | 6 | 5/8-11 | 2-11/16 | £147.81 £177.37 Inc. VAT |
|
|
| CL-2A-SCA | Imperial | 3-1/2 | 3/8-16 | 1-17/32 | £88.84 £106.61 Inc. VAT |
|
|
| CL-1-SCA | Imperial | 2-1/2 | 1/4-20 | 1-3/32 | £68.91 £82.69 Inc. VAT |
|
|
| CL-24-SCA | Imperial | 6 | 3/4-10 | 2-5/8 | £187.67 £225.20 Inc. VAT |
|
|
| CL-22-SCA | Imperial | 6-1/2 | 5/8-11 | 2-15/16 | £151.22 £181.46 Inc. VAT |
|
|
| CL-6A-SCA | Imperial | 3-1/2 | 1/2-13 | 1-1/2 | £117.90 £141.48 Inc. VAT |
|
|
| CL-8-SCA | Imperial | 5 | 1/2-13 | 2-1/4 | £128.15 £153.78 Inc. VAT |
|
Carr Lane Slotted-Heel Straddle Cam Clamp Straps
The Slotted-Heel Clamp Strap includes a replaceable clamping pad secured with two screws. The padded straps also accommodate custom pads or other attachments. These straps feature a slot underneath, enabling them to slide back easily for straightforward loading. Additionally, each side has a tapped hole at the rear for installing a Finger Pin. These are available to accommodate stud sizes ranging from 1/4-20 to 1/2-13 (M6 to M12 in metric), each in a choice of strap lengths. A complete clamp-strap assembly using a slotted-heel strap and a range of other items to complete the full assembly.
- Available in Metric and Imperial sizes
- Range of threads, lengths and internal diameters
