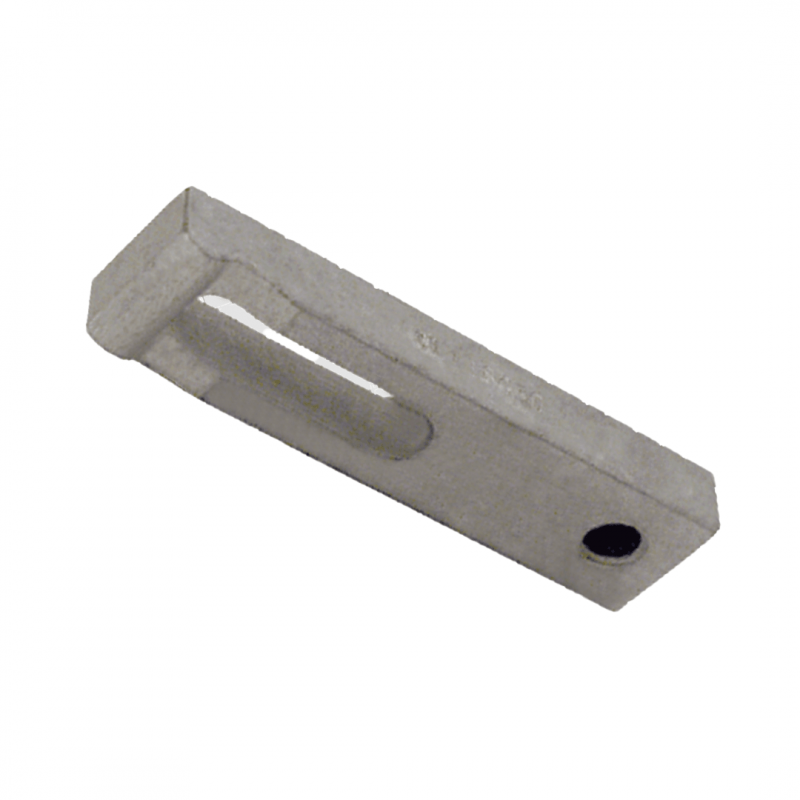

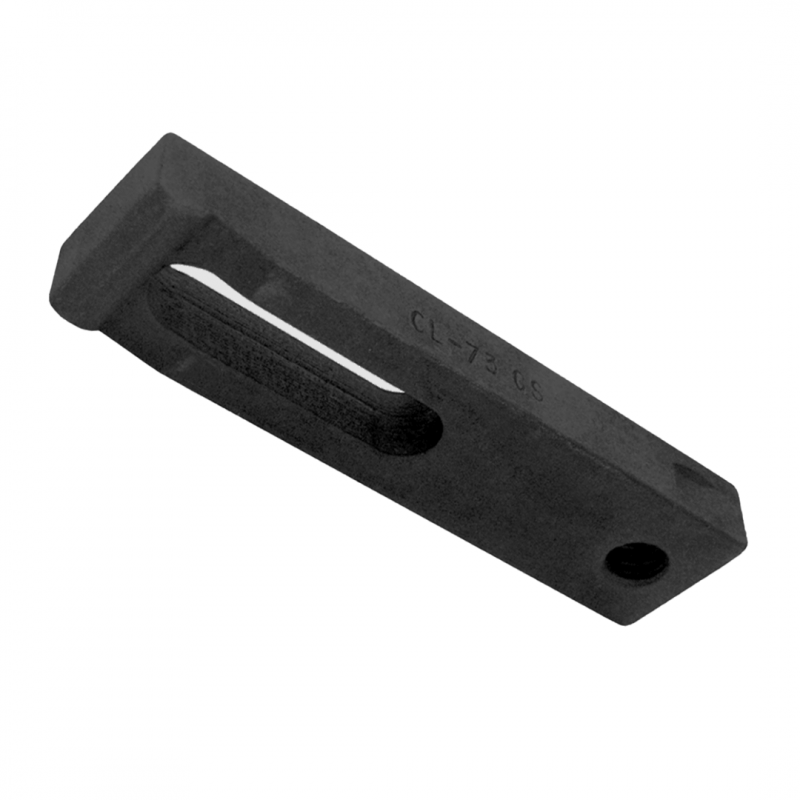

Carr Lane Tapped-Heel Clamp Straps
Carr Lane Tapped-Heel Clamp Straps feature a radius nose for secure workpiece contact. These clamp straps are designed with a tapped heel that accommodates a clamping screw or adjustable rear support. To clamp using the clamping screw, simply tighten the screw. To clamp with the rear support, tighten the centre nut. Available to accommodate stud sizes ranging from #10-32 to 3/8-16, each in a choice of strap lengths. This clamp strap can be ordered individually, or in a complete clamp assembly. The available assemblies are assembly with knurled-head screw, assembly with clamp rest and assembly with levelling foot.

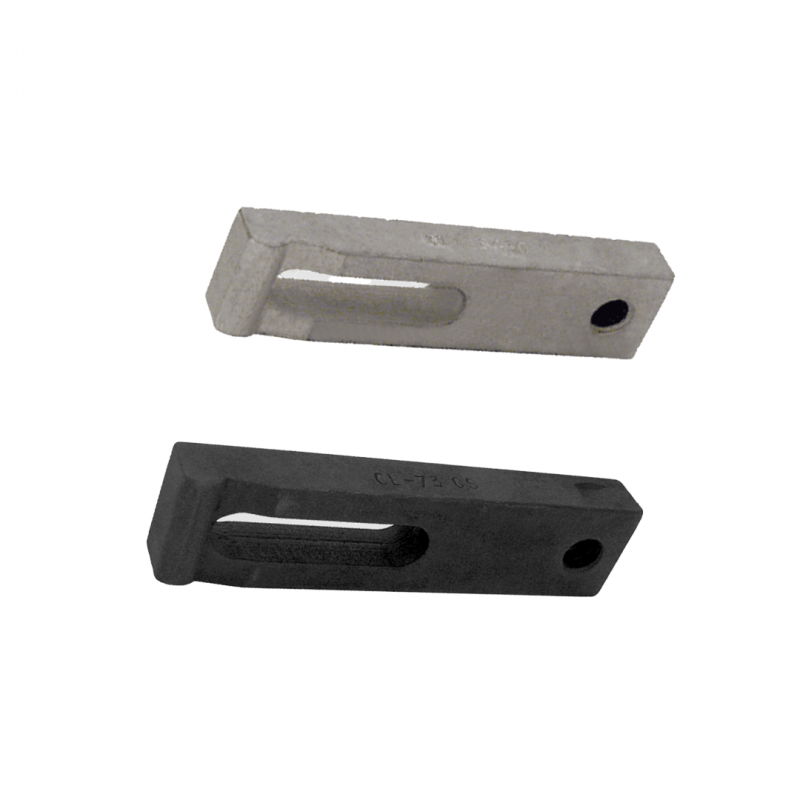

- Available in Steel and Stainless Steel
- Metric and Imperial sizes
- Range of threads and threads
| Part Number | Material Number | Metric or Imperial | Length | Material | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|---|
| CLM-88-CS | Metric | 6 | Steel | M20 | On Enquiry | ||
| CLM-65-CS | Metric | 4 | Steel | M10 | On Enquiry | ||
| CLM-75-CS | Metric | 6 | Steel | M12 | On Enquiry | ||
| CLM-70-CS | Metric | 3-1/2 | Steel | M12 | On Enquiry | ||
| CLM-83-CS | Metric | 5 | Steel | M16 | £36.95 £44.34 Inc. VAT |
|
|
| CLM-62-CS | Metric | 2-1/2 | Steel | M6 | On Enquiry | ||
| CLM-72-CS | Metric | 4-1/2 | Steel | M12 | On Enquiry | ||
| CLM-73-CS | Metric | 5 | Steel | M12 | On Enquiry | ||
| CLM-92-CS | Metric | 8 | Steel | M20 | £75.32 £90.38 Inc. VAT |
|
|
| CLM-67-CS | Metric | 5 | Steel | M10 | On Enquiry | ||
| CLM-81-CS | Metric | 4 | Steel | M16 | On Enquiry | ||
| CLM-61-CS | Metric | 2 | Steel | M6 | On Enquiry | ||
| CLM-71-CS | Metric | 4 | Steel | M12 | On Enquiry | ||
| CLM-85-CS | Metric | 6 | Steel | M16 | On Enquiry | ||
| CLM-63-CS | Metric | 3 | Steel | M10 | £21.22 £25.46 Inc. VAT |
|
|
| CL-90-CS | Imperial | 7 | Steel | 3/4-10 | £62.36 £74.83 Inc. VAT |
|
|
| CL-72-CS | Imperial | 4-1/2 | Steel | 1/2-13 | £26.03 £31.24 Inc. VAT |
|
|
| CL-18420 | Imperial | 2 | Stainless Steel | 5/16-18 | On Enquiry | ||
| CL-83-CS | Imperial | 5 | Steel | 5/8-11 | £34.18 £41.02 Inc. VAT |
|
|
| CL-67-CS | Imperial | 5 | Steel | 3/8-16 | £26.23 £31.48 Inc. VAT |
|
|
| CL-18215 | Imperial | 1-1/2 | Stainless Steel | #10-32 | £22.09 £26.51 Inc. VAT |
|
|
| CL-61-CS | Imperial | 2 | Steel | 1/4-20 | £13.92 £16.70 Inc. VAT |
|
|
| CL-18430 | Imperial | 3 | Stainless Steel | 5/16-18 | On Enquiry | ||
| CL-70-CS | Imperial | 3-1/2 | Steel | 1/2-13 | £24.47 £29.36 Inc. VAT |
|
|
| CL-18320 | Imperial | 2 | Stainless Steel | 1/4-20 | £27.78 £33.34 Inc. VAT |
|
|
| CL-81-CS | Imperial | 4 | Steel | 5/8-11 | £31.84 £38.21 Inc. VAT |
|
|
| CL-63-CS | Imperial | 3 | Steel | 3/8-16 | £19.87 £23.84 Inc. VAT |
|
|
| CL-18540 | Imperial | 4 | Stainless Steel | 3/8-16 | On Enquiry | ||
| CL-77-CS | Imperial | 4-1/2 | Steel | 5/8-11 | £31.84 £38.21 Inc. VAT |
|
|
| CL-65-CS | Imperial | 4 | Steel | 3/8-16 | £24.64 £29.57 Inc. VAT |
|
|
| CL-92-CS | Imperial | 8 | Steel | 3/4-10 | £73.10 £87.72 Inc. VAT |
|
|
| CL-73-CS | Imperial | 5 | Steel | 1/2-13 | £27.34 £32.81 Inc. VAT |
|
|
| CL-18425 | Imperial | 2-1/2 | Stainless Steel | 5/16-18 | On Enquiry | ||
| CL-85-CS | Imperial | 6 | Steel | 5/8-11 | £39.73 £47.68 Inc. VAT |
|
|
| CL-69-CS | Imperial | 6 | Steel | 3/8-16 | £26.66 £31.99 Inc. VAT |
|
|
| CL-18220 | Imperial | 2 | Stainless Steel | #10-32 | £23.22 £27.86 Inc. VAT |
|
|
| CL-75-CS | Imperial | 6 | Steel | 1/2-13 | £30.56 £36.67 Inc. VAT |
|
|
| CL-62-CS | Imperial | 2-1/2 | Steel | 1/4-20 | £14.54 £17.45 Inc. VAT |
|
|
| CL-18535 | Imperial | 3-1/2 | Stainless Steel | 3/8-16 | On Enquiry | ||
| CL-88-CS | Imperial | 6 | Steel | 3/4-10 | £50.75 £60.90 Inc. VAT |
|
|
| CL-71-CS | Imperial | 4 | Steel | 1/2-13 | £24.47 £29.36 Inc. VAT |
|
|
| CL-18325 | Imperial | 2-1/2 | Stainless Steel | 1/4-20 | On Enquiry | ||
| CL-74-CS | Imperial | 5-1/2 | Steel | 1/2-13 | £28.94 £34.73 Inc. VAT |
|
|
| CL-86-CS | Imperial | 6-1/2 | Steel | 5/8-11 | £43.69 £52.43 Inc. VAT |
|
