Carr Lane Tapped-Heel Miniature Stainless-Steel Clamp Straps

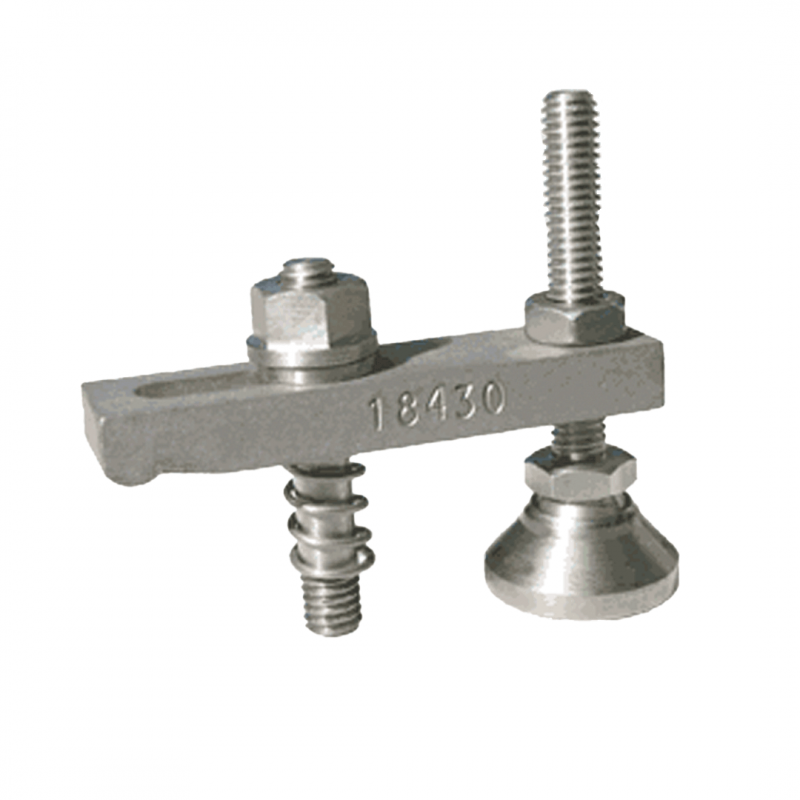

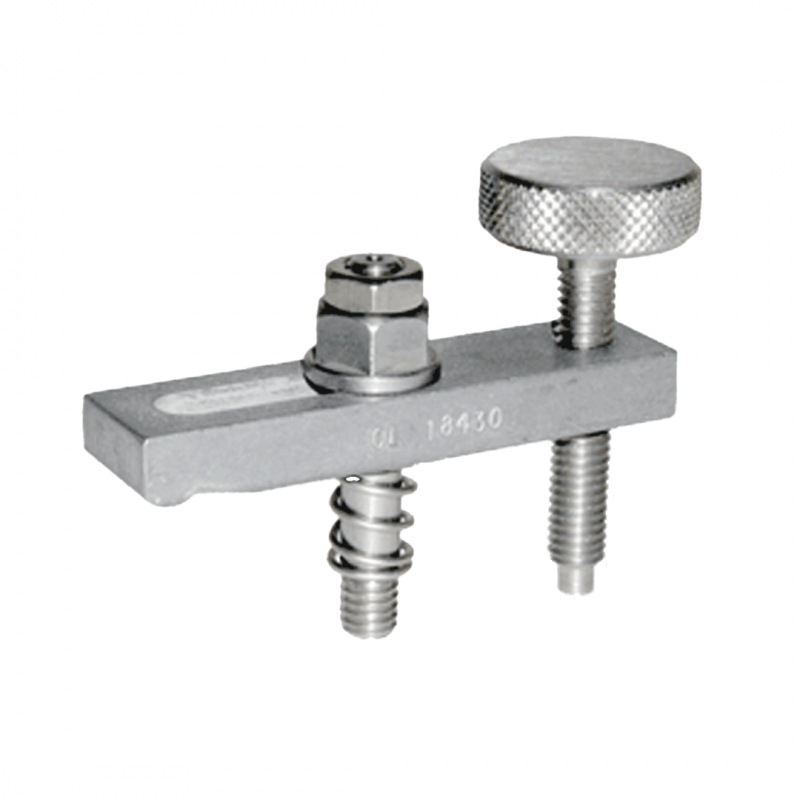

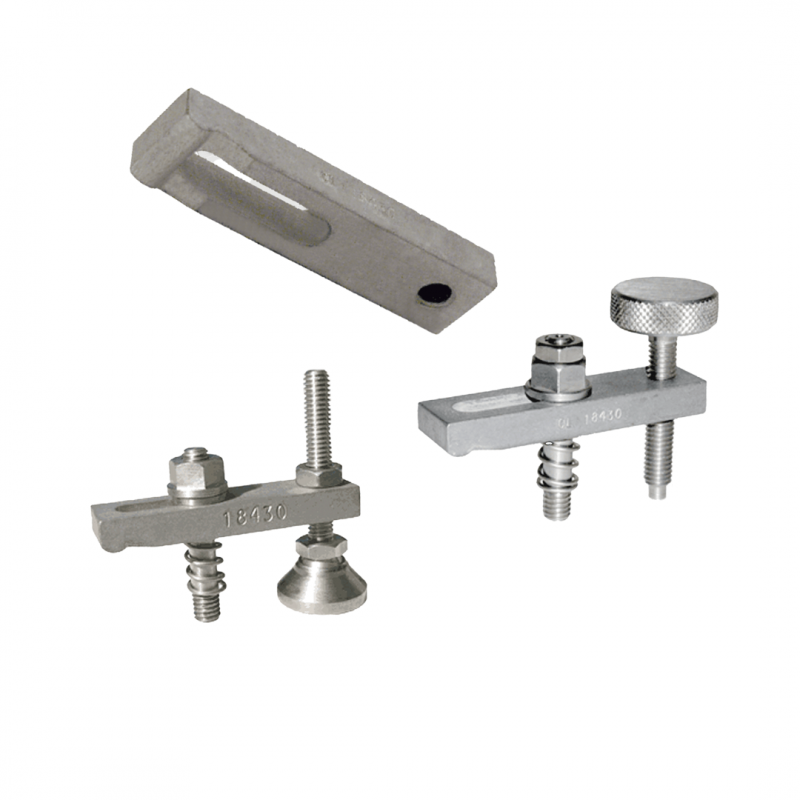

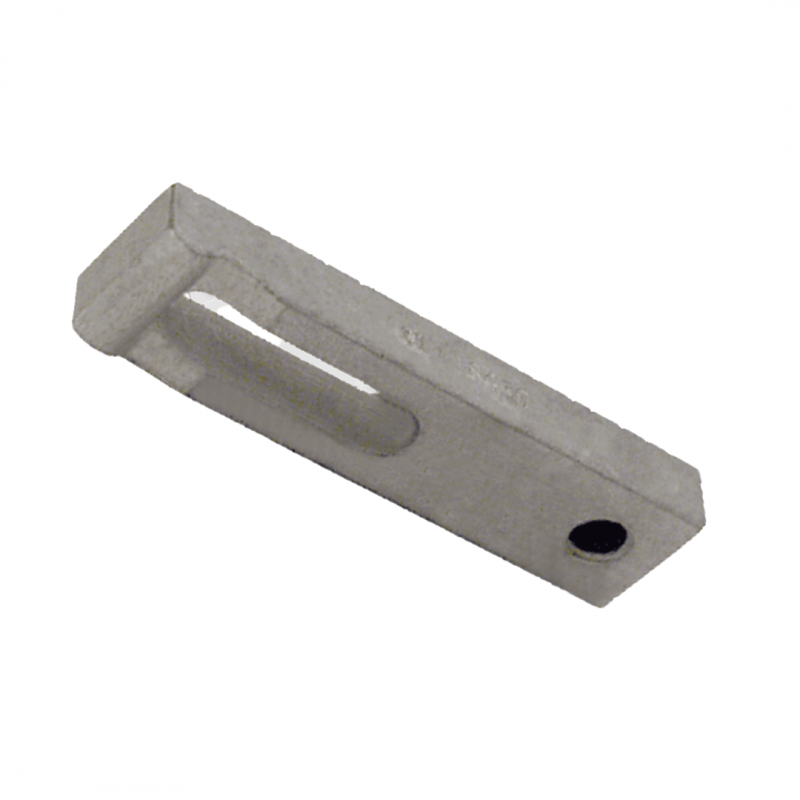

Carr Lane tapped-heel miniature clamp straps with a radius nose to provide firm workpiece contact. These clamp straps are available to accommodate stud sizes #10-32 to 3/8-16, each in a choice of strap lengths. This clamp strap can be ordered individually, or in a complete clamp assembly. The available assemblies are assembly with knurled-head screw, assembly with clamp rest and assembly with levelling foot.
| Part Number | Material Number | Assembly Options | Length | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-3225 | Knurled Head Screw | 2-1/2 | 1/4-20 | £52.94 £63.53 Inc. VAT |
|
|
| CL-3330 | Knurled Head Screw | 3 | 5/16-18 | £63.14 £75.77 Inc. VAT |
|
|
| CL-3120 | Knurled Head Screw | 2 | #10-32 | £58.23 £69.88 Inc. VAT |
|
|
| CL-3320 | Knurled Head Screw | 2 | 5/16-18 | £59.91 £71.89 Inc. VAT |
|
|
| CL-3435 | Knurled Head Screw | 3-1/2 | 3/8-16 | £83.98 £100.78 Inc. VAT |
|
|
| CL-3220 | Knurled Head Screw | 2 | 1/4-20 | £52.43 £62.92 Inc. VAT |
|
|
| CL-3325 | Knurled Head Screw | 2-1/2 | 5/16-18 | £62.97 £75.56 Inc. VAT |
|
|
| CL-3440 | Knurled Head Screw | 4 | 3/8-16 | £96.41 £115.69 Inc. VAT |
|
|
| CL-3115 | Knurled Head Screw | 1-1/2 | #10-32 | £58.23 £69.88 Inc. VAT |
|
|
| CL-3440-1 | Clamp Rest | 4 | 3/8-16 | £91.80 £110.16 Inc. VAT |
|
|
| CL-3115-1 | Clamp Rest | 1-1/2 | #10-32 | On Enquiry | ||
| CL-3225-1 | Clamp Rest | 2-1/2 | 1/4-20 | £47.36 £56.83 Inc. VAT |
|
|
| CL-3330-1 | Clamp Rest | 3 | 5/16-18 | £55.40 £66.48 Inc. VAT |
|
|
| CL-3120-1 | Clamp Rest | 2 | #10-32 | On Enquiry | ||
| CL-3320-1 | Clamp Rest | 2 | 5/16-18 | £53.69 £64.43 Inc. VAT |
|
|
| CL-3435-1 | Clamp Rest | 3-1/2 | 3/8-16 | £82.61 £99.13 Inc. VAT |
|
|
| CL-3220-1 | Clamp Rest | 2 | 1/4-20 | £46.98 £56.38 Inc. VAT |
|
|
| CL-3325-1 | Clamp Rest | 2-1/2 | 5/16-18 | £55.19 £66.23 Inc. VAT |
|
|
| CL-3325-2 | Levelling Foot | 2-1/2 | 5/16-18 | £77.31 £92.77 Inc. VAT |
|
|
| CL-3440-2 | Levelling Foot | 4 | 3/8-16 | £102.92 £123.50 Inc. VAT |
|
|
| CL-3115-2 | Levelling Foot | 1-1/2 | #10-32 | £62.80 £75.36 Inc. VAT |
|
|
| CL-3225-2 | Levelling Foot | 2-1/2 | 1/4-20 | £69.70 £83.64 Inc. VAT |
|
|
| CL-3330-2 | Levelling Foot | 3 | 5/16-18 | £77.49 £92.99 Inc. VAT |
|
|
| CL-3120-2 | Levelling Foot | 2 | #10-32 | £66.06 £79.27 Inc. VAT |
|
|
| CL-3320-2 | Levelling Foot | 2 | 5/16-18 | £74.20 £89.04 Inc. VAT |
|
|
| CL-3435-2 | Levelling Foot | 3-1/2 | 3/8-16 | £93.39 £112.07 Inc. VAT |
|
|
| CL-3220-2 | Levelling Foot | 2 | 1/4-20 | £63.33 £76.00 Inc. VAT |
|
Carr Lane Tapped-Heel Miniature Stainless Steel Clamp Strap Assemblies
Carr Lane tapped-heel miniature clamp straps with a radius nose to provide firm workpiece contact. These clamp straps are available to accommodate stud sizes #10-32 to 3/8-16, each in a choice of strap lengths. This clamp strap can be ordered individually, or in a complete clamp assembly. The available assemblies are assembly with knurled-head screw, assembly with clamp rest and assembly with levelling foot.
