Carr Lane Wide-Nose Clamp Straps

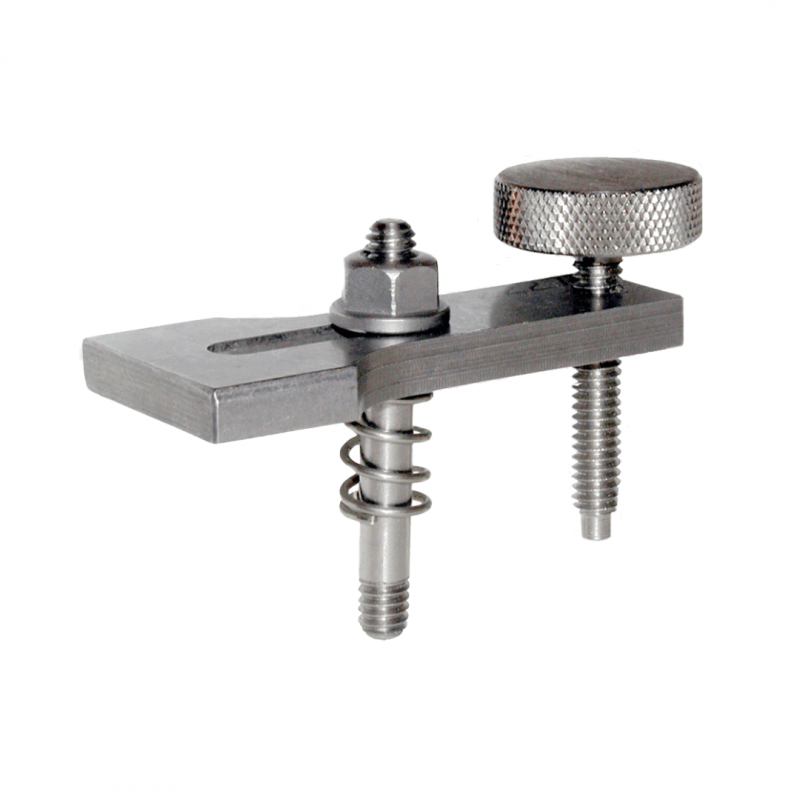

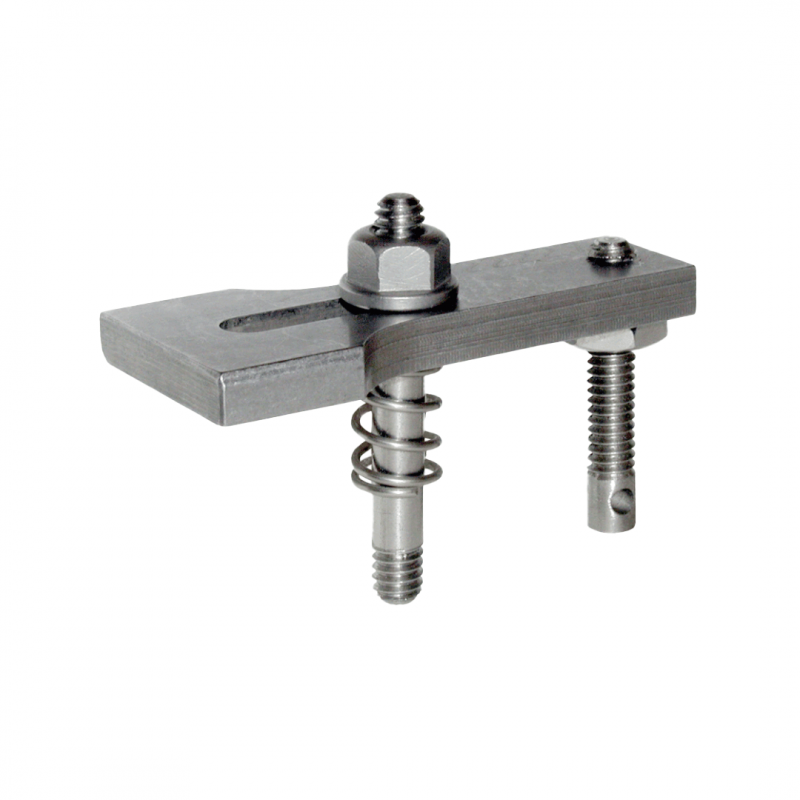

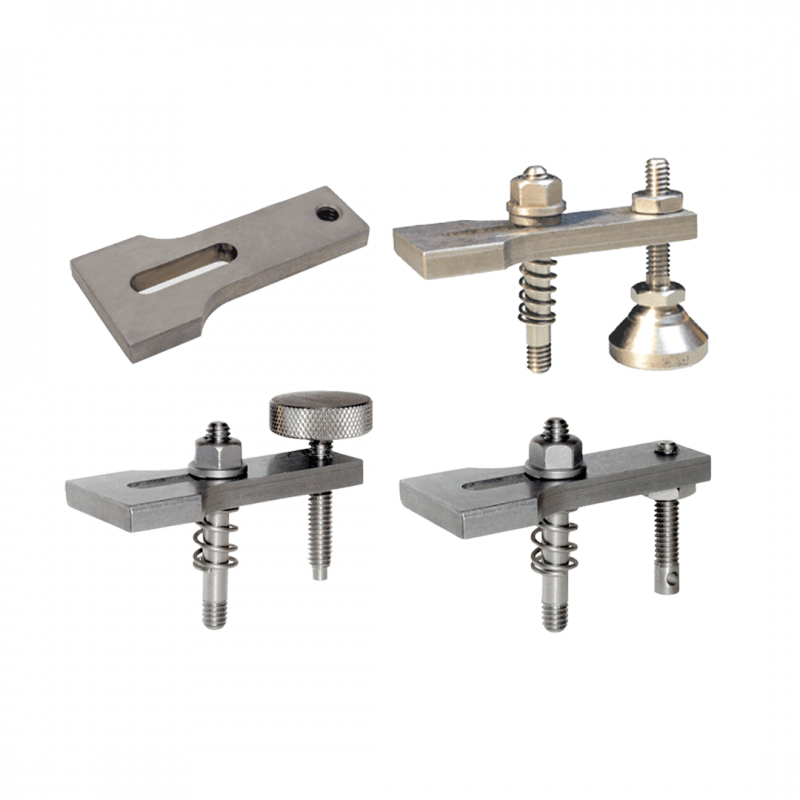

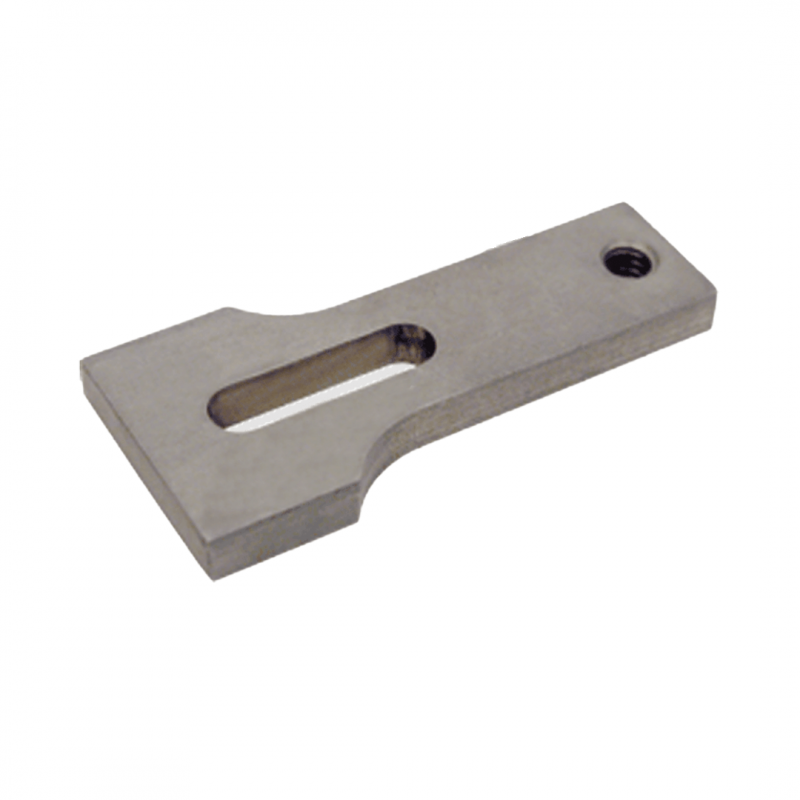

Mini-size stainless steel version of our Tapped-Heel Clamp Straps. Extra-wide nose can be used to distribute clamping force evenly, or to clamp two parts simultaneously. This clamp strap can be ordered individually, or in a complete clamp assembly. The available assemblies are assembly with knurled-head screw, assembly with clamp rest and assembly with levelling foot. These are available in one size, to fit 1/4-20 studs
| Part Number | Material Number | Type | Length | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-22227 | Strap | 2-3/4 | 1/4-20 | £54.28 £65.14 Inc. VAT |
|
|
| CL-44227 | Knurled Head Screw Assembly | 2-3/4 | 1/4-20 | £71.10 £85.32 Inc. VAT |
|
|
| CL-44227-1 | Clamp Rest Assembly | 2-3/4 | 1/4-20 | £71.92 £86.30 Inc. VAT |
|
|
| CL-44227-2 | Levelling Foot Assembly | 2-3/4 | 1/4-20 | £103.55 £124.26 Inc. VAT |
|
Carr Lane Wide-Nose Clamp Straps
Mini-size stainless steel version of our Tapped-Heel Clamp Straps. Extra-wide nose can be used to distribute clamping force evenly, or to clamp two parts simultaneously. This clamp strap can be ordered individually, or in a complete clamp assembly. The available assemblies are assembly with knurled-head screw, assembly with clamp rest and assembly with levelling foot. These are available in one size, to fit 1/4-20 studs
