Carr Lane Tapped-Heel Padded Clamp Straps

Carr Lane Tapped-Heel Padded Clamp Straps include a replaceable clamping pad secured with two screws. They also fit to custom pads or other attachments. The straps are available to accommodate stud sizes ranging from 1/4-20 to 1/2-13, with various strap length options. Each side has a tapped hole at the rear for installing a Finger Pin. This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are assembly with hex-head clamping screw, assembly with hand-knob clamping screw, assembly with levelling foot and assembly with clamp rest.

Print page

Products
Downloads
Description
Part Number Material Number Type Length Thread Price Add to Parts List

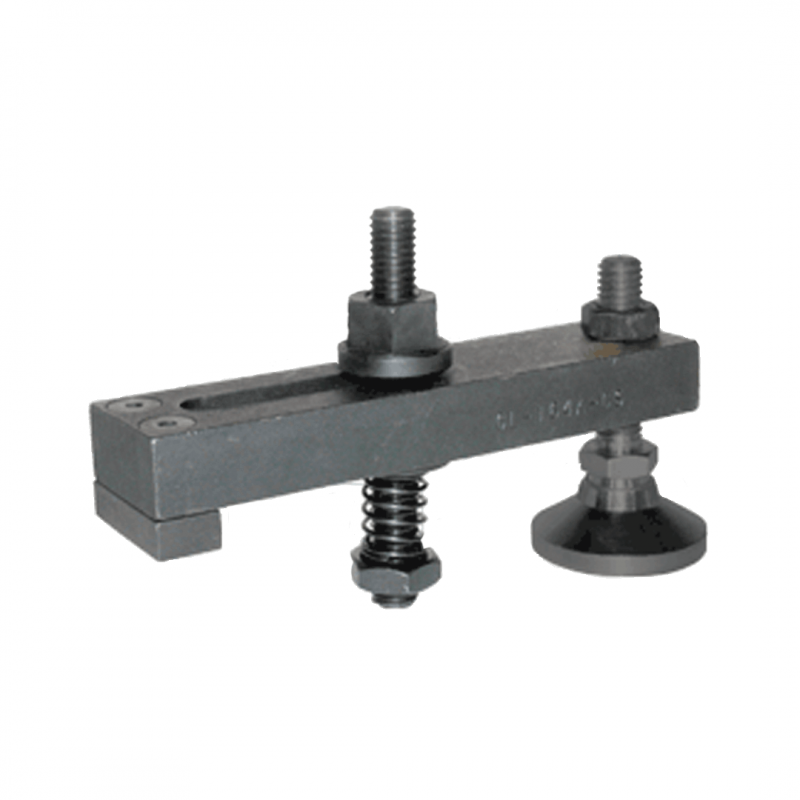

CL-162A-THPA-LF CL-162A-THPA-LF Levelling Foot Assembly 4-1/2 3/8-16 £59.06
£70.87 Inc. VAT
CL-164A-THPA-LF CL-164A-THPA-LF Levelling Foot Assembly 6 1/2-13 £65.28
£78.34 Inc. VAT
CL-157-THPA-LF CL-157-THPA-LF Levelling Foot Assembly 2 1/4-20 £41.38
£49.66 Inc. VAT
CL-160A-THPA-LF CL-160A-THPA-LF Levelling Foot Assembly 3-1/2 3/8-16 £57.19
£68.63 Inc. VAT
CL-163A-THPA-LF CL-163A-THPA-LF Levelling Foot Assembly 4-1/2 1/2-13 £63.08
£75.70 Inc. VAT

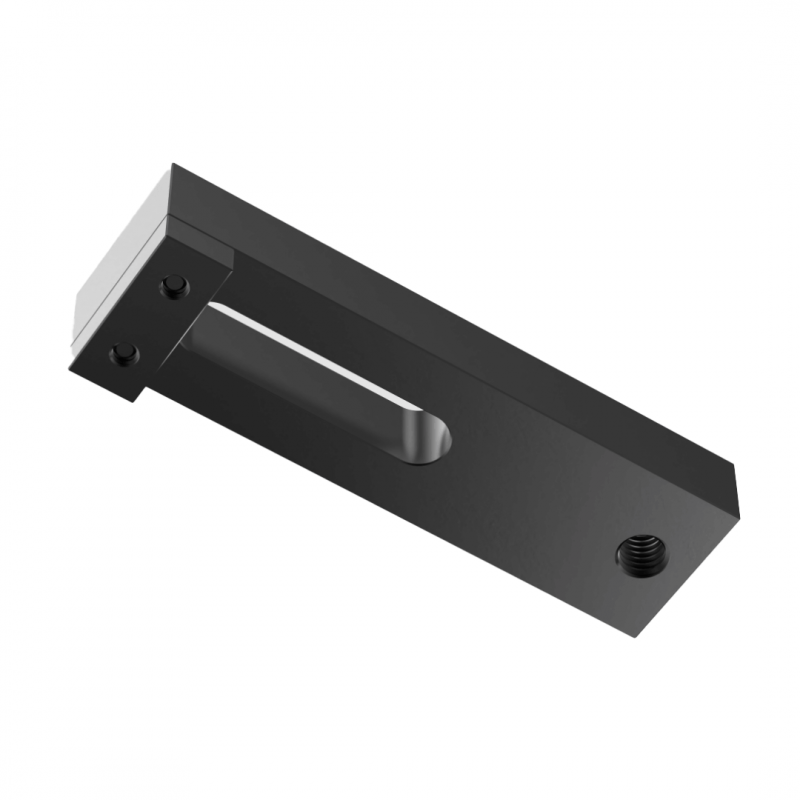

CL-158A-CS CL-158A-CS Clamp Strap 2-1/2 5/16-18 £27.66
£33.19 Inc. VAT
CL-159A-CS CL-159A-CS Clamp Strap 3-1/2 5/16-18 £29.76
£35.71 Inc. VAT
CL-160A-CS CL-160A-CS Clamp Strap 3-1/2 3/8-16 £34.68
£41.62 Inc. VAT
CL-162A-CS CL-162A-CS Clamp Strap 4-1/2 3/8-16 £36.43
£43.72 Inc. VAT
CL-163A-CS CL-163A-CS Clamp Strap 4-1/2 1/2-13 £38.63
£46.36 Inc. VAT
CL-164A-CS CL-164A-CS Clamp Strap 6 1/2-13 £40.49
£48.59 Inc. VAT
CL-157-CS CL-157-CS Clamp Strap 2 1/4-20 £27.38
£32.86 Inc. VAT

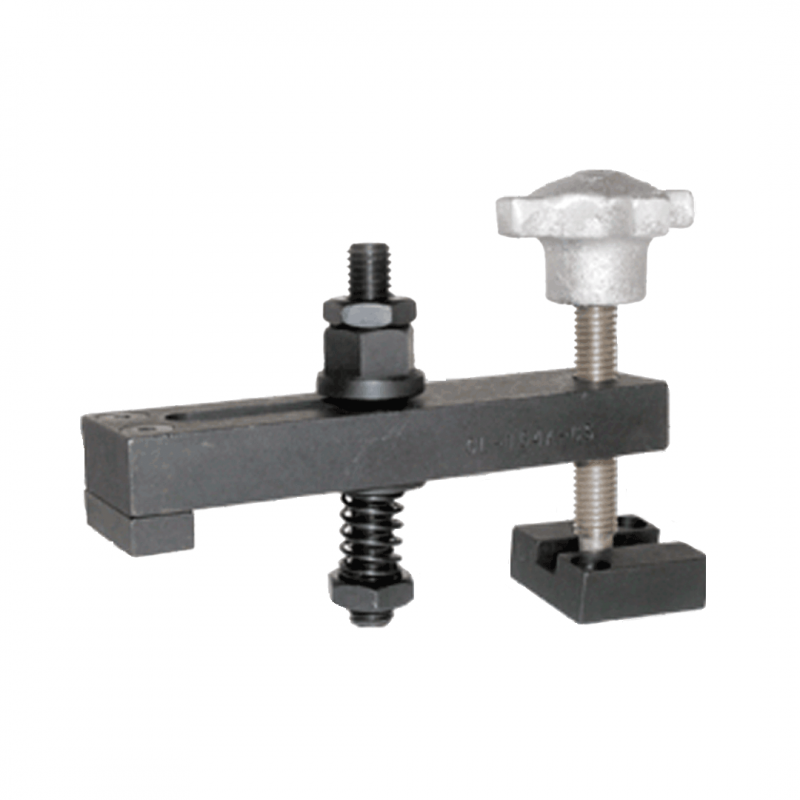

CL-160A-THPA-HK CL-160A-THPA-HK Hand Knob Clamping Screw Assembly 3-1/2 3/8-16 £58.90
£70.68 Inc. VAT
CL-163A-THPA-HK CL-163A-THPA-HK Hand Knob Clamping Screw Assembly 4-1/2 1/2-13 £62.24
£74.69 Inc. VAT
CL-157-THPA-HK CL-157-THPA-HK Hand Knob Clamping Screw Assembly 2 1/4-20 £46.10
£55.32 Inc. VAT
CL-162A-THPA-HK CL-162A-THPA-HK Hand Knob Clamping Screw Assembly 4-1/2 3/8-16 £63.71
£76.45 Inc. VAT
CL-164A-THPA-HK CL-164A-THPA-HK Hand Knob Clamping Screw Assembly 6 1/2-13 £63.53
£76.24 Inc. VAT

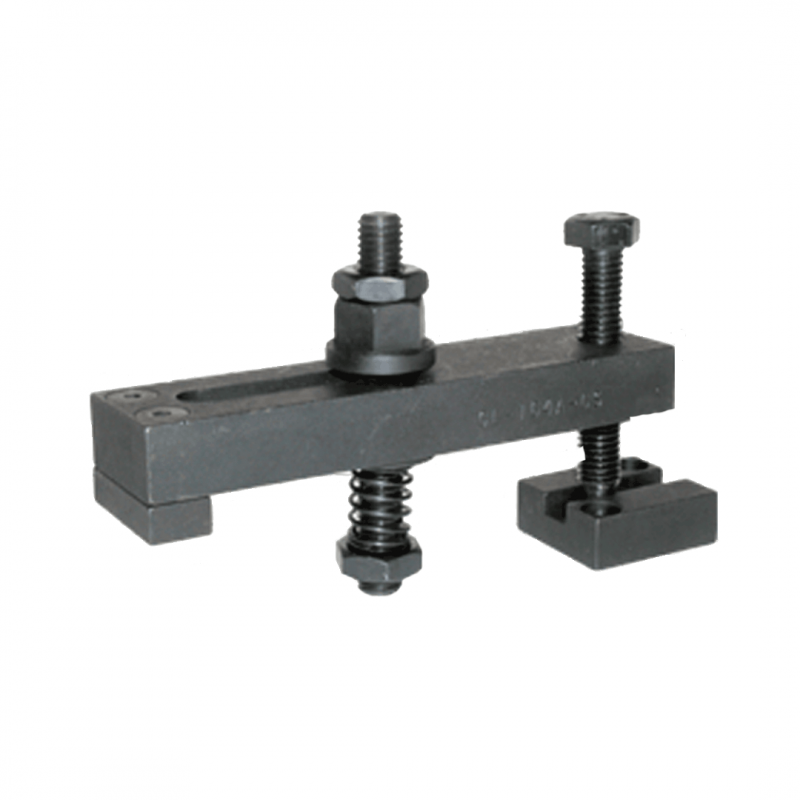

CL-160A-THPA-HH CL-160A-THPA-HH Hex Head Clamping Screw Assembly 3-1/2 3/8-16 £53.00
£63.60 Inc. VAT
CL-163A-THPA-HH CL-163A-THPA-HH Hex Head Clamping Screw Assembly 4-1/2 1/2-13 £61.72
£74.06 Inc. VAT
CL-157-THPA-HH CL-157-THPA-HH Hex Head Clamping Screw Assembly 2 1/4-20 £42.62
£51.14 Inc. VAT
CL-162A-THPA-HH CL-162A-THPA-HH Hex Head Clamping Screw Assembly 4-1/2 3/8-16 £58.10
£69.72 Inc. VAT
CL-164A-THPA-HH CL-164A-THPA-HH Hex Head Clamping Screw Assembly 6 1/2-13 £62.15
£74.58 Inc. VAT

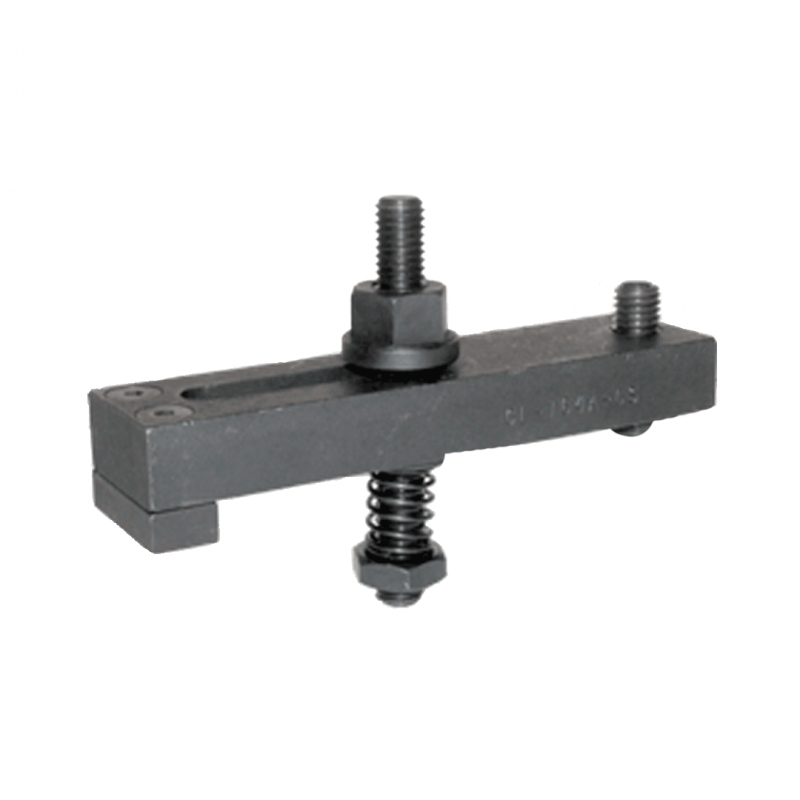

CL-164A-THPA-OP CL-164A-THPA-OP Oval Point Clamp Rest Assembly 6 1/2-13 £54.07
£64.88 Inc. VAT
CL-157-THPA-OP CL-157-THPA-OP Oval Point Clamp Rest Assembly 2 1/4-20 £33.49
£40.19 Inc. VAT
CL-162A-THPA-OP CL-162A-THPA-OP Oval Point Clamp Rest Assembly 4-1/2 3/8-16 £47.90
£57.48 Inc. VAT
CL-160A-THPA-OP CL-160A-THPA-OP Oval Point Clamp Rest Assembly 3-1/2 3/8-16 £44.57
£53.48 Inc. VAT
CL-163A-THPA-OP CL-163A-THPA-OP Oval Point Clamp Rest Assembly 4-1/2 1/2-13 £53.21
£63.85 Inc. VAT
Carr Lane Tapped-Heel Padded Clamp Straps

Carr Lane Tapped-Heel Padded Clamp Strap Assemblies

Carr Lane Tapped-Heel Padded Clamp Straps include a replaceable clamping pad secured with two screws. They also fit to custom pads or other attachments. The straps are available to accommodate stud sizes ranging from 1/4-20 to 1/2-13, with various strap length options. Each side has a tapped hole at the rear for installing a Finger Pin. This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are assembly with hex-head clamping screw, assembly with hand-knob clamping screw, assembly with levelling foot and assembly with clamp rest.
