Carr Lane Double-End Gooseneck Clamp Straps

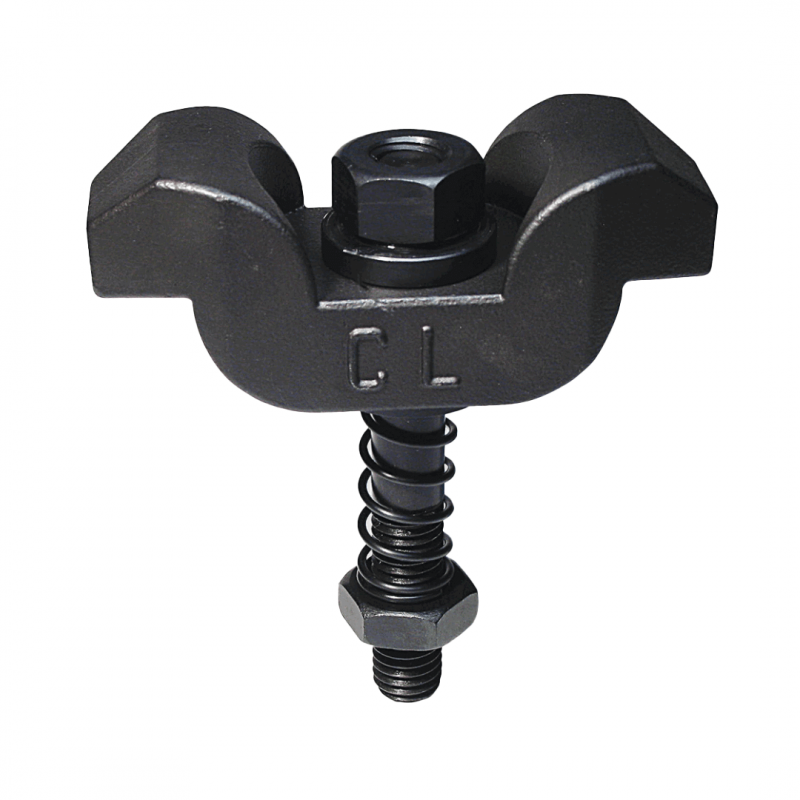

Carr Lane double-end gooseneck clamp straps have two identical clamping ends, for holding two workpieces simultaneously. Strap turned 90º to allow for clear loading. These clamps are available in one clamp size that accommodates stud sizes 1/2-13 and 5/8-11 (M12 and M16 in metric). This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are assembly with spherical nut & washer, assembly with flange nut and assembly with acorn nut & spherical washer.
- Straps and four types of assembly
- Metric and imperial sizes available
- Thread - 1/2-13 and 5/8-11 or M12 and M16
| Part Number | Material Number | Type | Metric or Imperial | Thread | Price | Add to Parts List |
|---|---|---|---|---|---|---|
| CL-842-GCSA-1 | Spherical Nut and Washer Assembly | Imperial | M12 | £55.73 £66.88 Inc. VAT |
|
|
| CLM-842-GCSA-1 | Spherical Nut and Washer Assembly | Metric | 1/2-13 | £61.22 £73.46 Inc. VAT |
|
|
| CL-1042-GCSA-1 | Spherical Nut and Washer Assembly | Imperial | M16 | £58.99 £70.79 Inc. VAT |
|
|
| CLM-1042-GCSA-1 | Spherical Nut and Washer Assembly | Metric | 5/8-11 | £65.77 £78.92 Inc. VAT |
|
|

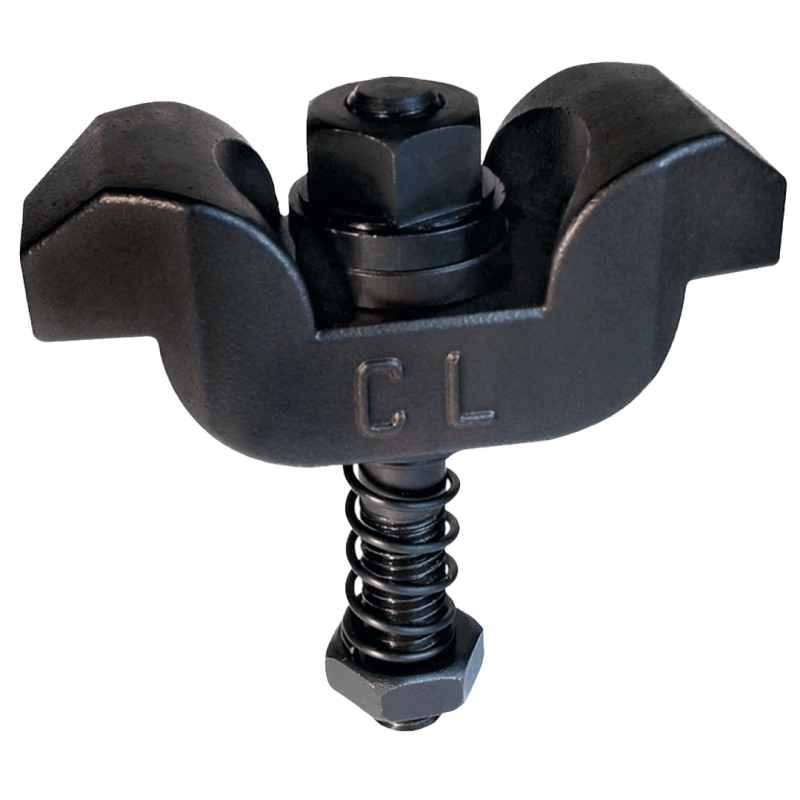

| CL-842-GCSA-2 | Flange Nut Assembly | Imperial | M12 | £52.67 £63.20 Inc. VAT |
|
|
| CLM-842-GCSA-2 | Flange Nut Assembly | Metric | 1/2-13 | £60.37 £72.44 Inc. VAT |
|
|
| CL-1042-GCSA-2 | Flange Nut Assembly | Imperial | M16 | £56.14 £67.37 Inc. VAT |
|
|
| CLM-1042-GCSA-2 | Flange Nut Assembly | Metric | 5/8-11 | £61.54 £73.85 Inc. VAT |
|
|

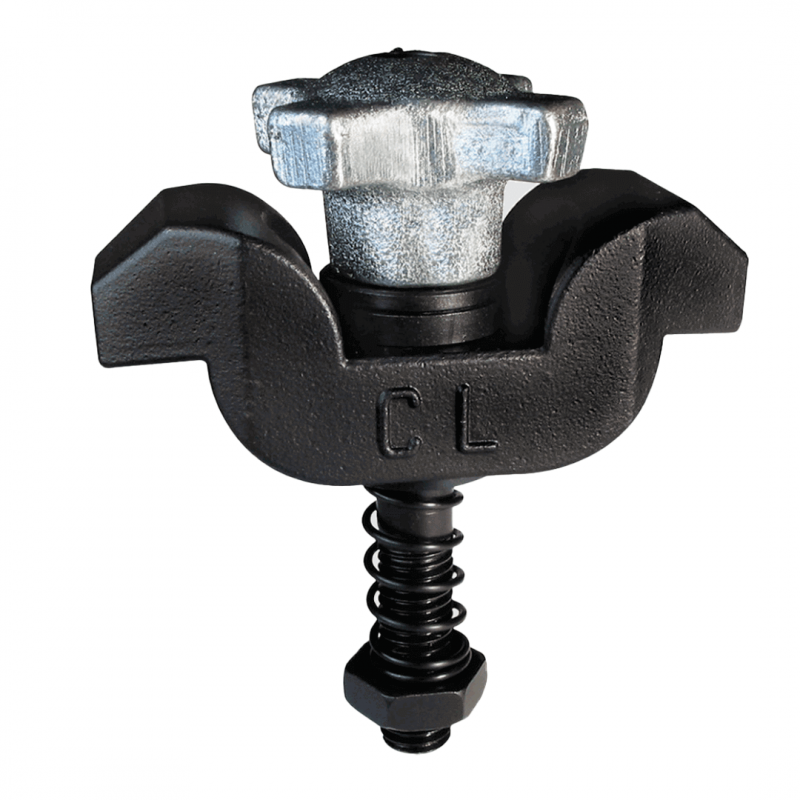

| CL-842-GCSA-4 | Hand Knob and Spherical Washer Assembly | Imperial | M12 | £57.84 £69.41 Inc. VAT |
|
|
| CLM-842-GCSA-4 | Hand Knob and Spherical Washer Assembly | Metric | 1/2-13 | £57.84 £69.41 Inc. VAT |
|
|
| CL-1042-GCSA-4 | Hand Knob and Spherical Washer Assembly | Imperial | M16 | £59.90 £71.88 Inc. VAT |
|
|
| CLM-1042-GCSA-4 | Hand Knob and Spherical Washer Assembly | Metric | 5/8-11 | £61.54 £73.85 Inc. VAT |
|
|

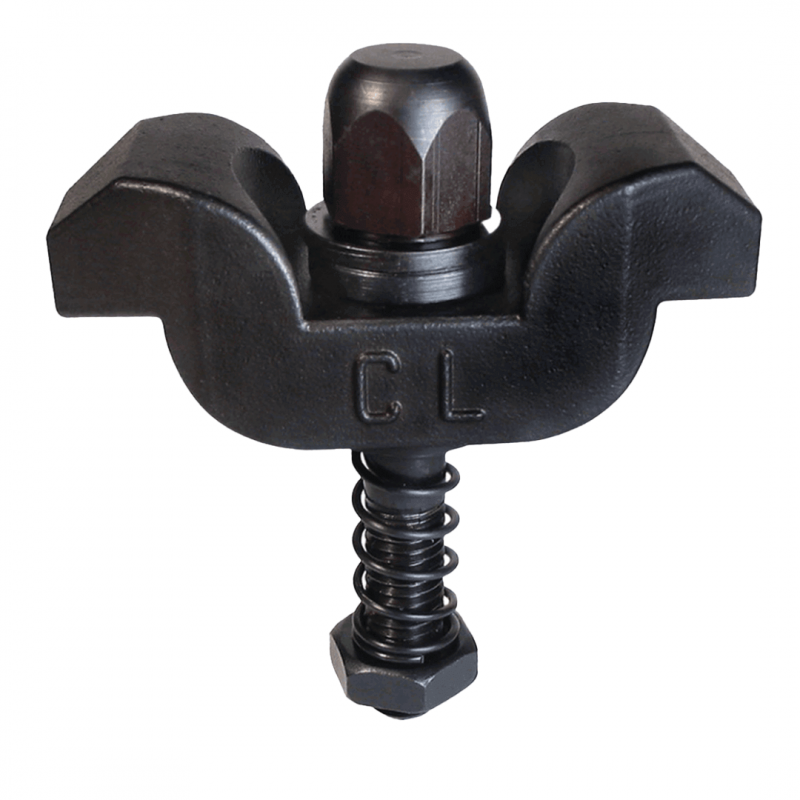

| CL-842-GCSA-5 | Acorn Nut and Spherical Washer Assembly | Imperial | M12 | £56.94 £68.33 Inc. VAT |
|
|
| CL-1042-GCSA-5 | Acorn Nut and Spherical Washer Assembly | Imperial | M16 | £62.76 £75.31 Inc. VAT |
|
|

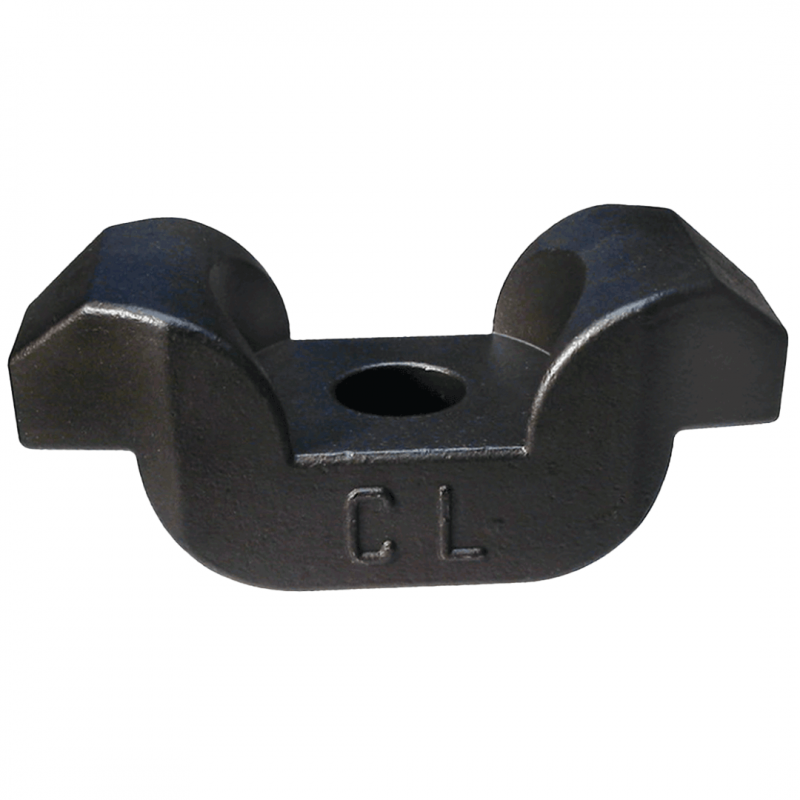

| CL-842-GCS | Clamp Strap | Imperial | 1/2-13, 5/8-11, M12 or M16 | £43.28 £51.94 Inc. VAT |
|
Carr Lane Double-End Gooseneck Clamp Stap Assemblies
Carr Lane double-end gooseneck clamp straps have two identical clamping ends, for holding two workpieces simultaneously. Strap turned 90º to allow for clear loading. These clamps are available in one clamp size that accommodates stud sizes 1/2-13 and 5/8-11 (M12 and M16 in metric). This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are assembly with spherical nut & washer, assembly with flange nut and assembly with acorn nut & spherical washer.
- Straps and four types of assembly
- Metric and imperial sizes available
- Thread - 1/2-13 and 5/8-11 or M12 and M16
