Carr Lane Serrated Edge Clamps

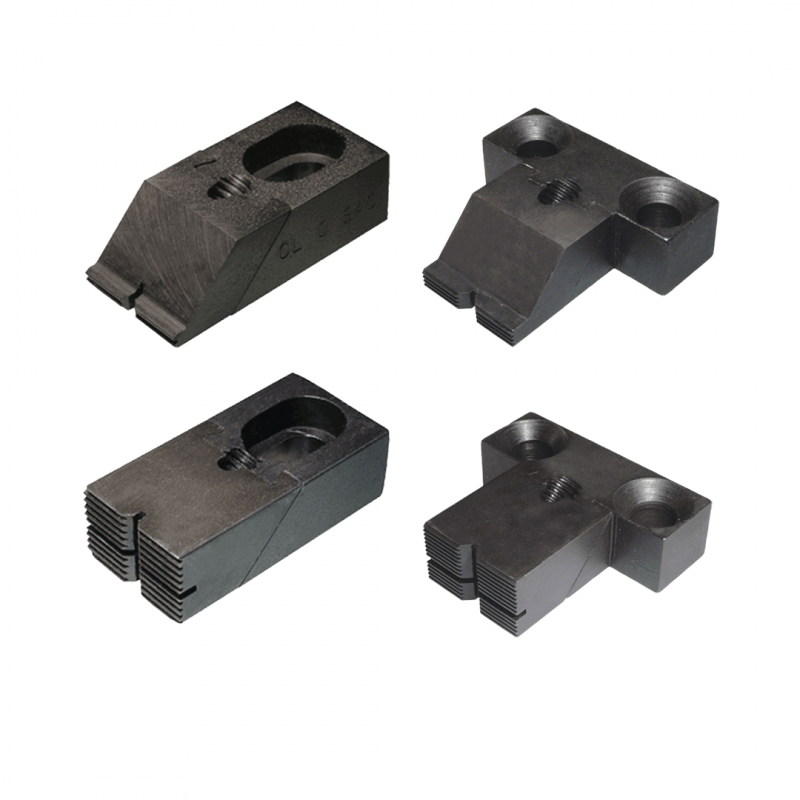

Carr lane serrated edge clamps are available in four variations. These include adjustable edge clamps with either a high or low nose as well as fixed edge clamps with a high or low nose. All variants are available in both metric and imperial sizes. These clamps are perfect for securely gripping the side f a work piece to make space for machining in the clear area on top. The fixed variants are well suited to be used on permanent fixtures as they are designed with two fixed mounting holes to secure it instead of a slot.

  • Available with high and low nose options
  • Adjustable or fixed variants available
  • Available in metric and imperial sizes
Print page

Products
Downloads
Description
Part Number Material Number Length Mounting Screw Size Clamp Type Price Add to Parts List
CL-40-SFC CL-40-SFC 2-11/16 1/2-13 Fixed Edge Clamp Low Nose £103.87
£124.64 Inc. VAT
CL-45-SFC CL-45-SFC 2-11/16 1/2-13 Fixed Edge Clamp High Nose £104.09
£124.91 Inc. VAT
CL-5-SFC CL-5-SFC 1-13/16 5/16-18 Fixed Edge Clamp High Nose £92.60
£111.12 Inc. VAT
CL-0-SFC CL-0-SFC 1-13/16 5/16-18 Fixed Edge Clamp Low Nose £87.97
£105.56 Inc. VAT
CL-95-SAC CL-95-SAC 8-1/4 5/8-11 or M16 Adjustable Edge Clamp High Nose £195.24
£234.29 Inc. VAT
CL-90-SAC CL-90-SAC 8-1/4 5/8-11 or M16 Adjustable Edge Clamp Low Nose £188.30
£225.96 Inc. VAT
CL-125-SAC CL-125-SAC 8-1/4 3/4-10 or M20 Adjustable Edge Clamp High Nose £197.72
£237.26 Inc. VAT
CL-120-SAC CL-120-SAC 8-1/4 3/4-10 or M20 Adjustable Edge Clamp Low Nose £187.90
£225.48 Inc. VAT
CL-65-SAC CL-65-SAC 7-1/8 1/2-13 or M12 Adjustable Edge Clamp High Nose £162.28
£194.74 Inc. VAT
CL-60-SAC CL-60-SAC 7-1/8 1/2-13 or M12 Adjustable Edge Clamp Low Nose £153.28
£183.94 Inc. VAT
CL-105-SAC CL-105-SAC 5-1/2 3/4-10 or M20 Adjustable Edge Clamp High Nose £148.15
£177.78 Inc. VAT
CL-50-SAC CL-50-SAC 5-1/2 1/2-13 or M12 Adjustable Edge Clamp Low Nose £132.38
£158.86 Inc. VAT
CL-70-SA CL-70-SA 5-1/2 5/8-11 or M16 Adjustable Edge Clamp Low Nose On Enquiry
CL-100-SAC CL-100-SAC 5-1/2 3/4-10 or M20 Adjustable Edge Clamp Low Nose £138.30
£165.96 Inc. VAT
CL-70-SAC CL-70-SAC 5-1/2 5/8-11 or M16 Adjustable Edge Clamp Low Nose £142.04
£170.45 Inc. VAT
CL-55-SAC CL-55-SAC 5-1/2 1/2-13 or M12 Adjustable Edge Clamp High Nose £141.37
£169.64 Inc. VAT
CL-75-SAC CL-75-SAC 5-1/2 5/8-11 or M16 Adjustable Edge Clamp High Nose £149.17
£179.00 Inc. VAT
CL-0-SAC CL-0-SAC 2 5/16-18 or M8 Adjustable Edge Clamp Low Nose £101.60
£121.92 Inc. VAT
CL-1-SAC CL-1-SAC 2 5/16-18 or M8 Adjustable Edge Clamp High Nose £114.50
£137.40 Inc. VAT
CL-5-SAC CL-5-SAC 3 5/16-18 or M8 Adjustable Edge Clamp High Nose £100.14
£120.17 Inc. VAT
CL-15-SAC CL-15-SAC 3 3/8-16 or M10 Adjustable Edge Clamp High Nose £113.77
£136.52 Inc. VAT
CL-00-SAC CL-00-SAC 3 5/16-18 or M8 Adjustable Edge Clamp Low Nose £87.10
£104.52 Inc. VAT
CL-10-SAC CL-10-SAC 3 3/8-16 or M10 Adjustable Edge Clamp Low Nose £109.81
£131.77 Inc. VAT
CL-40-SAC CL-40-SAC 4 1/2-13 or M12 Adjustable Edge Clamp Low Nose £121.24
£145.49 Inc. VAT
CL-45-SAC CL-45-SAC 4 1/2-13 or M12 Adjustable Edge Clamp High Nose £130.27
£156.32 Inc. VAT
CL-35-SAC CL-35-SAC 5 3/8-16 or M10 Adjustable Edge Clamp High Nose £137.98
£165.58 Inc. VAT
CL-30-SAC CL-30-SAC 5 3/8-16 or M10 Adjustable Edge Clamp Low Nose £133.98
£160.78 Inc. VAT
CL-75-SFC CL-75-SFC 3-1/2 5/8-11 Fixed Edge Clamp High Nose £123.67
£148.40 Inc. VAT
CL-70-SFC CL-70-SFC 3-1/2 5/8-11 Fixed Edge Clamp Low Nose £121.62
£145.94 Inc. VAT
CL-25-SAC CL-25-SAC 4-1/4 3/8-16 or M10 Adjustable Edge Clamp High Nose £128.00
£153.60 Inc. VAT
CL-20-SAC CL-20-SAC 4-1/4 3/8-16 or M10 Adjustable Edge Clamp Low Nose £124.07
£148.88 Inc. VAT

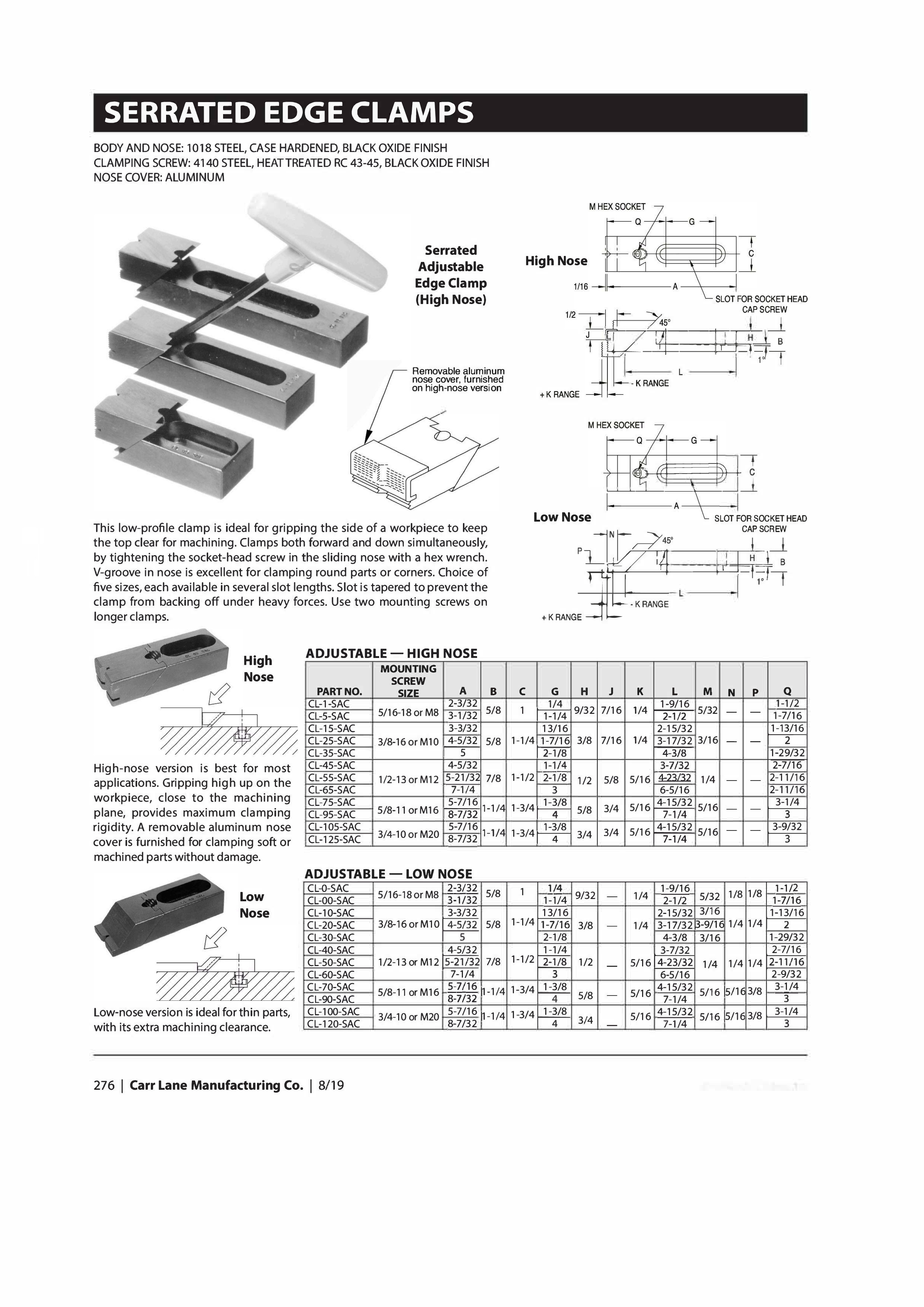

Carr Lane Serrated Edge Clamps datasheet

Carr Lane Serrated Edge Clamps

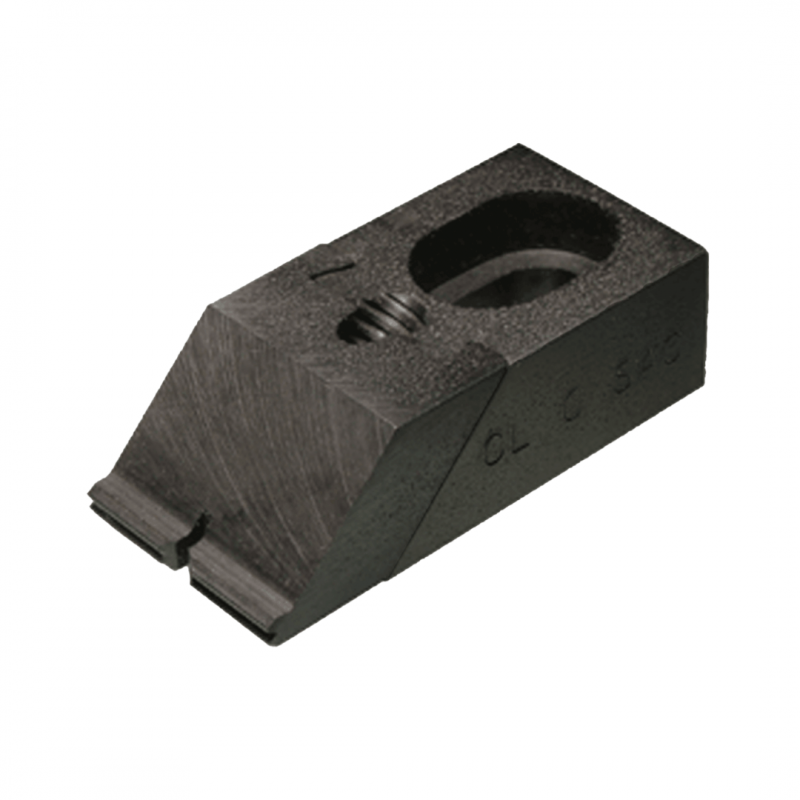

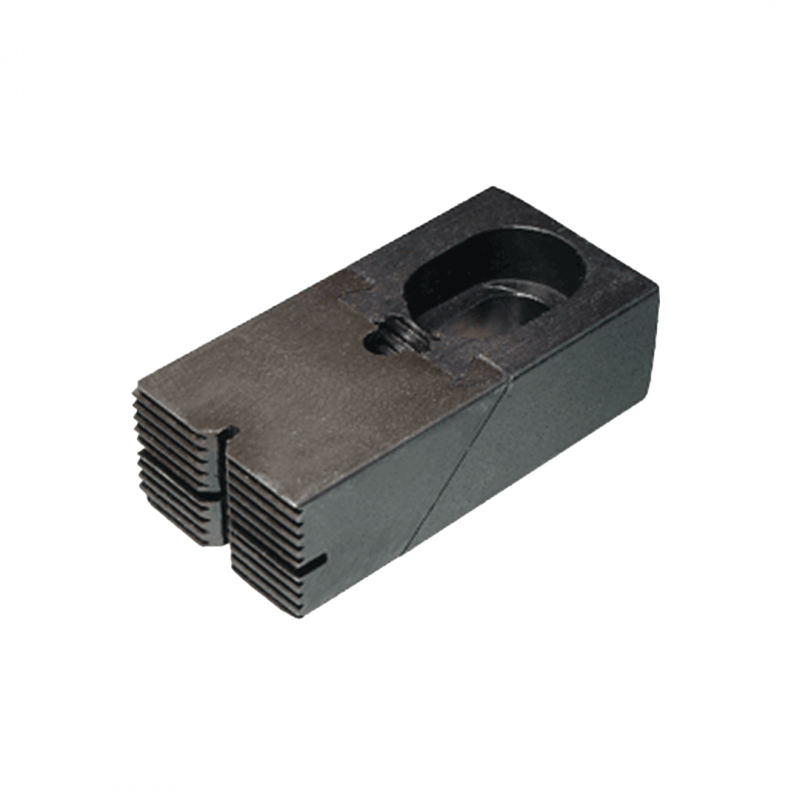

Serrated Adjustable Edge Clamps are low-profile clamps, ideal for gripping the side of a workpiece to keep the top clear for machining. Clamps both forward and down simultaneously, by tightening the socket-head screw in the sliding nose with a hex wrench.

V-groove in nose is excellent for clamping round parts or corners. With a choice of five sizes, each available with different slot lengths. Slot is tapered to prevent the clamp from backing off under heavy force, use two mounting screws on longer clamps.

Options:

  • Fixed and Adjustable Serrated Edge Clamps
  • Both with High and Low nose options

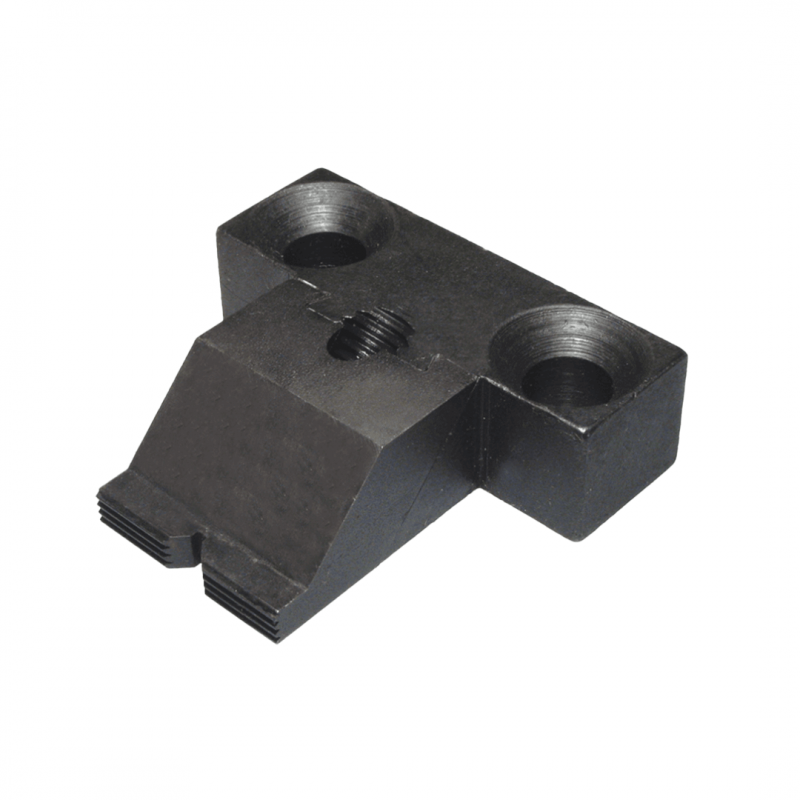

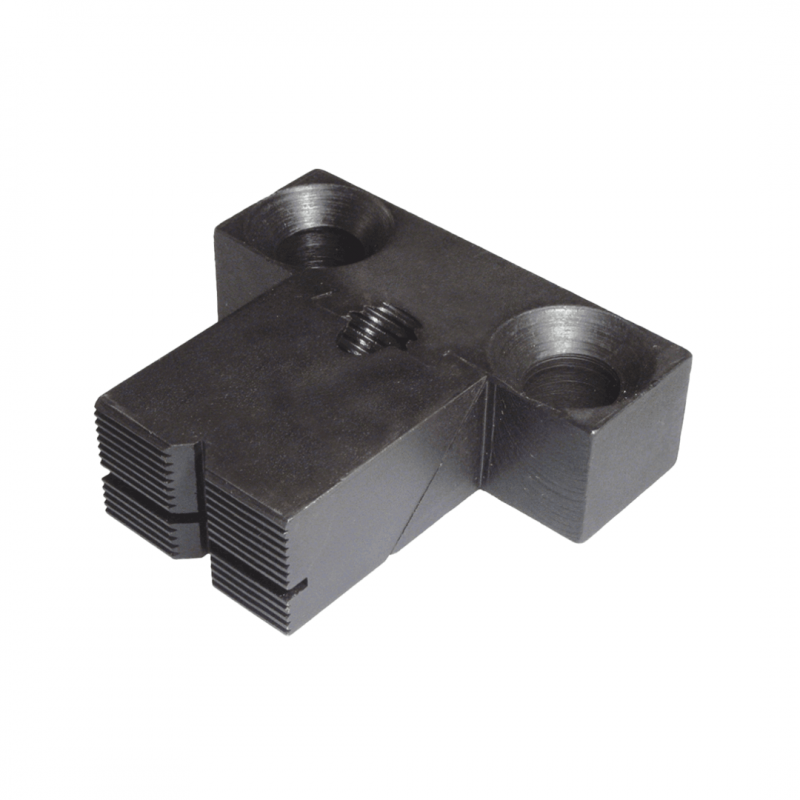

Serrated Fixed Edge Clamps mount in fixed position rather than having a slot for adjustment. This makes the clamps more compact and ensures tgat they are mounted in the correct location without requiring adjustment. The fixed version is usually better for permanent fixtures, whilte the adjustable is better for machine-table mounting. The Flat-Head Socket Screws used for moutning absolutely hold proper location (ordered seperately), with a choice of three clamp sizes iwth either high nose or low nose.
