Carr Lane One-Touch Quick-Acting Swing Clamps

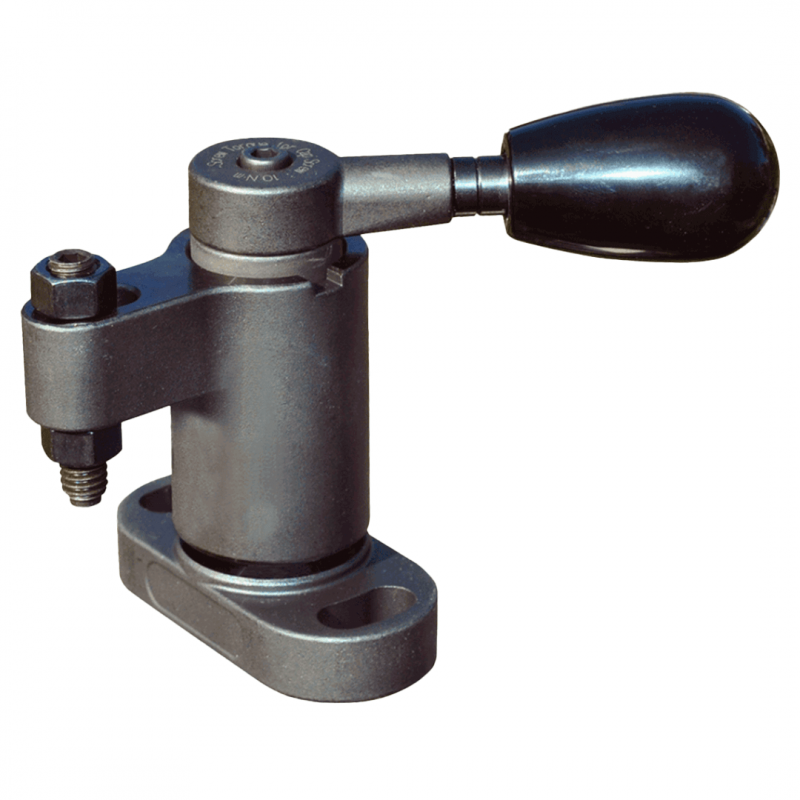

Carr Lane one-touch quick acting swing clamps are available in three variations including vertical cam handle, hex drive and horizontal cam lever. One-Touch Swing Clamps are manually operated clamps that first rotate exactly 70° clockwise into position then clamp straight down in one continuous motion. Each variant has different clamp sizes that apply a range of different maximum clamping forces.

All clamp types available in four sizes

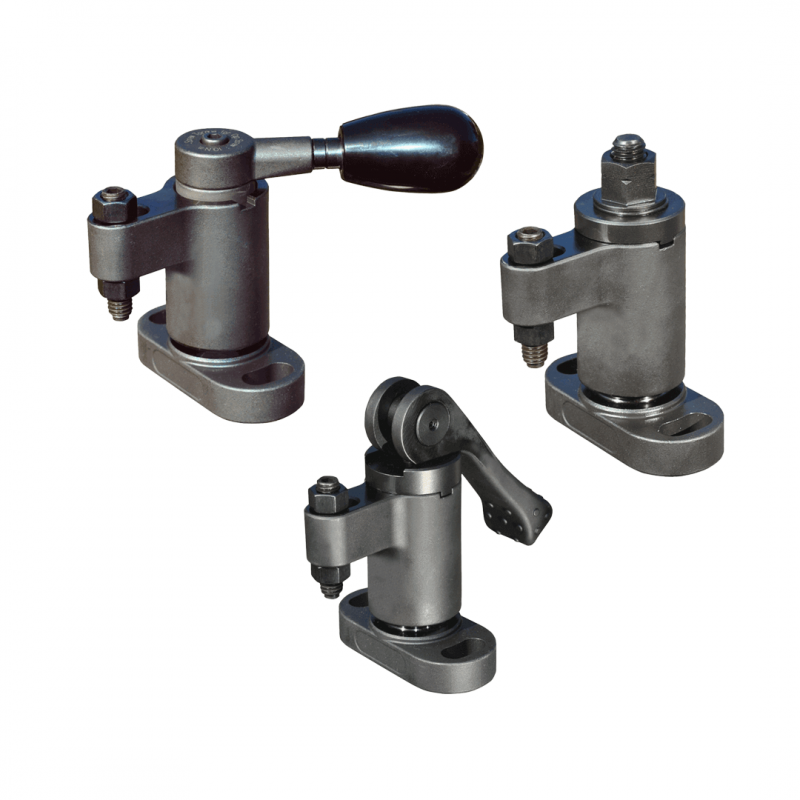

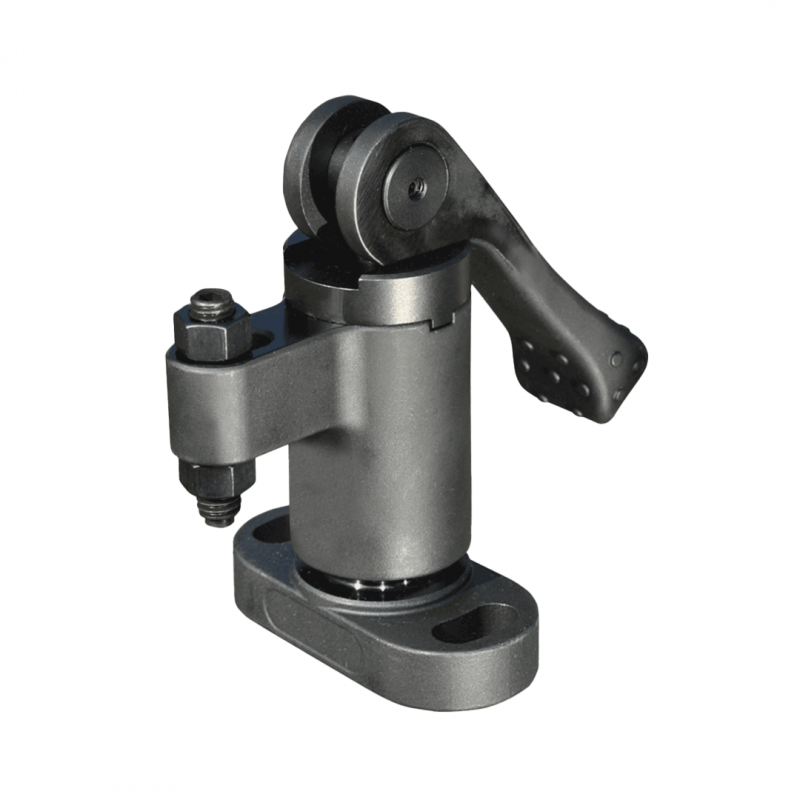

Available in hex drive, vertical cam handle , horizontal cam lever variants

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	Max.Clamping Force (lbs)	Max.Clamping Stroke	Swing and Advance Stroke	Clamp Type	Price
CL-300-QSCR CL-300-QSCR	800	.07	.07	Horizontal Cam Lever	£432.56 £519.07 Inc. VAT
CL-150-QSCH CL-150-QSCH	800	.16	.02	Hex Drive	£273.54 £328.25 Inc. VAT
CL-200-QSCH CL-200-QSCH	1300	.16	.03	Hex Drive	£270.87 £325.04 Inc. VAT
CL-300-QSCH CL-300-QSCH	1700	.20	.03	Hex Drive	£333.47 £400.16 Inc. VAT
CL-100-QSCV CL-100-QSCV	180	.04	.03	Verticle Cam Handle	£206.37 £247.64 Inc. VAT
CL-150-QSCV CL-150-QSCV	340	.06	.04	Verticle Cam Handle	£243.98 £292.78 Inc. VAT
CL-200-QSCV CL-200-QSCV	470	.06	.05	Verticle Cam Handle	£352.34 £422.81 Inc. VAT
CL-300-QSCV CL-300-QSCV	630	.07	.07	Verticle Cam Handle	£432.56 £519.07 Inc. VAT
CL-100-QSCR CL-100-QSCR	250	.04	.03	Horizontal Cam Lever	£206.37 £247.64 Inc. VAT
CL-150-QSCR CL-150-QSCR	400	.06	.04	Horizontal Cam Lever	£243.98 £292.78 Inc. VAT
CL-200-QSCR CL-200-QSCR	500	.06	.05	Horizontal Cam Lever	£352.34 £422.81 Inc. VAT
CL-100-QSCH CL-100-QSCH	500	.12	.02	Hex Drive	£214.23 £257.08 Inc. VAT

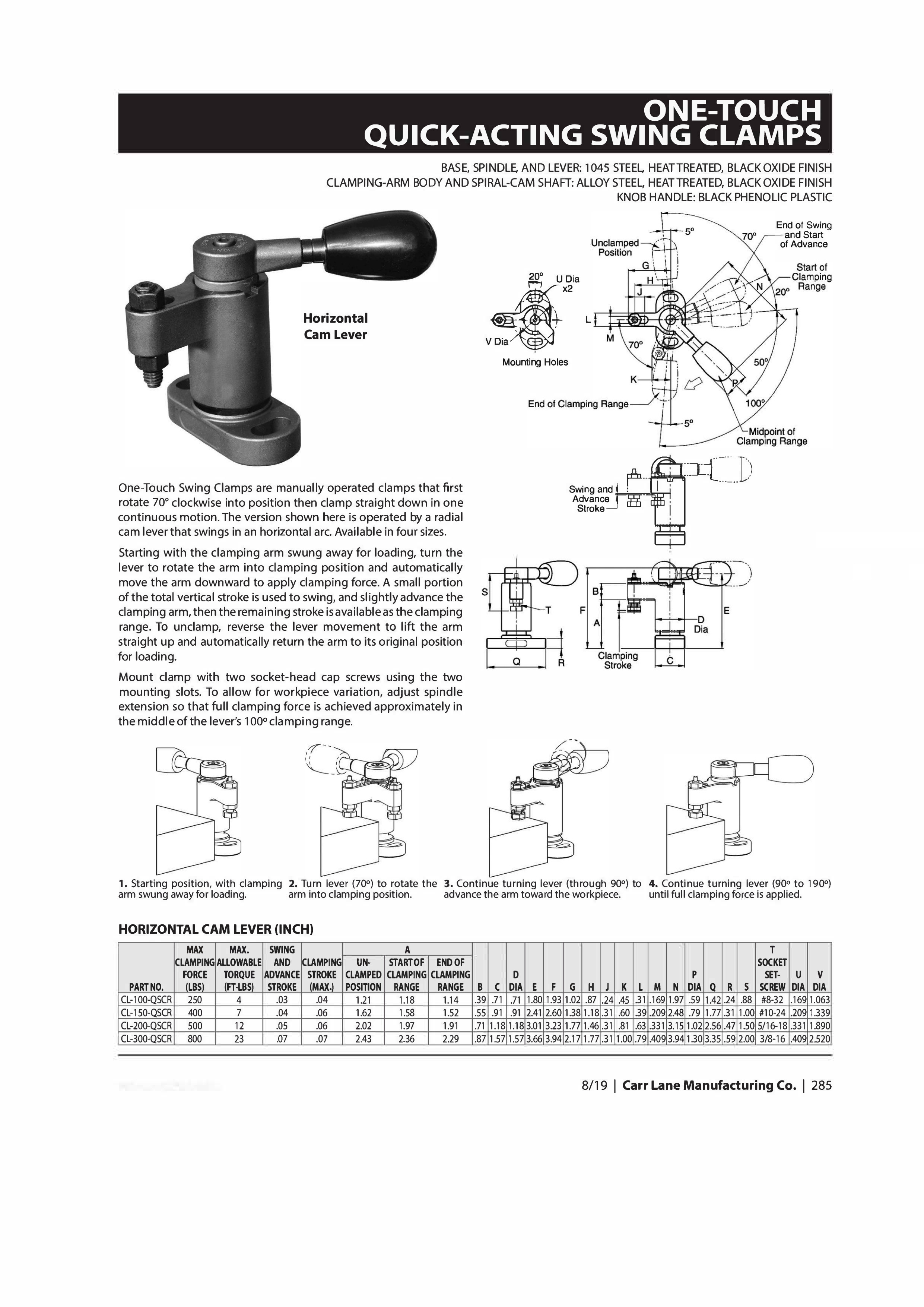

Carr Lane One-Touch Quick-Acting Swing Clamps datasheet
