Carr Lane Swing Clamp Assemblies

Carr Lane Swing clamp assemblies are available in five different sizes across all variants. These variants include flange mounted with knob handle or ball handle as well as post mounted with either knob handle or ball handle. The flange-mounted version is perfect for attaching to flat surfaces.. The post-mounted version is designed for tight spaces, with a long mounting post that offers enhanced strength. All assemblies feature a long-reach swing clamp that can be hand-tightened to provide medium clamping force.

  • Steel and Delrin
  • Length - 1-1/2 - 4
  • Thread - 5/16-18 - 5/8-11
  • Metric and Imperial sizes available

Print page

Products
Downloads
Description
Part Number Material Number Assembly Options Metric or Imperial Length Material Price Add to Parts List
CL-1-SWA-1N CL-1-SWA-1N Knob Handle, Post Mounted Imperial 5/16-18 Delrin £81.38
£97.66 Inc. VAT
CLM-1-SWA-1N CLM-1-SWA-1N Knob Handle, Post Mounted Metric M8 Delrin £81.38
£97.66 Inc. VAT
CL-2-SWA-1N CL-2-SWA-1N Knob Handle, Post Mounted Imperial 5/8-11 Delrin £120.42
£144.50 Inc. VAT
CLM-2-SWA-1N CLM-2-SWA-1N Knob Handle, Post Mounted Metric M16 Delrin £120.42
£144.50 Inc. VAT
CL-4-SWA-1N CL-4-SWA-1N Knob Handle, Post Mounted Imperial 1/2-13 Delrin £96.71
£116.05 Inc. VAT
CLM-4-SWA-1N CLM-4-SWA-1N Knob Handle, Post Mounted Metric M12 Delrin £96.71
£116.05 Inc. VAT
CL-3-SWA-1N CL-3-SWA-1N Knob Handle, Post Mounted Imperial 5/8-11 Delrin £144.74
£173.69 Inc. VAT
CLM-3-SWA-1N CLM-3-SWA-1N Knob Handle, Post Mounted Metric M16 Delrin £147.74
£177.29 Inc. VAT
CL-5-SWA-1N CL-5-SWA-1N Knob Handle, Post Mounted Imperial 1/2-13 Delrin £98.12
£117.74 Inc. VAT
CLM-5-SWA-1N CLM-5-SWA-1N Knob Handle, Post Mounted Metric M12 Delrin £98.12
£117.74 Inc. VAT
CL-2-SWA-1 CL-2-SWA-1 Knob Handle, Post Mounted Imperial 5/8-11 Steel £120.42
£144.50 Inc. VAT
CLM-2-SWA-1 CLM-2-SWA-1 Knob Handle, Post Mounted Metric M16 Steel £120.42
£144.50 Inc. VAT
CL-4-SWA-1 CL-4-SWA-1 Knob Handle, Post Mounted Imperial 1/2-13 Steel £96.71
£116.05 Inc. VAT
CLM-4-SWA-1 CLM-4-SWA-1 Knob Handle, Post Mounted Metric M12 Steel £96.71
£116.05 Inc. VAT
CL-3-SWA-1 CL-3-SWA-1 Knob Handle, Post Mounted Imperial 5/8-11 Steel £141.61
£169.93 Inc. VAT
CLM-3-SWA-1 CLM-3-SWA-1 Knob Handle, Post Mounted Metric M16 Steel £144.74
£173.69 Inc. VAT
CL-5-SWA-1 CL-5-SWA-1 Knob Handle, Post Mounted Imperial 1/2-13 Steel £98.12
£117.74 Inc. VAT
CLM-5-SWA-1 CLM-5-SWA-1 Knob Handle, Post Mounted Metric M12 Steel £98.12
£117.74 Inc. VAT
CL-1-SWA-1 CL-1-SWA-1 Knob Handle, Post Mounted Imperial 5/16-18 Steel £81.38
£97.66 Inc. VAT
CLM-1-SWA-1 CLM-1-SWA-1 Knob Handle, Post Mounted Metric M8 Steel £81.38
£97.66 Inc. VAT
CLM-1-SWA-2N CLM-1-SWA-2N Ball Handle, Post Mounted Metric M8 Delrin £91.03
£109.24 Inc. VAT
CL-2-SWA-2N CL-2-SWA-2N Ball Handle, Post Mounted Imperial 5/8-11 Delrin £133.51
£160.21 Inc. VAT
CLM-2-SWA-2N CLM-2-SWA-2N Ball Handle, Post Mounted Metric M16 Delrin £133.51
£160.21 Inc. VAT
CL-4-SWA-2N CL-4-SWA-2N Ball Handle, Post Mounted Imperial 1/2-13 Delrin £98.30
£117.96 Inc. VAT
CLM-4-SWA-2N CLM-4-SWA-2N Ball Handle, Post Mounted Metric M12 Delrin £98.30
£117.96 Inc. VAT
CL-3-SWA-2N CL-3-SWA-2N Ball Handle, Post Mounted Imperial 5/8-11 Delrin £157.22
£188.66 Inc. VAT
CLM-3-SWA-2N CLM-3-SWA-2N Ball Handle, Post Mounted Metric M16 Delrin £157.22
£188.66 Inc. VAT
CL-5-SWA-2N CL-5-SWA-2N Ball Handle, Post Mounted Imperial 1/2-13 Delrin £102.41
£122.89 Inc. VAT
CLM-5-SWA-2N CLM-5-SWA-2N Ball Handle, Post Mounted Metric M12 Delrin £102.41
£122.89 Inc. VAT
CL-1-SWA-2N CL-1-SWA-2N Ball Handle, Post Mounted Imperial 5/16-18 Delrin £91.03
£109.24 Inc. VAT
CLM-2-SWA-2 CLM-2-SWA-2 Ball Handle, Post Mounted Metric M16 Steel £133.51
£160.21 Inc. VAT
CL-4-SWA-2 CL-4-SWA-2 Ball Handle, Post Mounted Imperial 1/2-13 Steel £98.30
£117.96 Inc. VAT
CLM-4-SWA-2 CLM-4-SWA-2 Ball Handle, Post Mounted Metric M12 Steel £98.30
£117.96 Inc. VAT
CL-3-SWA-2 CL-3-SWA-2 Ball Handle, Post Mounted Imperial 5/8-11 Steel £157.22
£188.66 Inc. VAT
CLM-3-SWA-2 CLM-3-SWA-2 Ball Handle, Post Mounted Metric M16 Steel £157.22
£188.66 Inc. VAT
CL-5-SWA-2 CL-5-SWA-2 Ball Handle, Post Mounted Imperial 1/2-13 Steel £102.41
£122.89 Inc. VAT
CLM-5-SWA-2 CLM-5-SWA-2 Ball Handle, Post Mounted Metric M12 Steel £102.41
£122.89 Inc. VAT
CL-1-SWA-2 CL-1-SWA-2 Ball Handle, Post Mounted Imperial 5/16-18 Steel £91.03
£109.24 Inc. VAT
CLM-1-SWA-2 CLM-1-SWA-2 Ball Handle, Post Mounted Metric M8 Steel £91.03
£109.24 Inc. VAT
CL-2-SWA-2 CL-2-SWA-2 Ball Handle, Post Mounted Imperial 5/8-11 Steel £133.51
£160.21 Inc. VAT
CL-2-SWA-3N CL-2-SWA-3N Knob Handle, Flange Mounted Imperial 5/8-11 Delrin £133.38
£160.06 Inc. VAT
CL-4-SWA-3N CL-4-SWA-3N Knob Handle, Flange Mounted Imperial 1/2-13 Delrin £122.15
£146.58 Inc. VAT
CL-3-SWA-3N CL-3-SWA-3N Knob Handle, Flange Mounted Imperial 5/8-11 Delrin £157.39
£188.87 Inc. VAT
CL-5-SWA-3N CL-5-SWA-3N Knob Handle, Flange Mounted Imperial 1/2-13 Delrin £129.28
£155.14 Inc. VAT
CL-1-SWA-3N CL-1-SWA-3N Knob Handle, Flange Mounted Imperial 5/16-18 Delrin £97.82
£117.38 Inc. VAT
CL-4-SWA-3 CL-4-SWA-3 Knob Handle, Flange Mounted Imperial 1/2-13 Steel £122.15
£146.58 Inc. VAT
CL-3-SWA-3 CL-3-SWA-3 Knob Handle, Flange Mounted Imperial 5/8-11 Steel £157.39
£188.87 Inc. VAT
CL-5-SWA-3 CL-5-SWA-3 Knob Handle, Flange Mounted Imperial 1/2-13 Steel £129.28
£155.14 Inc. VAT
CL-1-SWA-3 CL-1-SWA-3 Knob Handle, Flange Mounted Imperial 5/16-18 Steel £97.82
£117.38 Inc. VAT
CL-2-SWA-3 CL-2-SWA-3 Knob Handle, Flange Mounted Imperial 5/8-11 Steel £133.38
£160.06 Inc. VAT
CL-4-SWA-4N CL-4-SWA-4N Ball Handle, Flange Mounted Imperial 1/2-13 Delrin £125.94
£151.13 Inc. VAT
CL-3-SWA-4N CL-3-SWA-4N Ball Handle, Flange Mounted Imperial 5/8-11 Delrin £183.77
£220.52 Inc. VAT
CL-5-SWA-4N CL-5-SWA-4N Ball Handle, Flange Mounted Imperial 1/2-13 Delrin £134.94
£161.93 Inc. VAT
CL-1-SWA-4N CL-1-SWA-4N Ball Handle, Flange Mounted Imperial 5/16-18 Delrin £113.45
£136.14 Inc. VAT
CL-2-SWA-4N CL-2-SWA-4N Ball Handle, Flange Mounted Imperial 5/8-11 Delrin £147.74
£177.29 Inc. VAT
CL-4-SWA-4 CL-4-SWA-4 Ball Handle, Flange Mounted Imperial 1/2-13 Steel £125.94
£151.13 Inc. VAT
CL-3-SWA-4 CL-3-SWA-4 Ball Handle, Flange Mounted Imperial 5/8-11 Steel £183.77
£220.52 Inc. VAT
CL-5-SWA-4 CL-5-SWA-4 Ball Handle, Flange Mounted Imperial 1/2-13 Steel £134.94
£161.93 Inc. VAT
CL-1-SWA-4 CL-1-SWA-4 Ball Handle, Flange Mounted Imperial 5/16-18 Steel £113.45
£136.14 Inc. VAT
CL-2-SWA-4 CL-2-SWA-4 Ball Handle, Flange Mounted Imperial 5/8-11 Steel £147.74
£177.29 Inc. VAT

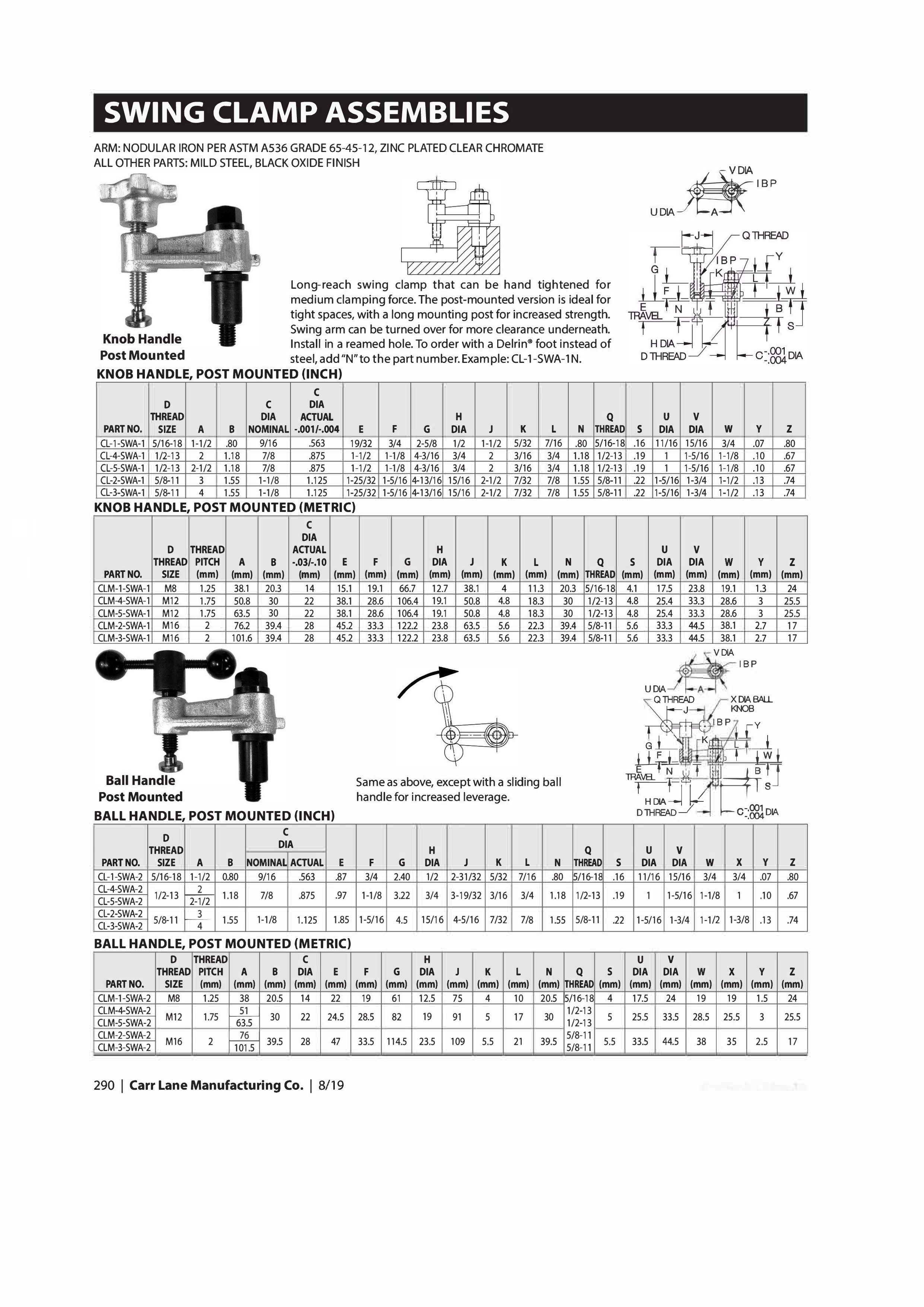

Carr Lane Swing Clamp Assemblies datasheet

Carr Lane Swing Clamp Assemblies

  • Carr Lane Swing clamp assemblies are available in five different sizes across all variants. These variants include flange mounted with knob handle or ball handle as well as post mounted with either knob handle or ball handle. The flange-mounted version is perfect for attaching to flat surfaces.. The post-mounted version is designed for tight spaces, with a long mounting post that offers enhanced strength. All assemblies feature a long-reach swing clamp that can be hand-tightened to provide medium clamping force.

  • Steel and Delrin
  • Length - 1-1/2 - 4
  • Thread - 5/16-18 - 5/8-11
  • Metric and Imperial sizes available
