Carr Lane Rotary T Nut and Stud Sets

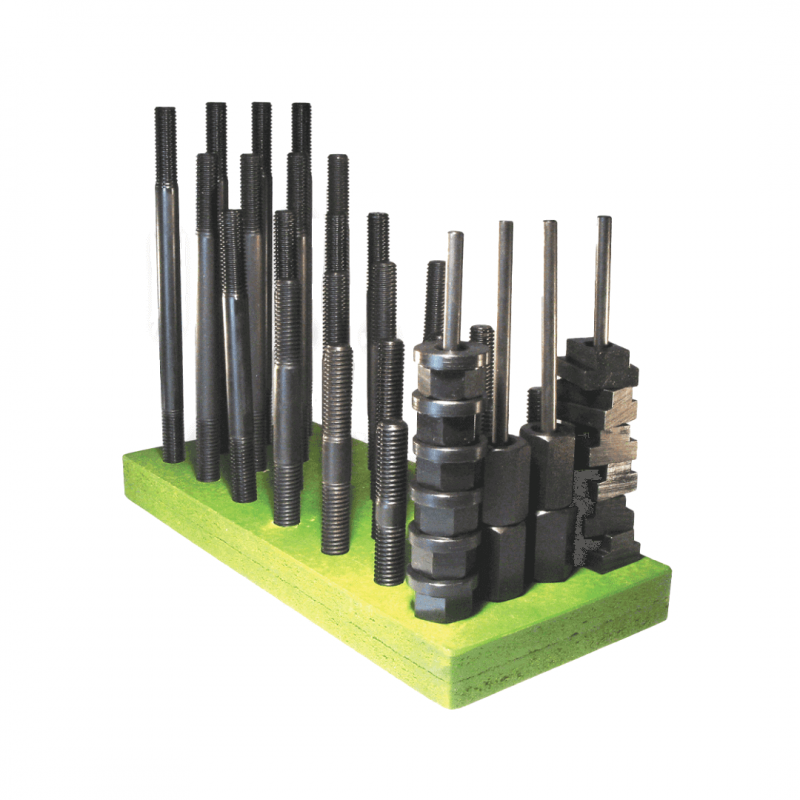

Rotary T Nuts can be inserted from the top of a T-slot, unlike standard T Nuts, which must be inserted from the end of the slot. This feature enables you to add T Nuts and studs anywhere on the table without disrupting existing setups. This 40-piece set includes a full range of stud lengths along with matching Rotary T Nuts, Flange Nuts, and Coupling Nuts. It is available to fit table-slot sizes from 1/2" to 1" (14 to 20mm metric) and thread sizes ranging from 3/8-16 to 3/4-10 (M10 to M16 metric).

Each set includes:

(6) Rotary T Nuts
(4) 3" Clamping Studs (80mm in metric)
(4) 4" Clamping Studs (95mm in metric)
(4) 5" Clamping Studs (125mm in metric)
(4) 6" Clamping Studs (150mm in metric)
(4) 7" Clamping Studs (175mm in metric)
(4) 8" Clamping Studs (200mm in metric)
(6) Flange Nuts
(4) Coupling Nuts
(1) Handy wooden holder

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	Metric or Imperial	Table Slot Size	Studs	Price
CLM-7-RTNS CLM-7-RTNS	Metric	11/16 or 18mm	M16	On Enquiry
CLM-8-RTNS CLM-8-RTNS	Metric	3/4 or 20	M16	On Enquiry
CLM-2-RTNS CLM-2-RTNS	Metric	1/2	M10	On Enquiry
CLM-4-RTNS CLM-4-RTNS	Metric	9/16 or 14mm	M12	On Enquiry
CLM-5-RTNS CLM-5-RTNS	Metric	5/8 or 16mm	M12	On Enquiry
CLM-6-RTNS CLM-6-RTNS	Metric	11/16 or 18mm	M12	On Enquiry
CL-6-RTNS CL-6-RTNS	Imperial	11/16 or 18mm	1/2-13	On Enquiry
CL-7-RTNS CL-7-RTNS	Imperial	11/16 or 18mm	5/8-11	On Enquiry
CL-12-RTNS CL-12-RTNS	Imperial	1	3/4-10	On Enquiry
CL-2-RTNS CL-2-RTNS	Imperial	1/2	3/8-16	On Enquiry
CL-4-RTNS CL-4-RTNS	Imperial	9/16 or 14mm	1/2-13	On Enquiry
CL-8-RTNS CL-8-RTNS	Imperial	3/4 or 20	5/8-11	On Enquiry
CL-5-RTNS CL-5-RTNS	Imperial	5/8 or 16mm	1/2-13	On Enquiry

Carr Lane Rotary T Nut and Stud Sets datasheet
