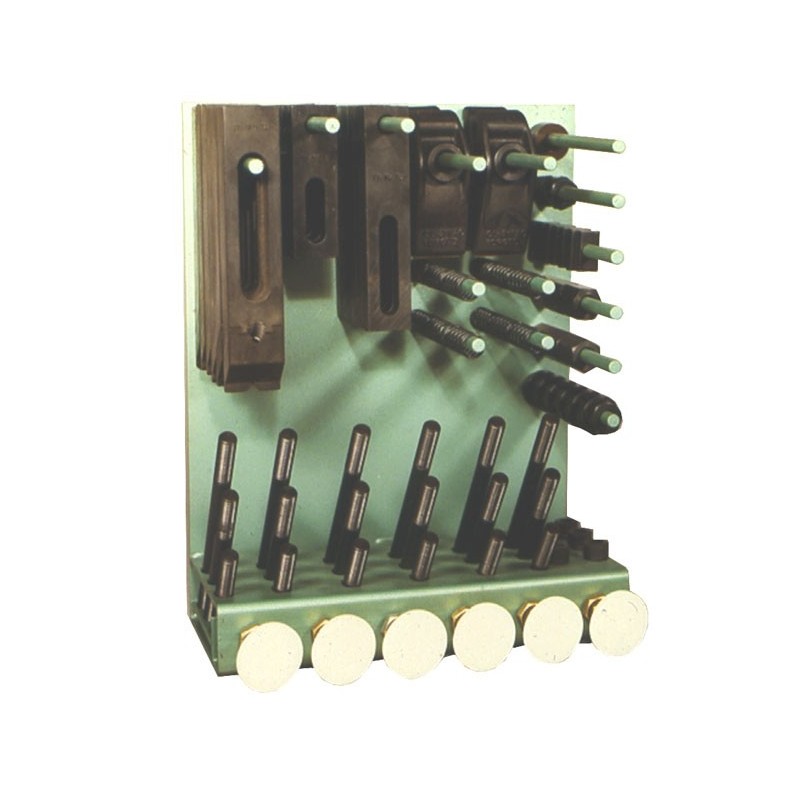

Carr Lane Deluxe Clamping Kits

Carr Lanes deluxe clamping kit offers three different types of clamps. Safer and more manageable than sets using Step Blocks and Clamps. Available to fit table-slot sizes from 7/16 to 13/16 (12mm to 20mm in metric), in thread sizes from 3/8-16 to 5/8-11 (M10 to M16 in metric).

This 94-piece kit includes:

(12) Tapped-Heel Clamp Straps, short and long
(4) Forged Adjustable Clamps
(6) Serrated Edge Clamps
(6) Stud Levelling Feet
(6) T Nuts
(6) Short Clamping Studs
(6) Medium Clamping Studs
(6) Long Clamping Studs
(6) Spherical Nuts & Washers
(6) Coupling Nuts
(6) Jam Nuts
(6) Flat Washers
(12) Clamp Springs
(6) Socket-Head Cap Screws
(1) Sturdy Steel Rack

Print page

First Name *

Last Name *

Position *

Email *

Company Name *

Contact Number *

Town/City *

Message *

Products

Downloads

Description

Part Number	Metric or Imperial	Material	Table Slot Size	Stud Size	Price
CLM-6-DCK CLM-6-DCK	Metric	Steel	11/16 or 18mm	M12	On Enquiry
CLM-1-DCK CLM-1-DCK	Metric	Steel	12mm	M10	On Enquiry
CLM-9-DCK CLM-9-DCK	Metric	Steel	13/16	M16	On Enquiry
CLM-4-DCK CLM-4-DCK	Metric	Steel	9/16 or 14mm	M12	On Enquiry
CLM-7-DCK CLM-7-DCK	Metric	Steel	11/16 or 18mm	M16	On Enquiry
CLM-2-DCK CLM-2-DCK	Metric	Steel	1/2	M10	On Enquiry
CLM-5-DCK CLM-5-DCK	Metric	Steel	5/8 or 16mm	M12	On Enquiry
CLM-8-DCK CLM-8-DCK	Metric	Steel	20mm	M16	On Enquiry
CLM-3-DCK CLM-3-DCK	Metric	Steel	9/16 or 14mm	M10	On Enquiry
CLM-8-DCKN CLM-8-DCKN	Metric	Delrin	20mm	M16	On Enquiry
CLM-3-DCKN CLM-3-DCKN	Metric	Delrin	9/16 or 14mm	M10	On Enquiry
CLM-6-DCKN CLM-6-DCKN	Metric	Delrin	11/16 or 18mm	M12	On Enquiry
CLM-1-DCKN CLM-1-DCKN	Metric	Delrin	12mm	M10	On Enquiry
CLM-9-DCKN CLM-9-DCKN	Metric	Delrin	13/16	M16	On Enquiry
CLM-4-DCKN CLM-4-DCKN	Metric	Delrin	9/16 or 14mm	M12	On Enquiry
CLM-7-DCKN CLM-7-DCKN	Metric	Delrin	11/16 or 18mm	M16	On Enquiry
CLM-2-DCKN CLM-2-DCKN	Metric	Delrin	1/2	M10	On Enquiry
CLM-5-DCKN CLM-5-DCKN	Metric	Delrin	5/8 or 16mm	M12	On Enquiry
CL-5-DCK CL-5-DCK	Imperial	Steel	5/8 or 16mm	1/2-13	On Enquiry
CL-20-DCK CL-20-DCK	Imperial	Steel	12mm	3/8-16	On Enquiry
CL-27-DCK CL-27-DCK	Imperial	Steel	11/16 or 18mm	5/8-11	On Enquiry
CL-24-DCK CL-24-DCK	Imperial	Steel	5/8 or 16mm	3/8-16	On Enquiry
CL-9-DCK CL-9-DCK	Imperial	Steel	13/16	5/8-11	On Enquiry
CL-6-DCK CL-6-DCK	Imperial	Steel	11/16 or 18mm	1/2-13	On Enquiry
CL-2-DCK CL-2-DCK	Imperial	Steel	1/2	3/8-16	On Enquiry
CL-8-DCK CL-8-DCK	Imperial	Steel	3/4	5/8-11	On Enquiry
CL-4-DCK CL-4-DCK	Imperial	Steel	9/16 or 14mm	1/2-13	On Enquiry
CL-1-DCK CL-1-DCK	Imperial	Steel	7/16	3/8-16	On Enquiry
CL-7-DCK CL-7-DCK	Imperial	Steel	3/4	1/2-13	On Enquiry
CL-3-DCK CL-3-DCK	Imperial	Steel	9/16 or 14mm	3/8-16	On Enquiry
CL-21-DCK CL-21-DCK	Imperial	Steel	20mm	5/8-11	On Enquiry
CL-21-DCKN CL-21-DCKN	Imperial	Delrin	20mm	5/8-11	On Enquiry
CL-5-DCKN CL-5-DCKN	Imperial	Delrin	5/8 or 16mm	1/2-13	On Enquiry
CL-20-DCKN CL-20-DCKN	Imperial	Delrin	12mm	3/8-16	On Enquiry
CL-27-DCKN CL-27-DCKN	Imperial	Delrin	11/16 or 18mm	5/8-11	On Enquiry
CL-24-DCKN CL-24-DCKN	Imperial	Delrin	5/8 or 16mm	3/8-16	On Enquiry
CL-9-DCKN CL-9-DCKN	Imperial	Delrin	13/16	5/8-11	On Enquiry
CL-6-DCKN CL-6-DCKN	Imperial	Delrin	11/16 or 18mm	1/2-13	On Enquiry
CL-2-DCKN CL-2-DCKN	Imperial	Delrin	1/2	3/8-16	On Enquiry
CL-8-DCKN CL-8-DCKN	Imperial	Delrin	3/4	5/8-11	On Enquiry
CL-4-DCKN CL-4-DCKN	Imperial	Delrin	9/16 or 14mm	1/2-13	On Enquiry
CL-1-DCKN CL-1-DCKN	Imperial	Delrin	7/16	3/8-16	On Enquiry
CL-7-DCKN CL-7-DCKN	Imperial	Delrin	3/4	1/2-13	On Enquiry
CL-3-DCKN CL-3-DCKN	Imperial	Delrin	9/16 or 14mm	3/8-16	On Enquiry

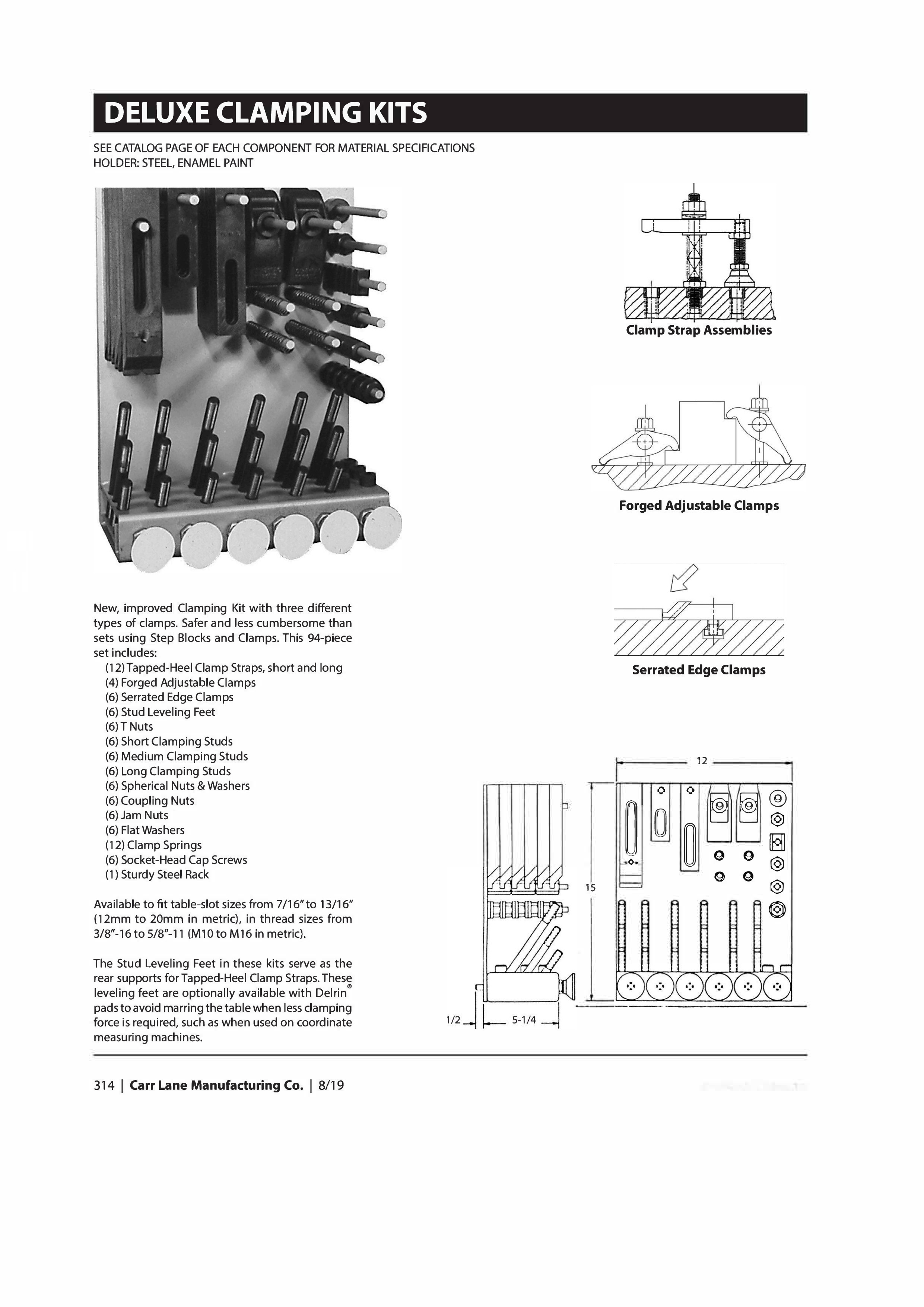

Carr Lane Deluxe Clamping Kits datasheet
