VT-SWMA-1-1X

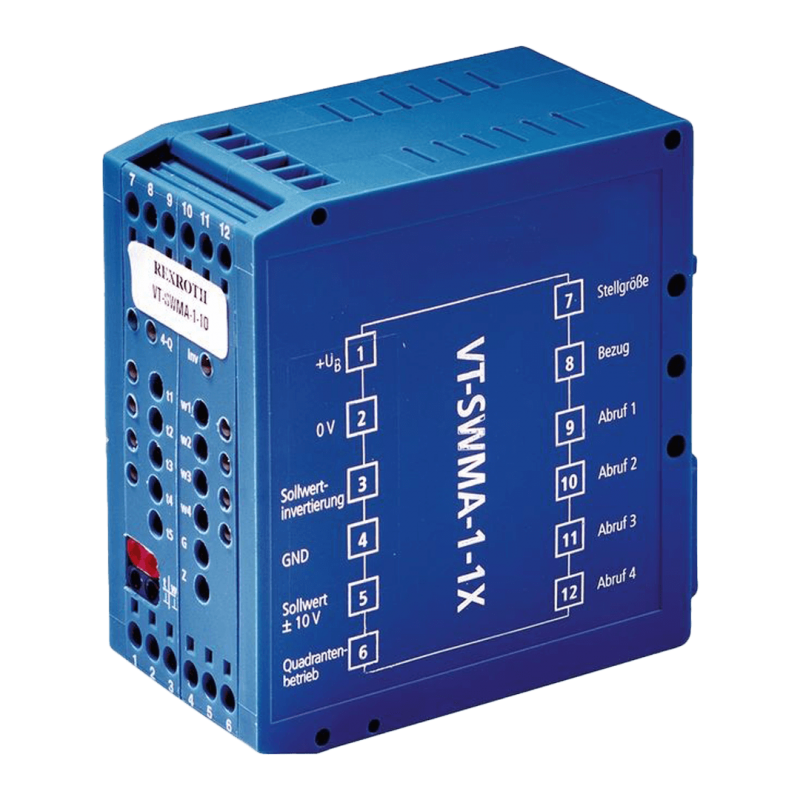

Bosch Rexroth Analog Command Value Module VT-SWMA-1-1X

• Component series 1X

Features:

• Suitable for controlling valves with integral electronics
• Possibility of realising simple hydraulic functions via digital controlling
• Adjustment elements:
  - 1 potentiometer for zero point adjustment (command value offset)
  - 1 potentiometer for command value attenuation (for differential input)
  - 4 potentiometers for command value preselection
  - 5 potentiometers for ramp time adjustment
• LED lamps:
  - Command value call-up (4 x)
  - Active ramp time (4 x)
  - Quadrant recognition
  - Polarity reversal
  - Power
• Measuring sockets for command value and ramp time
• Differential input
• 4 call-up possibilities each for command value and ramp time
• Ramp generator with 5 ramp times; 4-quadrant recognition
• Control signal output
• Power supply unit without raised zero point
• Without power part
